Home » Axial Capra 1.9 Unlimited Trail Buggy Kit

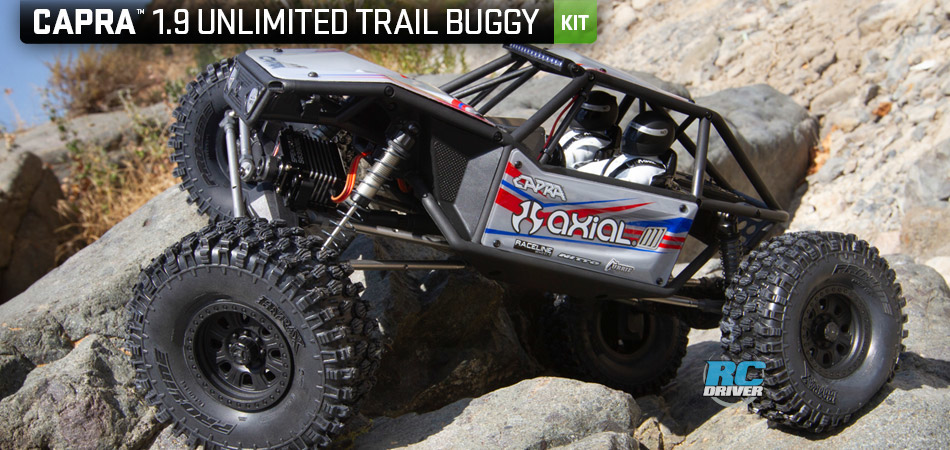

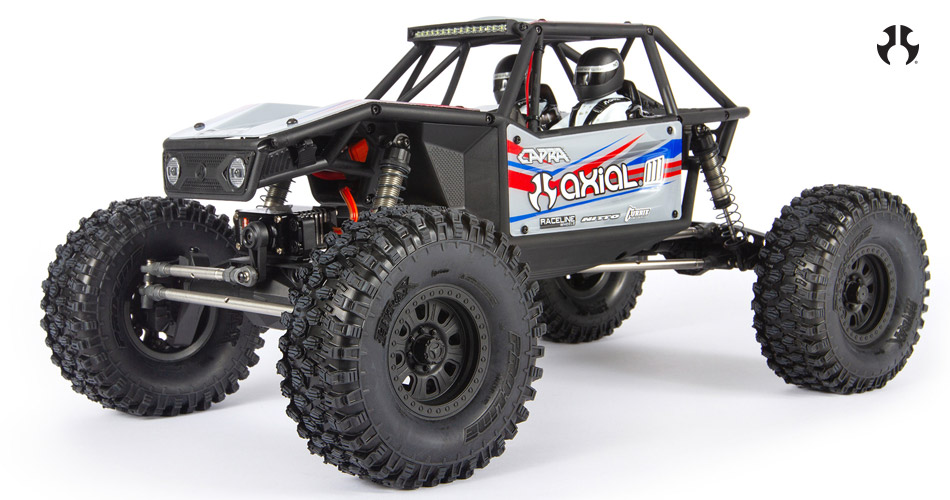

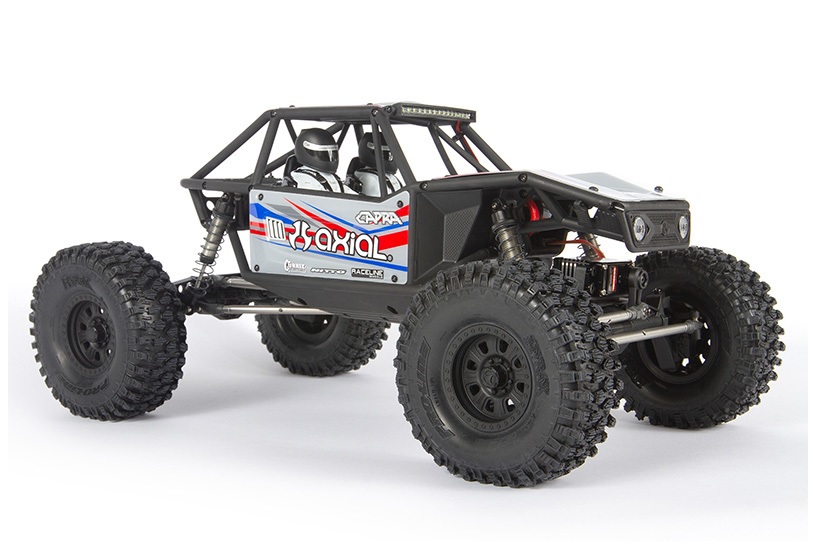

Axial Capra 1.9 Unlimited Trail Buggy Kit

We are pretty stoked with the release of the all new Axial Capra 1.9 Unlimited Trail Buggy. The Axial Capra Builder’s Kit for advanced drivers is engineered for cutting-edge crawling, with portal axles plus a transmitter-operated DIG function that allows a tighter turning radius. Just add your choice of electronics.

Axial Capra 1.9 Unlimited Trail Buggy Kit

OVERVIEW:

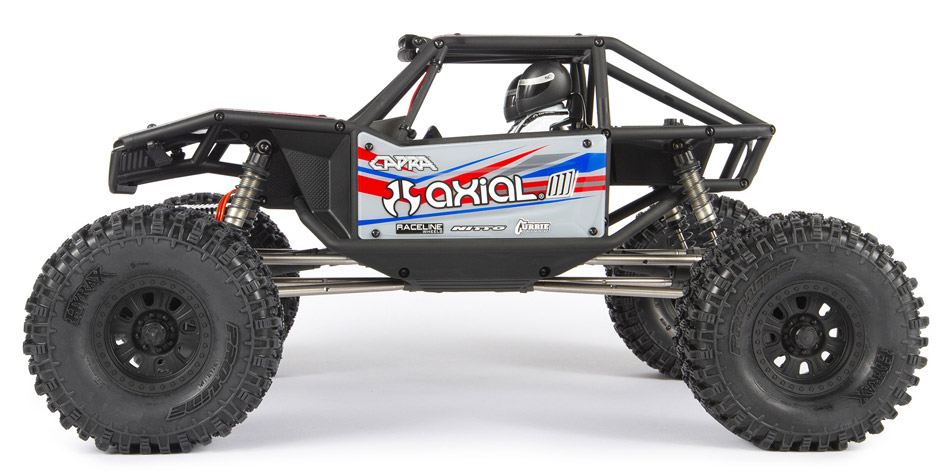

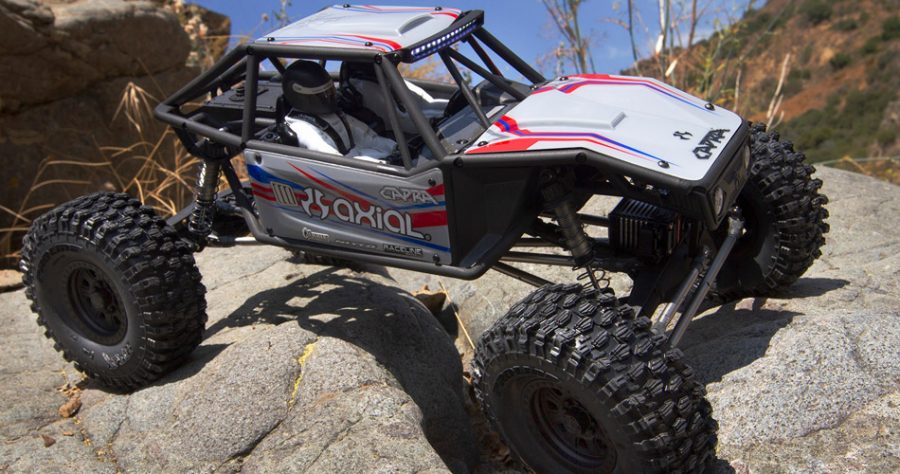

The Axial Capra 1.9 Unlimited Trail Buggy Builder’s Kit is a “new from the ground up” design that any advanced RC enthusiast eager for cutting-edge crawling will appreciate. Its Currie F9 Portal Axles provide extra ground clearance at the diff pumpkin for the best crawling performance. With the included DIG transmission, you can also switch on the fly between 4WD and FWD directly from your 3-channel transmitter – locking the rear axle whenever you need the tighter turning radius of front drive power. The Capra features a realistic tube chassis design and metal gears everywhere, from the center transmission to the lockers and portal axles. It rides on licensed Raceline 3-piece molded beadlock wheels that can be fitted with whatever 1.9 tires you prefer. For pioneering performance in an RC trail buggy kit, choose the Axial Capra.

Axial Capra 1.9 Unlimited Trail Buggy Kit

FEATURES:

  • Newly designed transmission with DIG function enables a tighter turning radius by locking the rear axle for FWD power only.

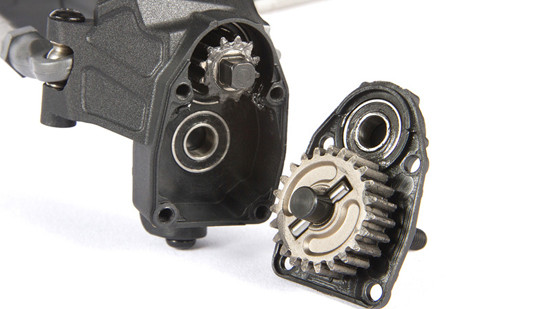

  • Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance.

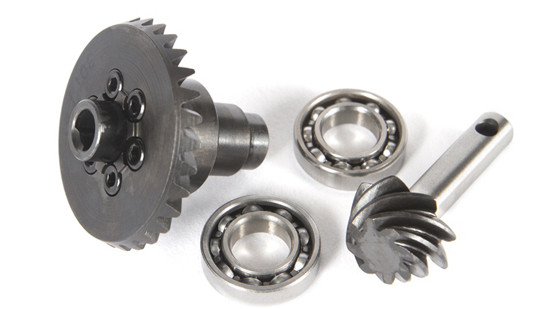

  • Includes all-metal gears, from the center transmission to the lockers and portal axles.
  • Tube chassis design offers optimum clearance plus realistic scale looks.

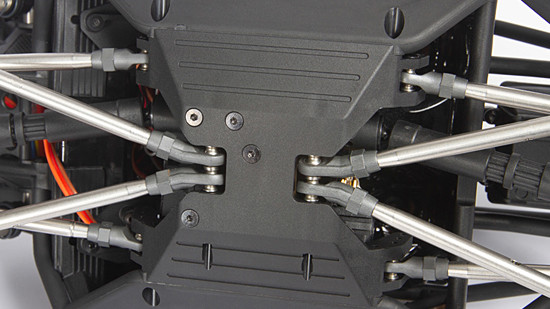

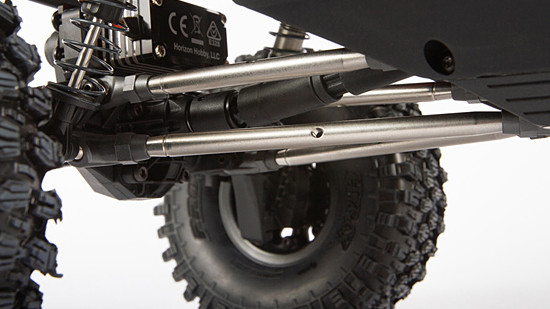

  • All pivot points are on stainless steel balls for a durable, long-lasting suspension point.
  • Includes injection-molded, 3-piece, licensed Raceline beadlock wheels.

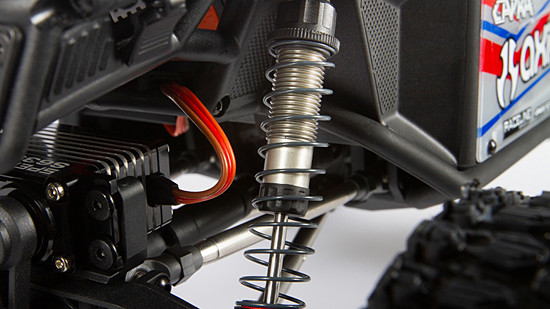

  • Adjustable oil-filled shocks feature hard anodized, threaded shock bodies, a single coilover spring, and a cap with a bleed port.

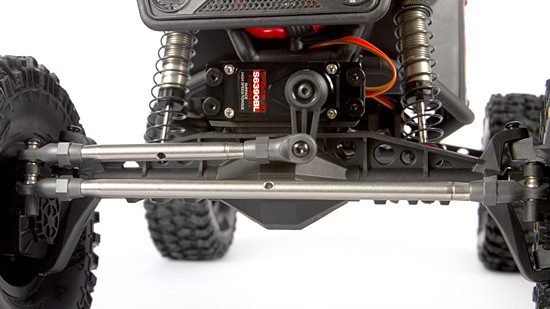

  • All-metal front universal axles provide smooth action and 45 degrees of steering angle for an efficient, high-performance drivetrain.
  • Durable, machined aluminum universal.

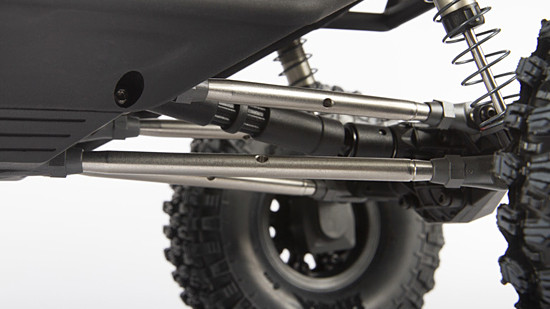

  • Finely tuned suspension geometry delivers the best crawling capabilities

Axial Capra 1.9 Unlimited Trail Buggy Kit

SPECIFICATIONS:

Length: 17″ (432mm)
Width: 10.25″ (260.35mm)
Height: 8.25″ (209.55mm)
Wheelbase: 12.5″ (317.5mm)
Weight: 4lbs (1.8kg)
Ground Clearance: 3″ (76.2mm)
Scale: 1/10
Internal Gear Ratio: 5.14:1
Final Drive Ratio: 37:1
Pinion Gear: 14T
Gear Pitch: 32
Front and Rear Track: 8.75″ (222.25mm) distance between outer edges of tires measured side-to-side
Wheel Diameter: 1.9″ (48.2mm)
Wheel Width: 1″ (25.4mm)
Battery Tray Dimensions: 1.02 x 3.8 x 1.8″ (26 x 98 x 47mm)
Servo Horn: 23T
Approximate Assembly Time: 7-9 hours



Axial Capra 1.9 Unlimited Trail Buggy Kit

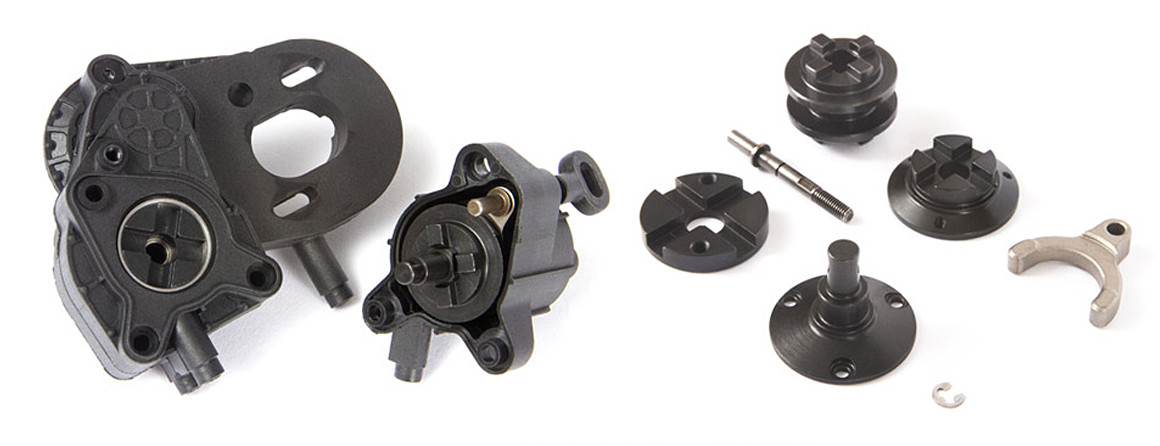

DIG TRANSMISSION – The new transmission has a DIG function that offers the tightest turning radius on a production crawler in the industry. When needed, simply switch from 4WD to front-wheel-drive by locking the rear axle from your transmitter. The transmission also includes a full set of ball bearings and all metal internal gears for strength and durability.
NOTE: Dig functionality requires an additional micro servo, not included. Micro Dig Servo SPMSSX107 (for Dig operation)







ACTION VIDEO OF AXIAL CAPRA:

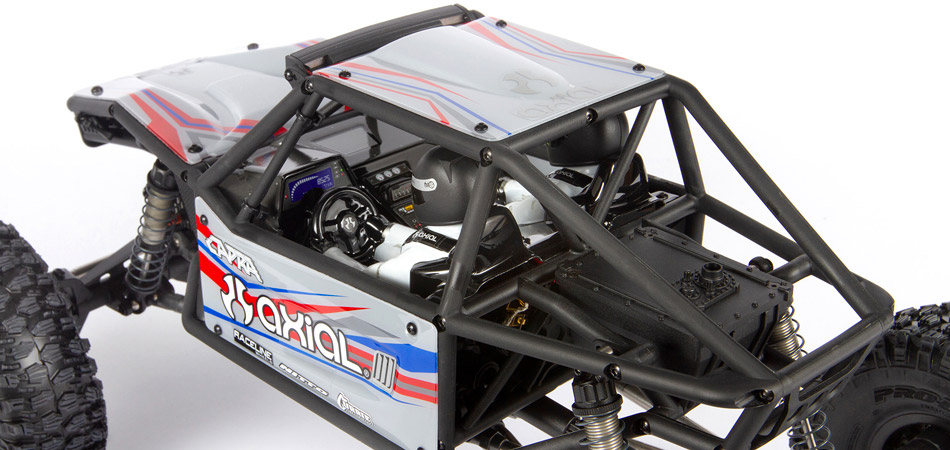

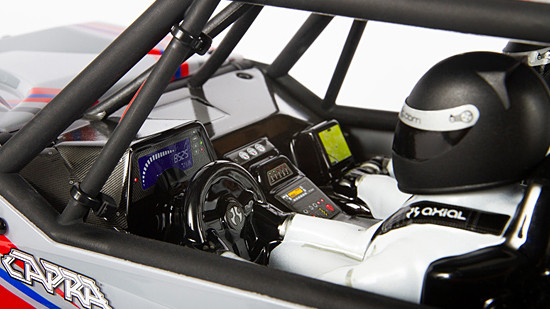

REALISTIC INTERIOR – Realistic scale details include: polycarbonate interior tray with molded driver figures, full color pre-cut decals with simulated carbon fiber panels, mock GPS navigation gauges and switches, two black styrene helmets with visor decals, and more



For more information, visit: AXIAL
