HobbyWing XeRun XR10 Pro ESC

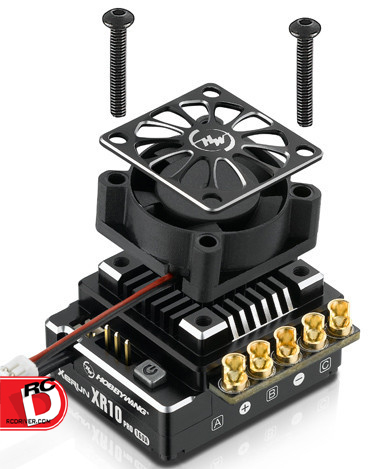

HobbyWing - XeRun XR10 Pro _1 copy

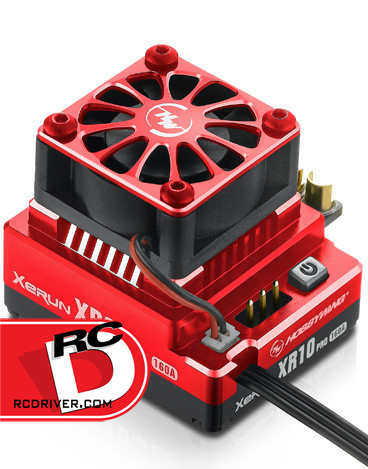

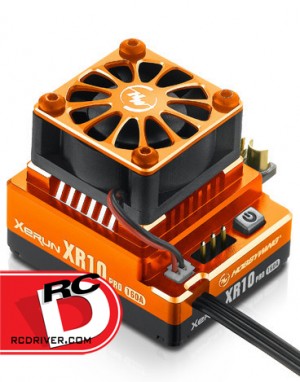

The latest offering from HobbyWing, the XR10 Pro is ideal for 1/10 applications boasts a 160A continuous and 1200A burst in current capabilities.  It is available in black, red and orange, can be used with 2S and 3S LiPo battery packs, comes with an efficient cooling fan and has a 6V/7.4V 4A BEC to feed high powered servos.

Specs –


Input wires (2) 12AWG-200mm
Output wires (3) 12AWG-200mm
a cooling fan
dual capacitors
Bonus parts: double tape, nylon cable zap traps
User’s manual

p/n – 30112600(Black) / 30112601(Orange)/ 30112602(Red)
Type – Scale: 1/10th | Brushless Sensored ESC
Cont./Peak Current – 160A/1200A
Power input – 2-3S LiPo/4-9 Cell NiMH
BEC output – Swich Mode:6V/7.4V,4A
Wire input – Black-12AWG-200mm*2
Wire output – Black-12AWG-200mm*3
Size – 37.5×30.9×31.6mm (w/Fan & Fan Shroud)
Weight – 95g(w/ Wires)
Cooling Fan – 25.0×25.0×10.0mm
Voltage Range – 5V-7.4V (powered by BEC)

Ideal for:

1/10th Touring Car & Buggy & Drift Car & F1; 1/8th,1/10th Rock Crawler

Brushless sensored motor KV Rating/T Count:

2S LiPo/6S NiMH: (Touring Car) T=3.5T, (Buggy) T=4.5T.
3S LiPo/9S NiMH: (Touring Car) T=6.5T, (Buggy) T=8.5T.

Click here for more info –
