New Revtech Graphene Battery Packs Now Available

New Revtech Graphene Battery Packs from Trinity are Now Available

Hot on the heels of the release of the 1S 3.8v 8000mah 110C “Graphene” LiHV HV Pack, Trinity has 4 new Graphene battery packs that are ready to help you win. Each Graphene LiPo battery is produced with higher grade safer materials, which results in longer battery life. The Graphene’s new assembly technology limits “cell puffing” resulting in a more durable and impact resistant battery. Packs come with heavy gauge universal receiver plug.

Here is what you need to know about these 4 new packs –

2S 7.4v 2500mah “Graphene” LiPo Flat Style Receiver & Transmitter Pack

rev2108_1

Battery Size 2 Cell Flat Pack
ROAR Approved – Pending
Battery Type – LiPo
Voltage – 7.4v
Capacity @7.4V – 2500mah
Capacity @7.6V – N/A
Weight 86g avg
Connector Type – Univ Receiver Plug
Balance Connector – XH Balance Lead
Number of Cells – 2
Dimensions – (LxWxH) (mm) 86x29x17 Flat
Maximum Charge Rate – 1C = 2.5amps
Continuous Discharge “C” – N/A
Watt Hour @7.4V – 18.50wh
Watt Hour @7.6V- N/A

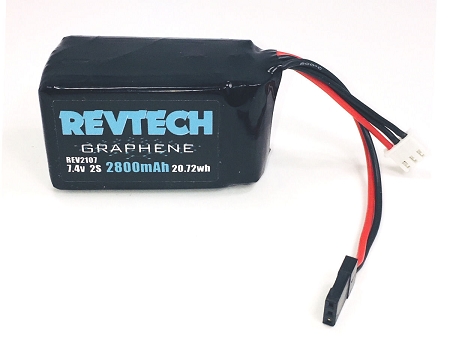

2S 7.4v 2800mah “Graphene” LiPo Hump Style Receiver Pack

rev2107_1
Battery Size – 2 Cell Hump Pack
ROAR Approved – Pending
Battery Type LiPo
Voltage – 7.4v
Capacity @7.4V – 2800mah
Capacity @7.6V – N/A
Weight – 104g avg
Connector Type – Univ Receiver Plug
Balance Connector – XH Balance Lead
Number of Cells – 2
Dimensions – (LxWxH) (mm) 59x32x31 Hump
Maximum Charge Rate 1C – 2.8amps
Continuous Discharge “C” – N/A
Watt Hour @7.4V – 20.72wh
Watt Hour @7.6V – N/A

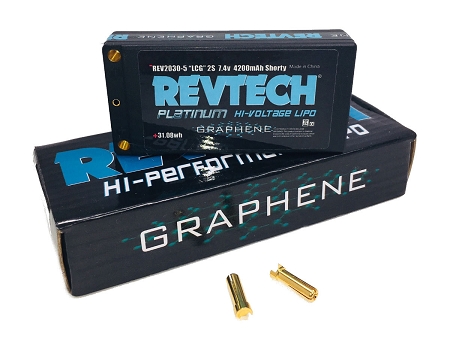

2S 7.4v 4200mah 110C LCG Shorty “Graphene” LiPo Hi-Voltage Pack With 5mm Bullets

rev2030-5_1

Battery Size – 2 Cell LCG Shorty
ROAR – Approved Pending
Battery Type – LiPo
Voltage – 7.4v
Capacity @7.4V – 4200mah
Capacity @7.6V – N/A
Weight – 192g avg
Connector Type – 5mm Bullets
Balance Connector – 2mm pin
Number of Cells – 2
Dimensions – (LxWxH) (mm) 96x47x22.6 LCG Shorty
Maximum Charge Rate – 1C = 4.2amps
Continuous Discharge “C” 110C
Watt Hour @7.4V – 31.08wh
Watt Hour @7.6V – N/A

2S 7.6v 6000mah 110C “Graphene” LiHV Hi-Voltage Pack With 5mm Bullets

rev2031-5_1

Battery Size – 2 Cell Standard
ROAR-  Approved Pending
Battery Type – LiHV
Voltage – 7.6v
Capacity @7.4V – N/A
Capacity @7.6V – 6000mah
Weight – 288g avg
Connector Type – 5mm Bullets
Balance Connector – 2mm pin
Number of Cells – 2
Dimensions – (LxWxH) (mm) 139x47x22.7
Maximum Charge Rate – 1C = 6 amps
Continuous Discharge “C”- 110C
Watt Hour @7.4V – N/A
Watt Hour @7.6V – 45.60wh
