X2 High Power Multi-Function Charger by Hitec

X2 High Power Multi-Function Charger by Hitec

The Hitec X2 High Power has dual inputs which allow for flexible battery charging at home and in the field. Hitec’s innovative power distribution mode lets you efficiently assign output power based on individual battery requirements, as well as the ability to distribute power to a DC output port to power even more devices. Capable of charging all battery chemistries (including the new generation LiHV), this powerhouse has a built-in 250-watt power supply, internal balancing circuits and 10 different charge/discharge profiles. The X2 High Power also features a highly unique and innovative Voice Guide function, helping you program your charger for unmatched performance capability. Expert charging made easy with Hitec!

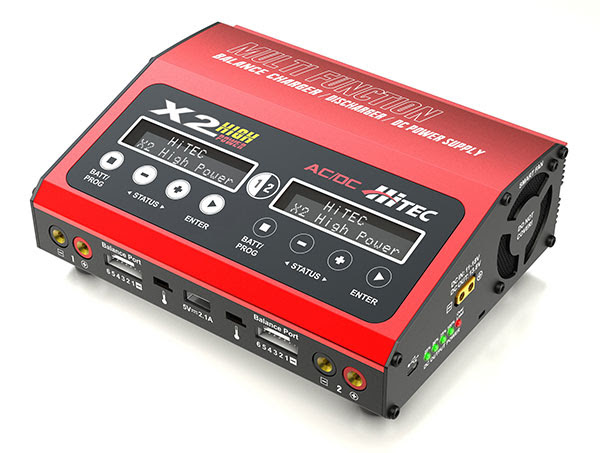

Hitec_X2_Charger

Features
Supports up to 6S Lithium Batteries
Voice Guide Function
Re-Peak Mode for NiMH/NiCd Batteries
Battery Voltage Meter
Battery Internal Resistance Meter
13.8 VDC Power Supply with Maximum 150 Watt Output
UBS Port for Firmware Upgrades
Two Channels Charge Two Different Battery Types Simultaneously
Charge Power Distribution
Available Synchronous Mode
Specifications
AC Input: 100-240 Volts AC
DC Input: 11-18 Volts DC
Charge Circuit Power (CH1 + CH2 + PS = 250W):
– Channel 1: 50-120 Watts AC Input
– Channel 2: 50-120 Watts AC Input
10-150 Watts DC Output
Charge Current Range: 0.1 – 10.0 Amps x 2
Discharge Current Range: 0.1 – 2.0 Amps x 2
Discharge Current Power: 10 Watts x 2
Current Drain for LiPo Balancing: 300mA per Cell
NiCd/NiMH Cell Count: 1-15 Cells
LiPo/LiHV/LiFe/LiIon Cell Count: 1-6 Cells
Pb Voltage: 2-20 Volts
Dimensions: 7.24 x 5.74 x 2.75 in. (184 x 146 x 70mm)
Weight: 2.85 lbs. (1293g)
