HB Racing D2 Evo 1/10 Competition Electric 2WD Buggy

One of the sweet vehicle announcements this week is that the HB Racing D2 Evo 1/10 competition electric 2WD buggy is now ready to ship.

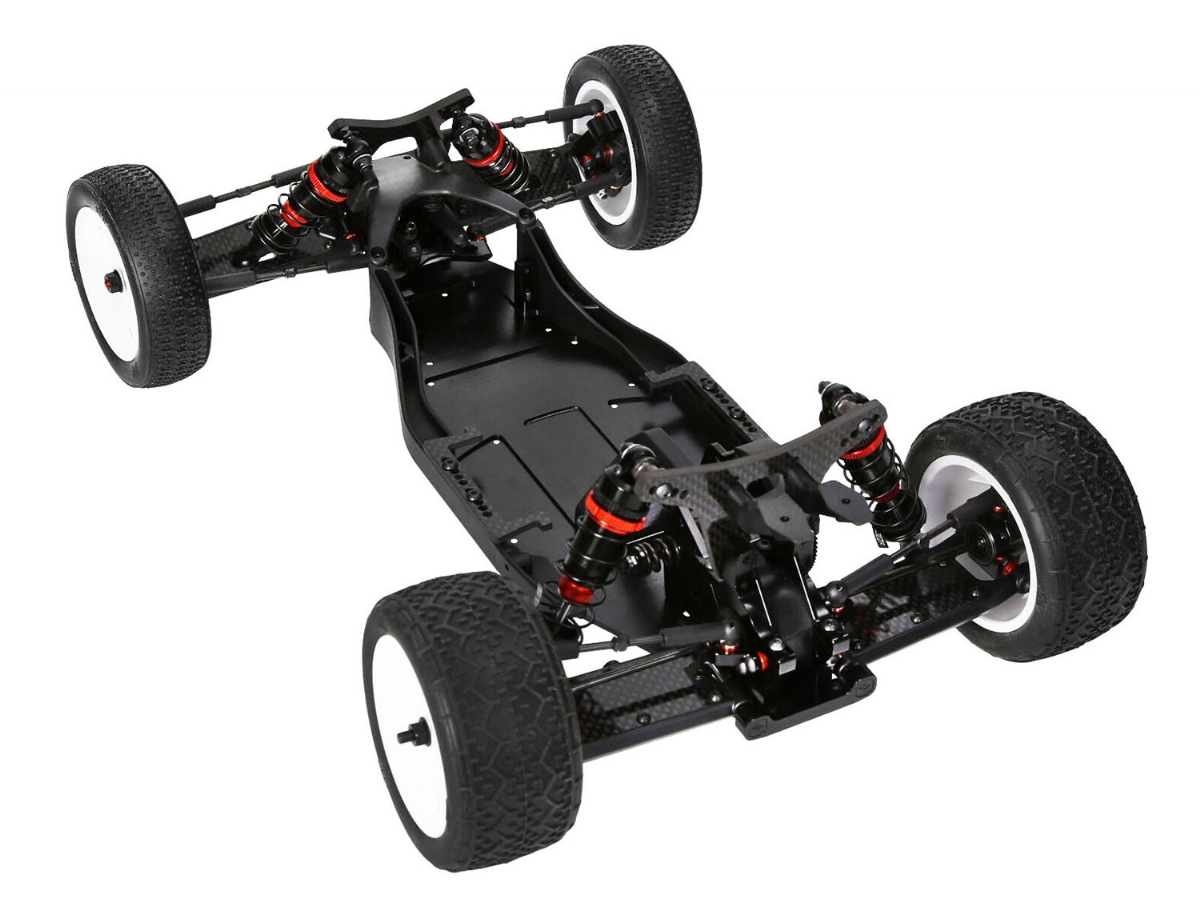

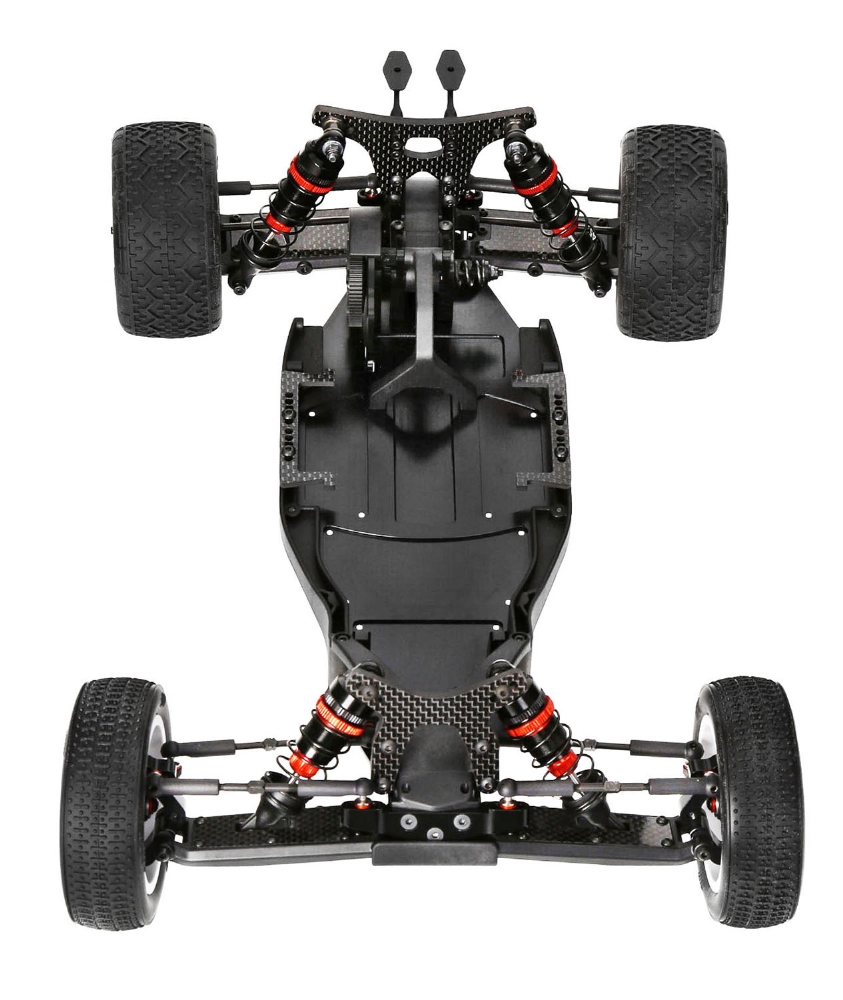

HB Racing D2 Evo 1/10 Competition Electric 2WD Buggy



OVERVIEW

HB Racing D2 Evo 1/10 Competition Electric 2WD BuggyThe D2 Evo was designed for total adjustability. Out of all the RC car racing categories, the 1/10 scale off-roaders are the most difficult to design because they race on a wide range of track surfaces, utilize a wide variety of tires and even different tire sizes. As shown in the list of features, the D2 Evo covers that range. HB Racing has also implemented design features from their other kits to enhance this car, like machined aluminum components for higher precision and durability, monocoque suspension arms which have been a staple of HB off-roaders for the past decade, and droop screws which are ubiquitous in 1/8 scale but should add a level of convenience for 1/10 2WD.

HB Racing D2 Evo 1/10 Competition Electric 2WD Buggy

FEATURES

  • HB Racing D2 Evo 1/10 Competition Electric 2WD BuggyAluminum front arm mounts with optional adjustable kickup

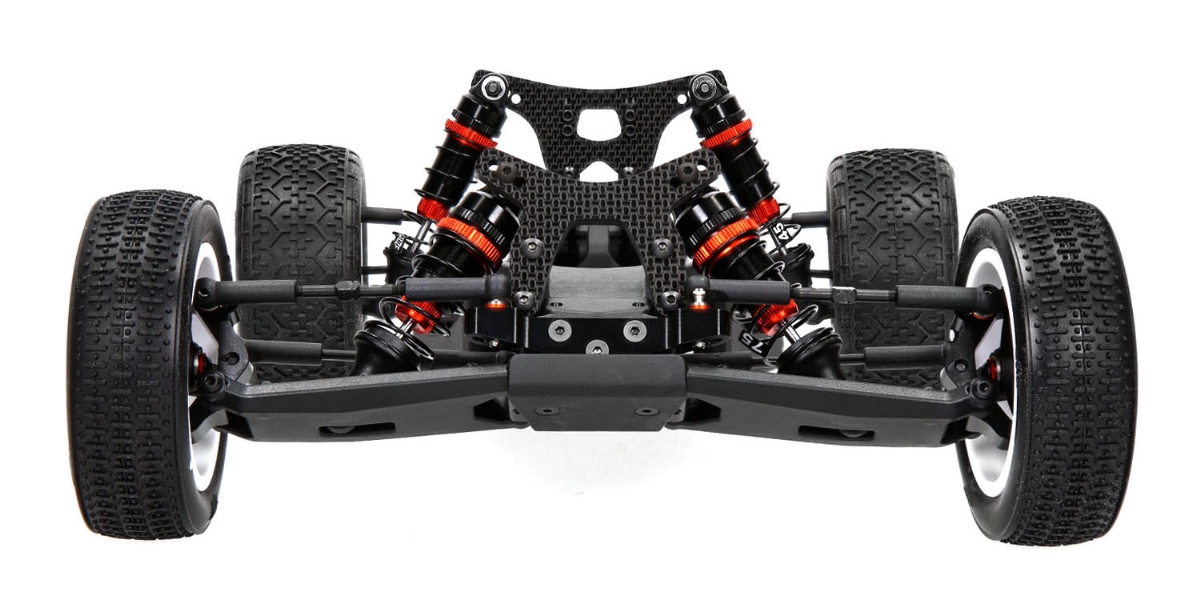

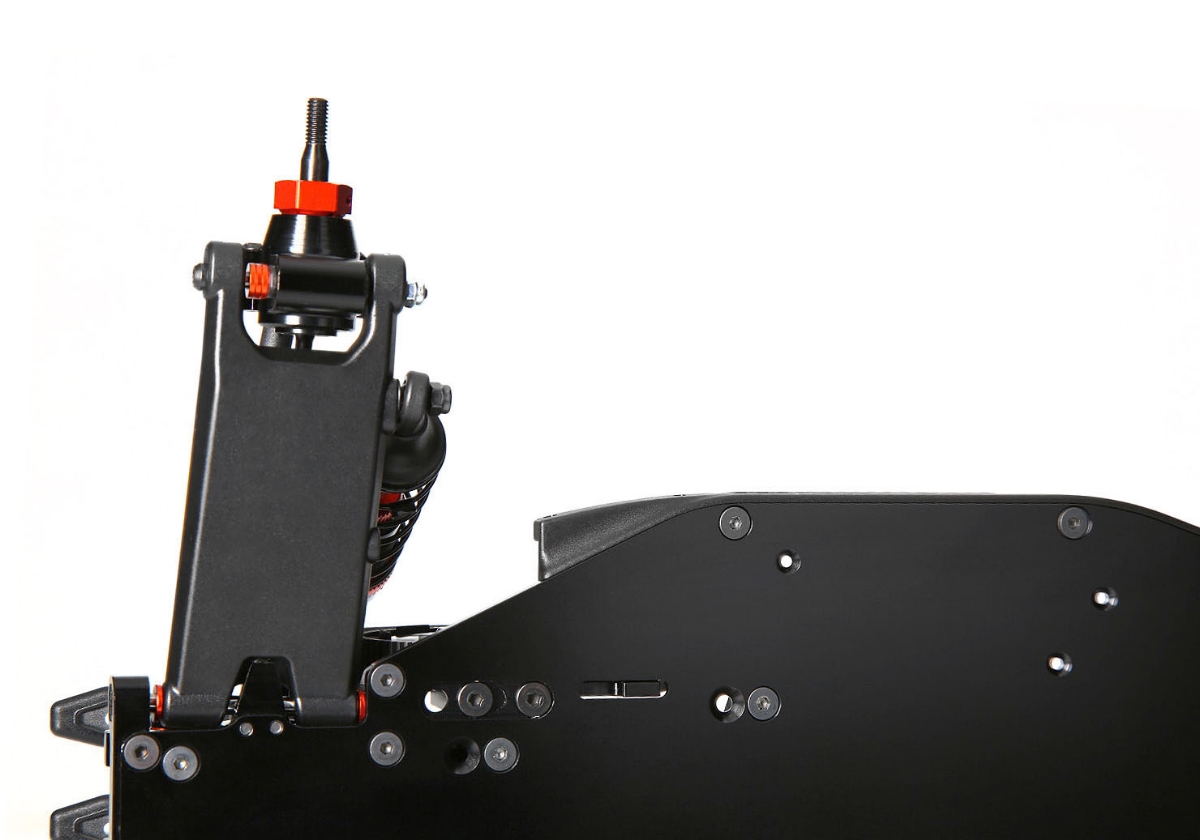

  • Monocoque suspension arms with carbon fiber inserts as pioneered by HB in 1/8-scale and 1/10 4WD Gullwing suspension arm design front and rear
  • Aluminum caster blocks with caster adjustment bushings included
  • Adjustable Ackermann geometry with optional steering hub arms
  • Adjustable droop setting via droop screws similar to 1/8 scale buggies
  • Ball bearing supported steering bellcranks with aluminum steering rack

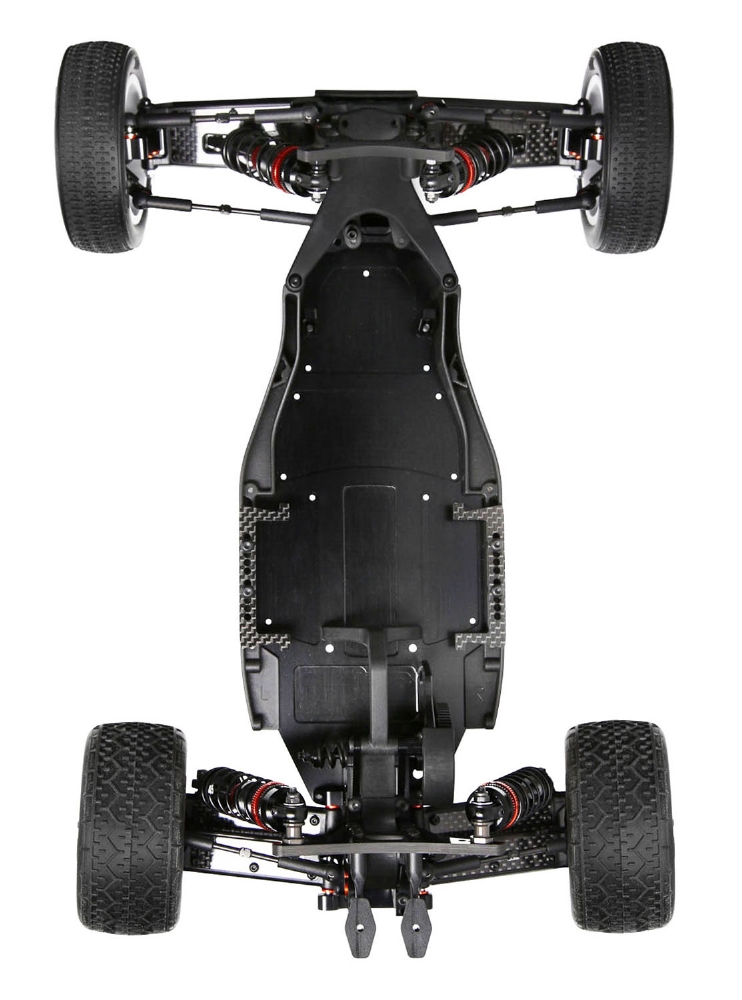

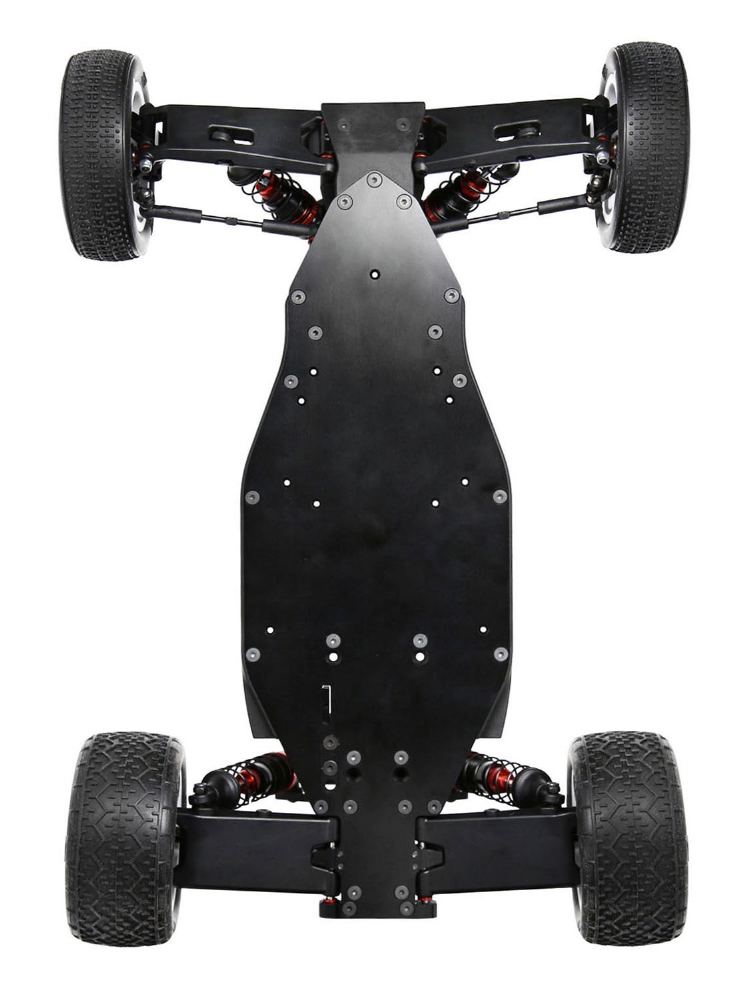

  • Flat plate aluminum chassis and optional materials like carbon fiber can be used depending on racing conditions
  • Adjustable battery position with quick change 0-ring retainers
  • Motor cooling fan mounts built into the sideguards

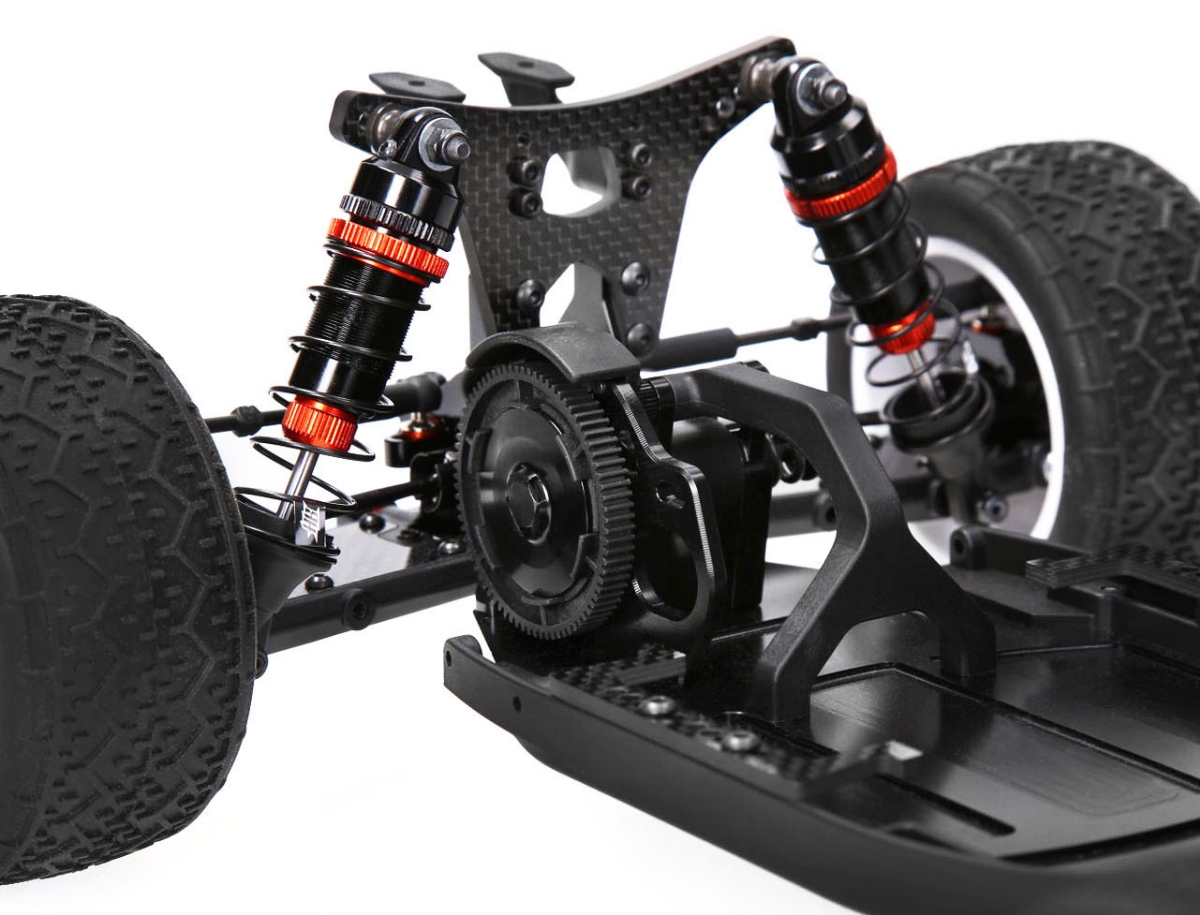

  • Dual disc adjustable slipper clutch

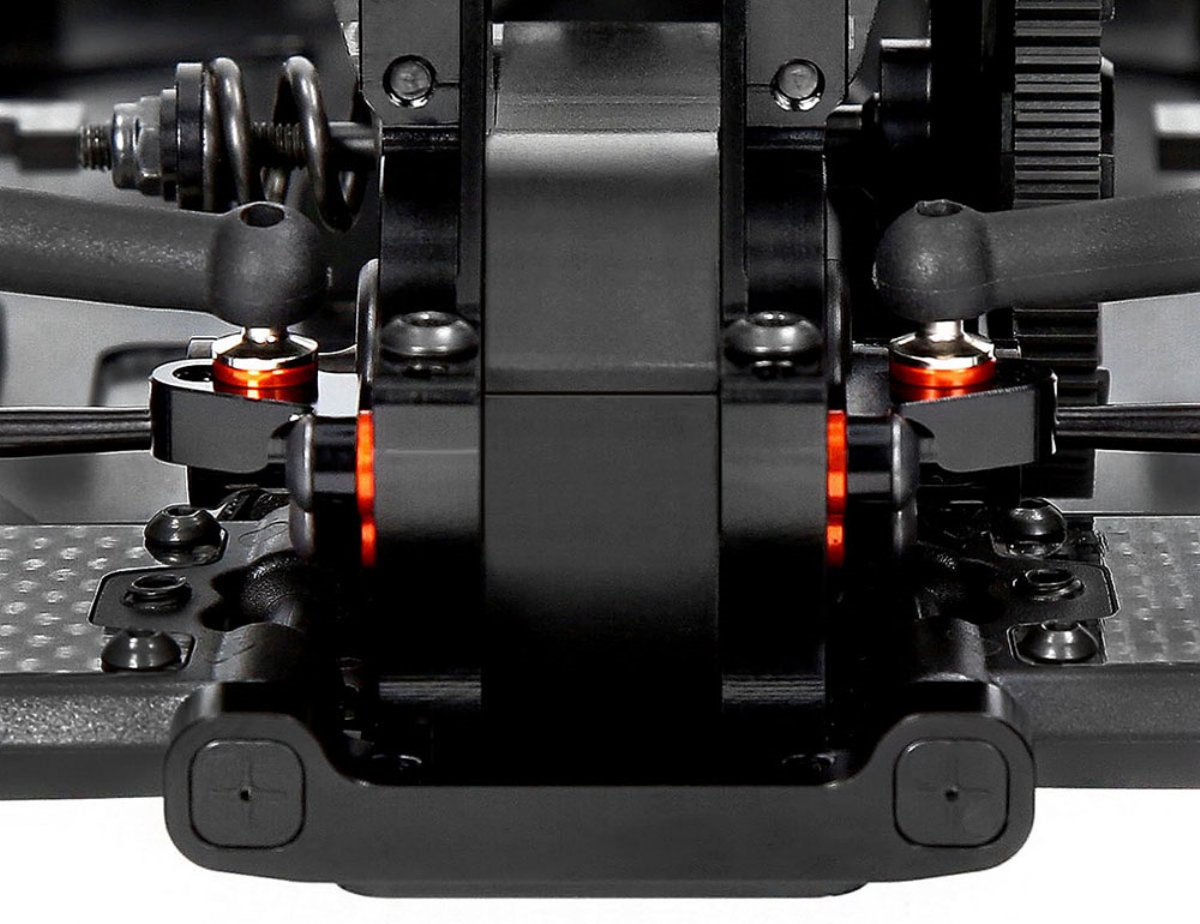

  • Machined aluminum gearbox with 3-gear laydown configuration
  • Easy access differential (ball and gear diff available)
  • Aluminum rear hubs with inserts for various hinge pin heights

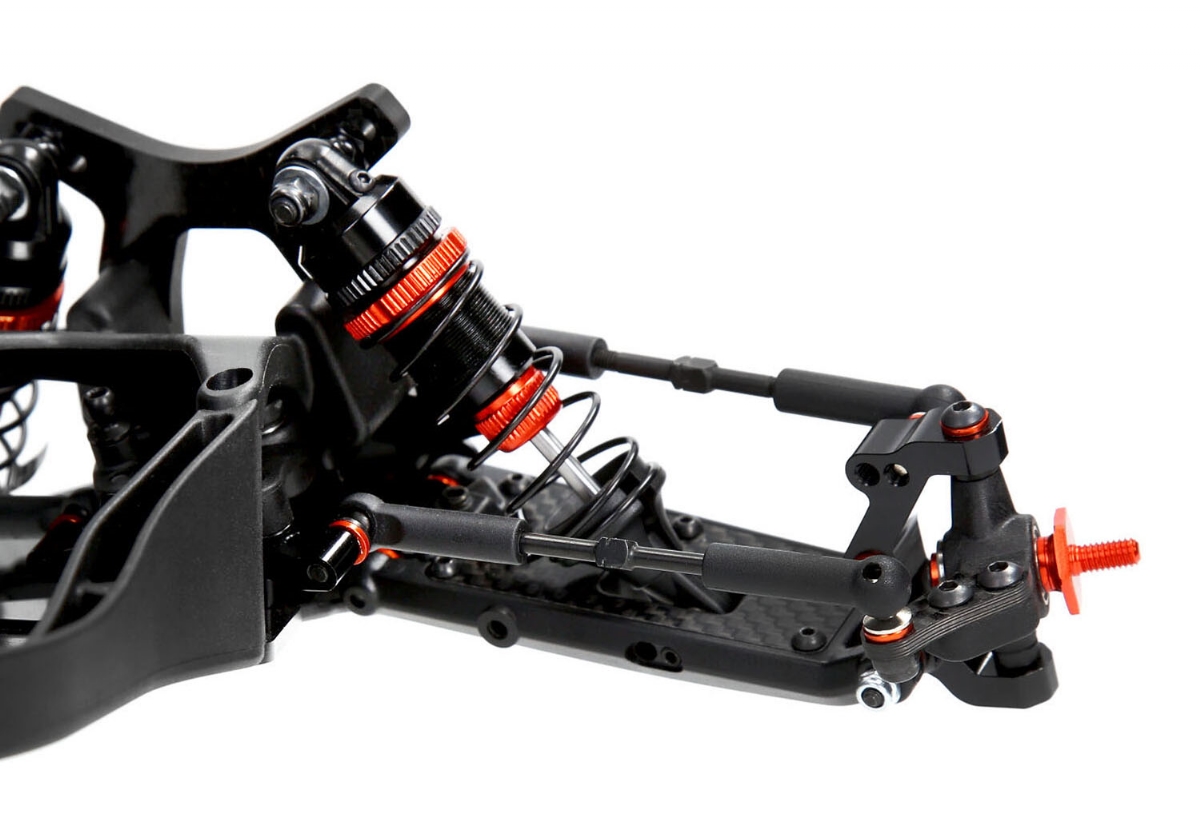

  • Fully adjustable camber link position using spacers
  • Both inboard and outboard camber mounts can be finely adjusted up and down as well as inward and outward
  • Clamping aluminum wheel hex drives
  • Arm mount inserts for toe-in and anti-squat adjustment

For more information, visit: HB RACING
