Destiny Racing RX-10F 3.0 FWD 1/10-scale Competition Touring Car

Check out all the features incorporated into the new Destiny Racing RX-10F 3.0 FWD 1/10-scale competition touring car.

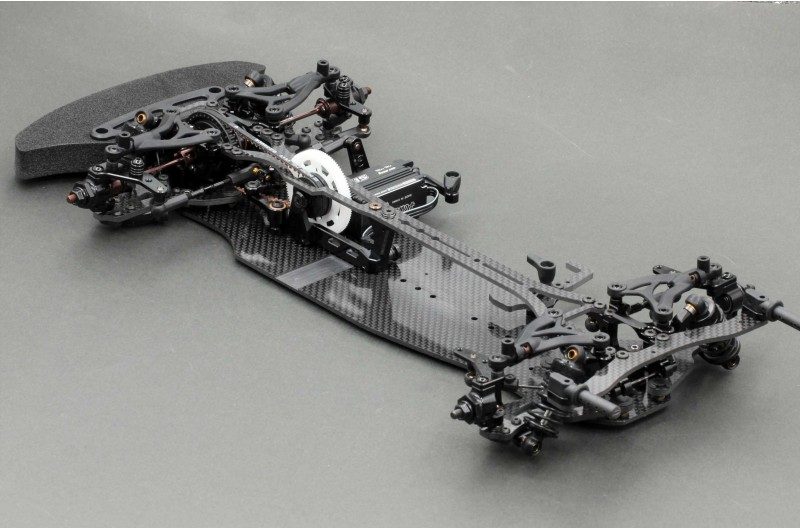

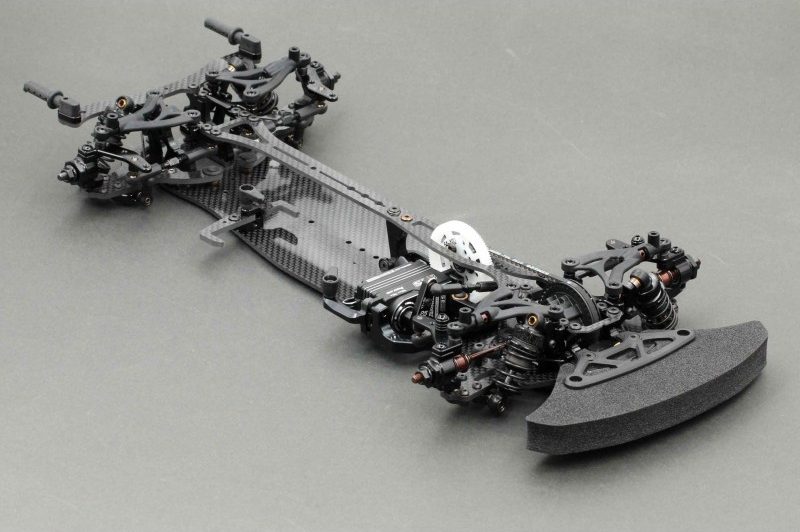

Destiny Racing RX-10F 3.0 FWD 1/10-scale Competition Touring Car

NEW 3.0 FEATURES

  • Destiny Racing RX-10F 3.0 FWD 1/10-scale Competition Touring CarNew graphite rear lower arm for increased rear caster.

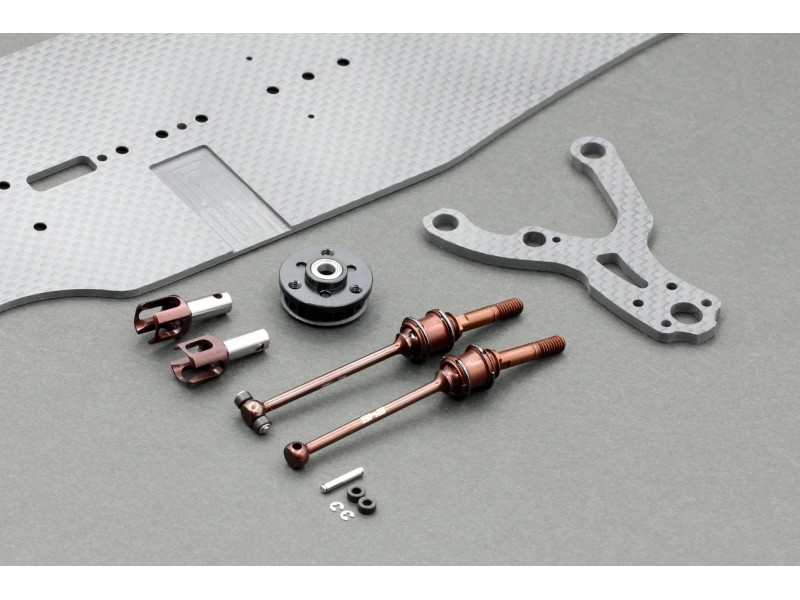

  • New spring steel front metal bushing double joint drive shaft.
  • New interchangeable front and rear upper aluminum bulkheads. Front caster 4/5 deg, rear caster 5/4 deg adjustable by different orientation of bulkheads.
  • New lower bulkheads install with upper bulkheads with centering insert.
  • New aluminum adjustment ball bearing hub.
  • New motor mount with Multi-Flex Chassis adjustment.

  • Low friction drive belt (78T).
  • New lightweight alum solid layshaft. Easy spur gear removal.
  • New 38T gear differential with spring steel differential cup.
  • New 7075 aluminum steering center plate and steering arms with ball bearings.
  • 7075 aluminum lightweight low profile floating servo mount.
  • Swap the graphite battery holders to change the battery forward/backward position.
  • Quick release battery backstop and height adjustable to be compatible with different size batteries.

FEATURES

  • Interchangeable 3mm graphite lower arm for left and right.
  • Smooth movement suspension with hard coated 5mm lower arm pivot balls and high-quality bushing.
  • Graphite lower arm length (track width) is adjustable by changing the orientation of the steering block pivot ball holder.
  • Front and rear aluminum lower shock mount.
  • Front and rear steering blocks made of high grade 7075 aluminum and are interchangeable.
  • Front and rear steering plate swap for two different steering response setups.
  • Large size 6x11x4mm ball bearing used in inner of steering block to be reliable and efficient.
  • Mounted the pivot balls with screws through a groove and a thread on bulkhead. Upper arm free movement is adjustable for active caster setting simplicity.
  • Laser engraved marking on bulkhead for easy identify differential position.
  • Lower position of front and rear anti-roll bar mounting.
  • Shock tower composed by two pieces, easy installation and tweak free alignment.
  • Precise shock angle adjustment with shim.
  • Shock tower mounted to chassis for more stability and improved the traction.
  • 7075 aluminum lightweight hardened wheel hub.

For more information, visit: DESTINY RACING
