Hitec RDX2 1000 Charger & AD350 Analyzer Discharger

Hitec has clearly been busy with all of the releases they have been dropping. Here is the Hitec Hitec RDX2 1000 charger & AD350 analyzer discharger.

Hitec RDX2 1000 Charger & AD350 Analyzer Discharger

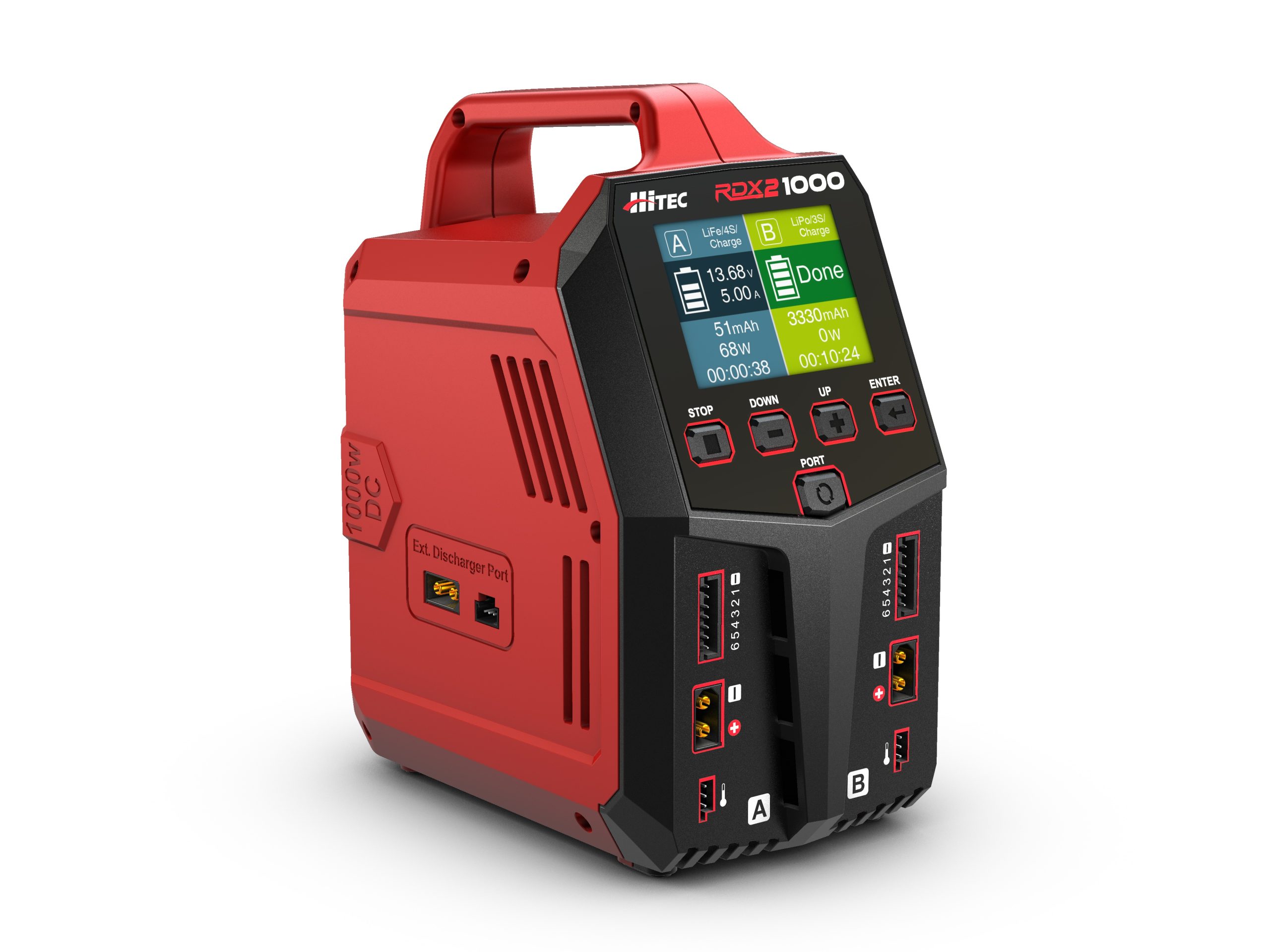

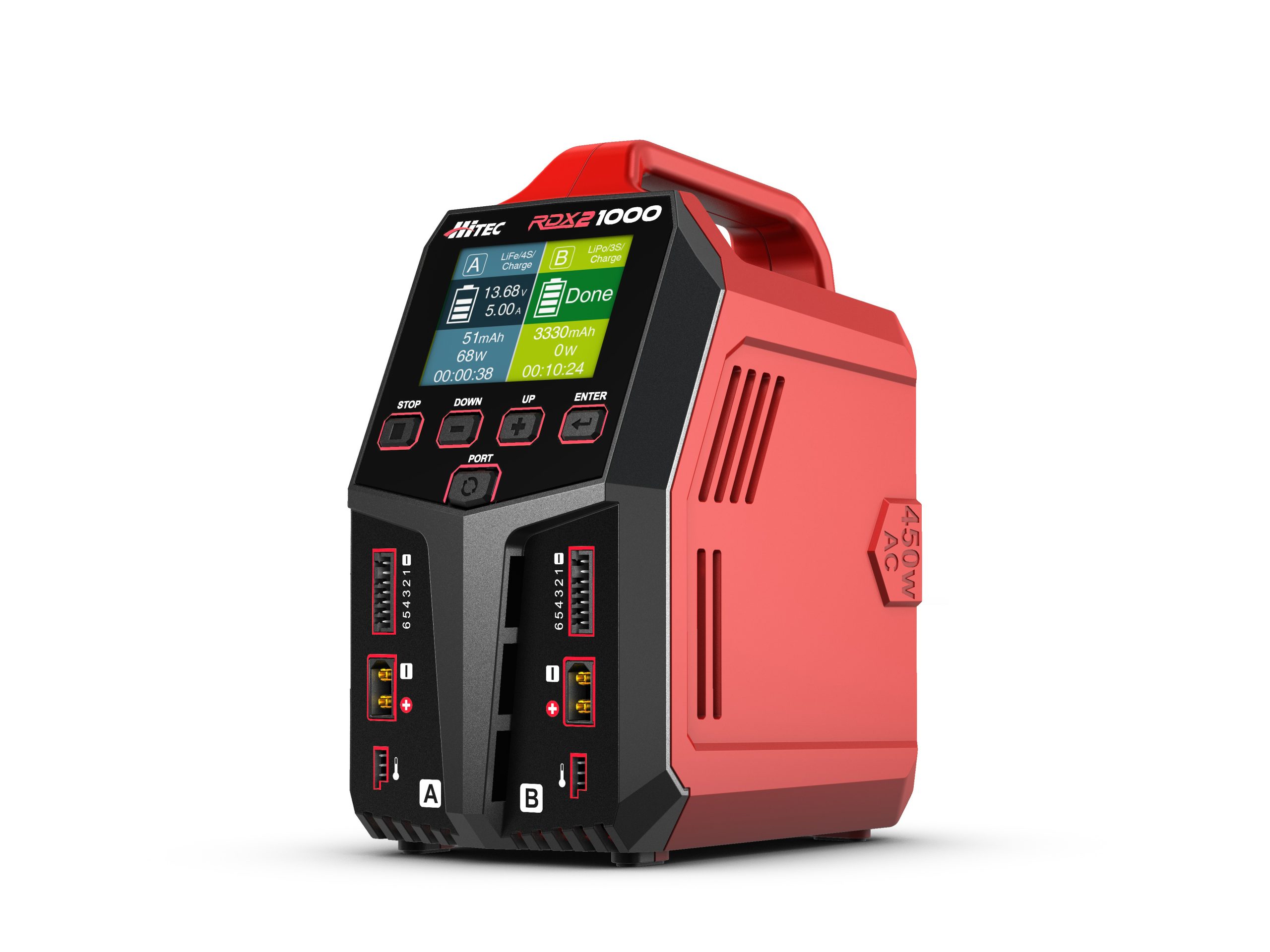

RDX2 1000

AC/DC DUAL PORT CHARGER / DISCHARGER / POWER SUPPLY

With a sleek modern design and easy-to-transport handle, the RDX2 1000 is the AC/DC powerhouse you need to charge your high-capacity battery packs at rapid rates. The dual output ports each offer 20 amps of power to simultaneously charge two batteries of any chemistry; or, you can pair the outputs to charge at rates up to 35 amps.

The RDX2 1000 features an easy-to-use LCD interface display and handy push button controls, while the front-panel XT60 connectors and XH balance ports help keep wiring uncluttered. Its high charge and discharge rates for lowering resistance and improving power make it perfect for Stock Class racers. Accepting both 12V DC, and 100 – 240 volts AC, the RDX2 1000 is ideal for charging at home or in the field, and perfect for all hobbyists needing ultra-fast charging of their larger battery packs. Internal circuitry allows discharge rates up to 2 amps, and 40 amps when paired with the companion AD350 discharge module (sold separately). Estimated street price of $279.99.

RDX2 1000 KEY FEATURES

  • Hitec RDX2 1000 Charger & AD350 Analyzer DischargerUser-Friendly Interface
  • Balance, Standard, Storage and Cycle Modes for All Lithium Battery Chemistries
  • Battery Meter
  • Internal Resistance
  • Terminal Voltage Control
  • Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
  • Capacity Cut-Off Limit
  • Smart Ventilation Fan
  • Intelligent Power Distribution Between Ports
  • USB-C Socket for PC Interface and Firmware Upgrades
  • Programmable Power Supply Function 5-27V / 1-15A
  • Tire Warmer Power Supply Output (16V/8A)

RDX2 1000 TECHNICAL SPECIFICATIONS

Hitec RDX2 1000 Charger & AD350 Analyzer Discharger

  • 100V – 240V AC Operating Voltage Range
  • LiPo, LiFe & LiIon Cell Count: 1-6 Cells
  • NiCd/NiMH Cell Count: 1-15 Cells
  • Pb Lead-Acid Based Cell Count: 2-20 Volts
  • Charge Circuit Power: 450W AC / 1000W DC
  • Discharge Circuit Power: 10W (350W w/ AD350 Discharge Module)
  • Charger Current Range: 0.1A – 20A x 2 / 0.1A – 35A Parallel
  • PC Interface with Downloadable Software
  • 12V Power Supply Mode Runs other Devices
  • Dimensions: 7.5 x 6.0 x 3.9 in. / 190 x 152 x 99mm
  • Weight: 3.0 lbs. / 1.36kg

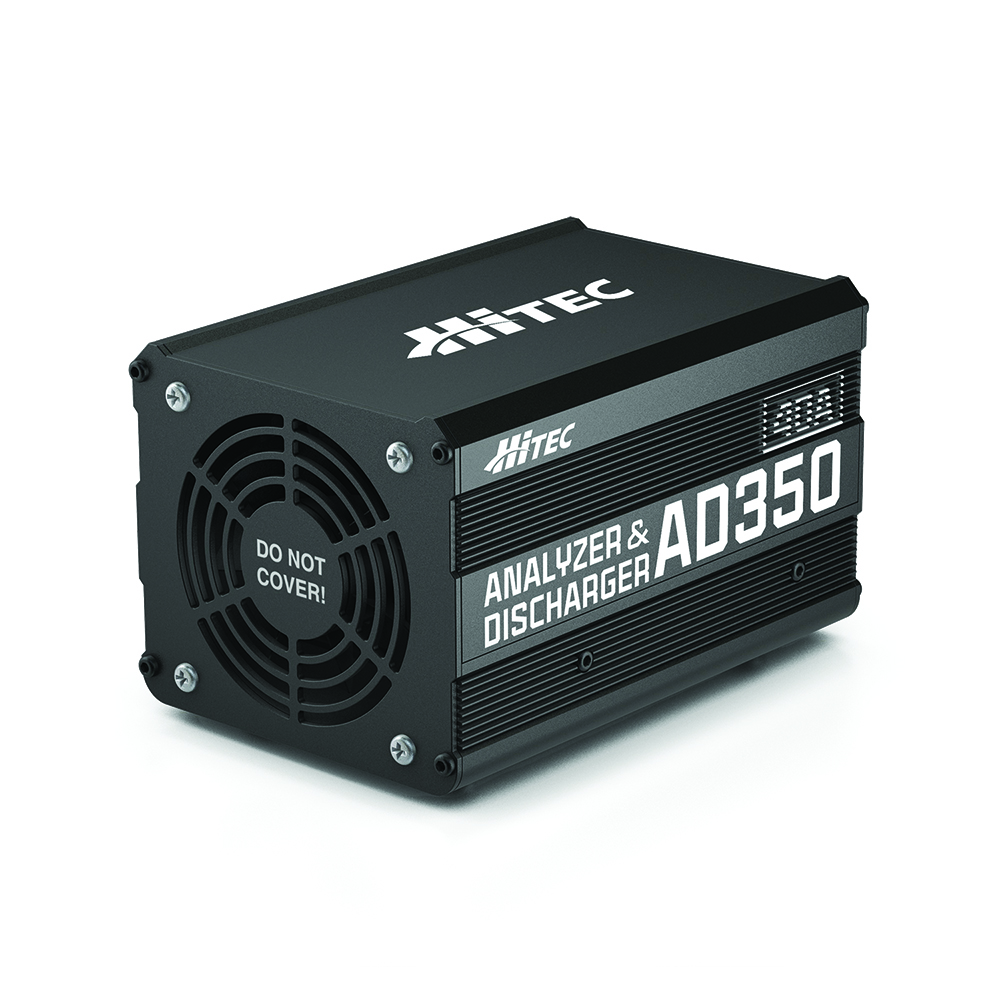

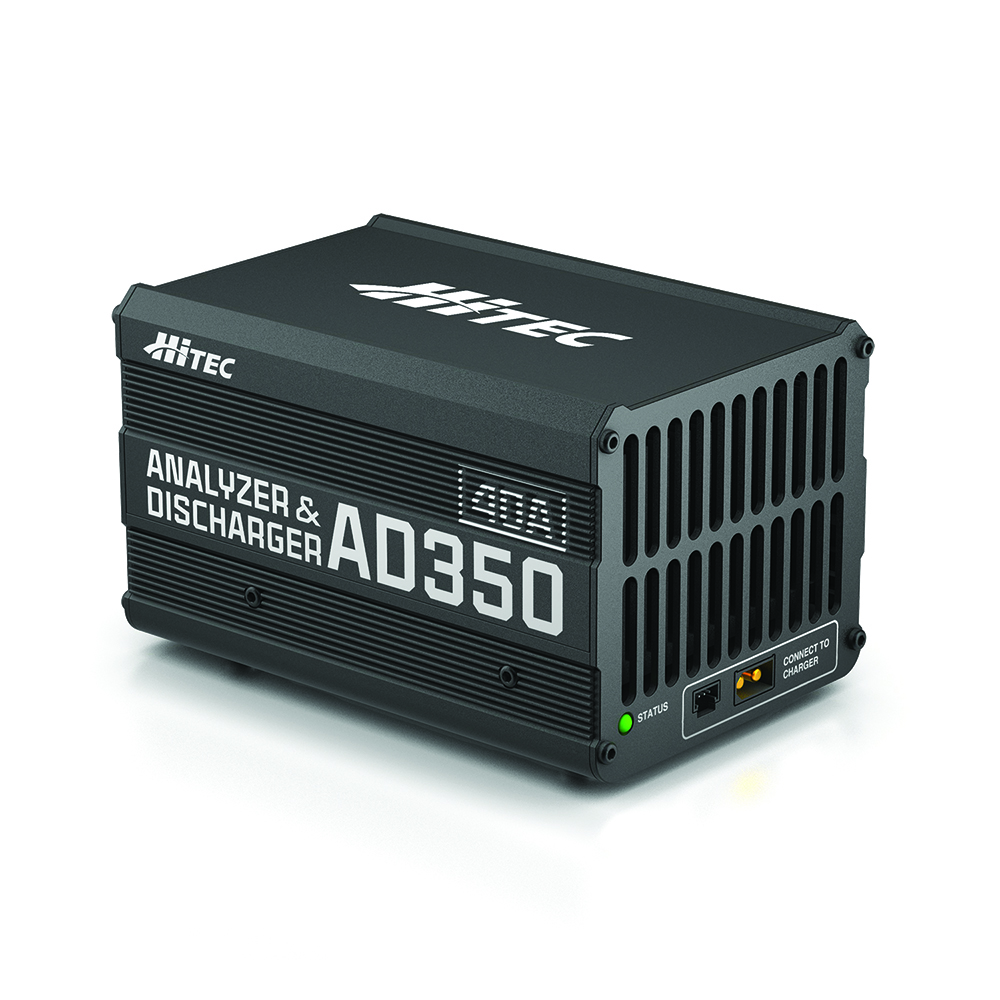

AD350

ANALYZER & DISCHARGER

Hitec RDX2 1000 Charger & AD350 Analyzer DischargerThe high-power AD350 is ideal for discharging and analyzing both Nickel and LiPo batteries. Its PC interface and higher capacity offer extended capability and convenience to help you maintain ultimate battery performance. Estimated street price of $149.99.

AD350 KEY FEATURES

  • High-Power Analyzer Discharger for Cycling NiCd/ NiMH & LiPo Batteries
  • PC Interface with Downloadable Analyzing Software
  • All Aluminum Case with Built-in Fan

AD350 TECHNICAL SPECIFICATIONS

  • Discharge Power: 350W
  • Discharge Current: 0.1-40.0A
  • Over Temp. Protection: > 203ºF
  • Working Temp.: 32º ~ 104ºF
  • Dimensions: 6.2 x 4.1 x 3.7 in. / 158 x 104 x 94mm • Weight: 2.7 lbs. / 1.22kg







For more information, visit: HITEC
