Innovative! ORCA’s Blinky B32 LCG ESC

Innovative! ORCA’s BLINKY B32 LCG ESC

ORCA’s BLINKY B32 LCG Electronic Speed Control represents another engineer-designed product unveiled for N. America’s popular R/C STOCK Classes. Available in black color, ORCA’s BLINKY B32 LCG ESC will start to appear in Hobby Shops across N. America before the Holidays. Forefront in design, ORCA’s BLINKY B32 LCG ESC misses nothing. Weighing in at a mere 27g* and sleek slim aluminum casing of 14mm in height, it can virtually fit in any On-Road and Off-Road R/C vehicles. Together with ORCA’s BLINKY EXTREME MOTORS, the BLINKY B32 LCG ESC lays down a new benchmark for RC STOCK CLASSES in terms of performance, speed, smoothness, drivability at affordable prices.

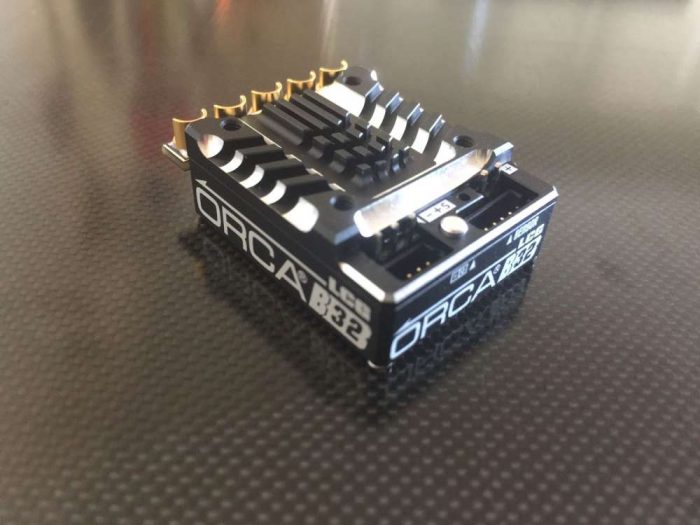

B32 LCG-2_Orca_Blinky_ESC

Features & Specifications
♦ CPU : Advanced High Speed 32bit
♦ Optional 19 Programmable Functions with ORCA’s latest R32 Program Card (Part No. : OPC332PB sold  separately)
♦ Continuous Current : 100A
♦ Maximum Current : 400+A
♦ Power Input : 2S Li-PO / 6 Cells Ni-MH or Ni-CD / 2S Li-FE
♦ BEC Input : 6V / 7 V 5A (for higher performance)
♦ Capacitor : ORCA Premium Capacitor
♦ Cooling Fan : 25x25x10mm High Speed Fan
♦ Motor Application : Sensored Brushless Motor ONLY
♦ Motor Limit : 10.5T
♦ 2 Motor Rotation Actions : Clockwise / Counter-Clockwise
♦ BLINKY Mode Specially engineered for STOCK CLASS Spec. Racing (no turbo, no boost, no electric timing adjustments)
♦ Push Button Power Switch
♦ LCG(Low Center Gravity) all Aluminum Casing Design on BLINKY B32 ESC is ultra low resistance design
♦ Dimension(LxWxH) : 36x 30x14mm
♦ Weight : 27g*
♦ Pending ROAR Approval
♦ Designed to pass ROAR ZERO TIMING Regulation

ORCA’s BLINKY B32 LCG Electronic Speed Control offers optional 19 Programmable Functions with their latest R32 Program Card (sold separately)

19 Programmable Functions (ORCA R32 Program Card required)
♦ 2 ESC Motor Links : A+B-C / C+B-A
♦ 5 Punch Levels : 1 – 15
♦ PWM : 2000Hz – 32000Hz
♦ Dragbrake : Off – 30%
♦ Compress : Off – 50%
♦ Punch Fine Tune : -5 to normal to +5
♦ Brake Frequency : 100Hz – 5000Hz
♦ Initial Brake : 0% – 60%
♦ Brake Range : 0% – 100%
♦ Maximum Brake Force : 0% – 100%
♦ 3 Running Modes : Fwd/Brk / Fwd/Rev / Fwd/Brk/Rev
♦ 4 Battery Type Selections : Li-PO / Li-FE / Ni-CD / Ni-MH
♦ 4 Cut-Off Voltage Selections : Off / Low / Middle /High
♦ 4 ESC Overheat Protection Selections(Celsius) : NO / 120oC /105oC / 95oC

♦ 4 Motor Overheat Protection Selections(Celsius) : NO / 120oC/ 105oC /95oC

♦ Neutral Range : 2% – 15%
♦ 4 Fan Mode Selections : Auto / 40% / 80% /100%
♦ BEC Voltage : 6V / 7 V
♦ 2 Motor Rotating Actions : Clockwise / Counter-Clockwise
