New Power For The Track – CASTLE CREATIONS MAMBA X 1:8 SCALE E-BUGGY EDITIONS

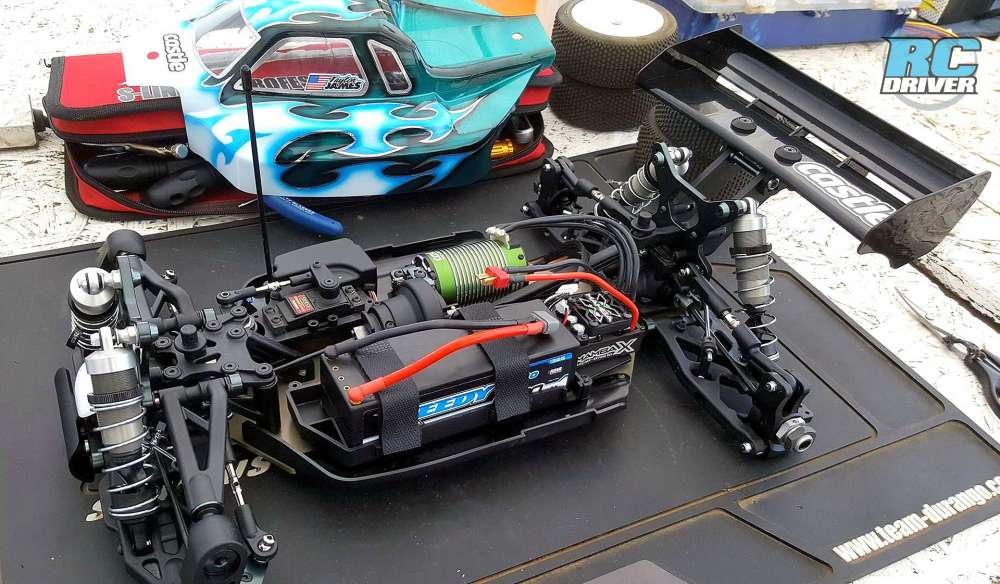

The Mamba X represents the latest and greatest in Castle Creations ESC technology. Originally designed to overpower 1:10th scale buggies and trucks, the Mamba X also delivers amazing race capabilities for 1:8th scale eBuggy. After being extensively race-tested by Castle Creations’ Lead Mechanical Engineer and Team Driver, Taylor James – the Castle Creations Mamba X has been approved for eBuggy racing with two of our most popular 15 Series Motors.

CASTLE CREATIONS MAMBA X

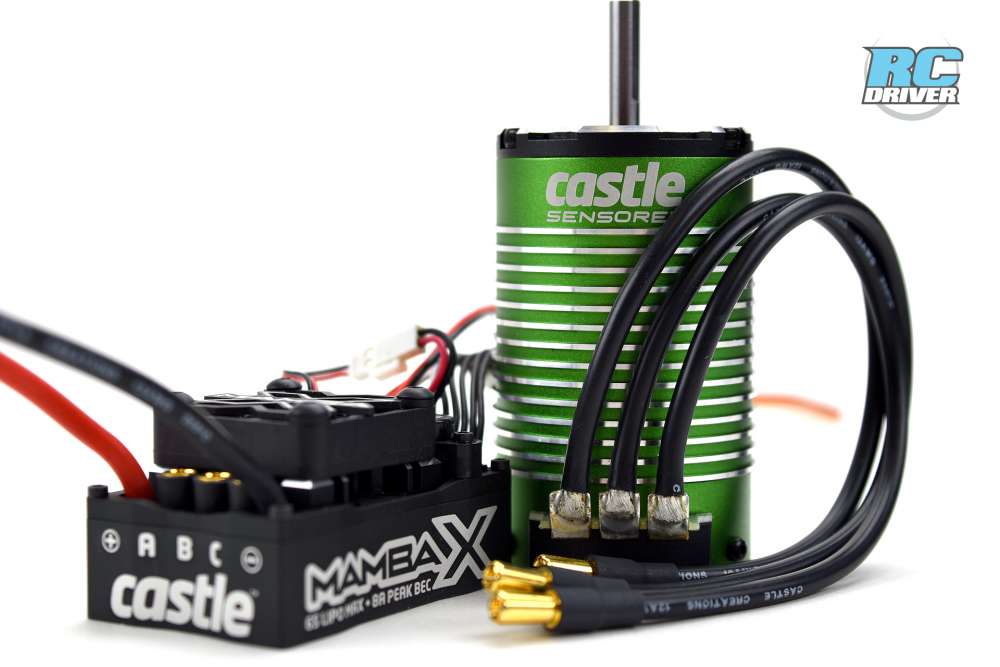

This ROAR APPROVED combo is a Mamba X ESC and 1512 1.5Y 1800kv motor for lighter 1/8th scale applications. Normally this motor is paired with our 1/8th scale Mamba Monster X ESC; but if you need to save some weight or need a smaller footprint, the Mamba X is more than capable of running this motor. This setup is recommended for 3s or 4s use in a vehicle weighing less than 9-lbs and geared for no more than 45 MPH. If you have a heavier vehicle, looking for more speed or just want to beat the ever loving you know what out of your vehicle we would recommend checking out the Mamba Monster X combo.

CASTLE CREATIONS MAMBA X
ESC Features:
Wide 2S to 6S input voltage range ((3-4S LiPo MAX w/1512-1800KV MOTOR)
Sensored Motor Support (Castle X-Series Sensor Harness Included)
Waterproof
8A Adjustable BEC (5.25V-8.0V)
Data-logging
Rugged CNC Aluminum Case
Castle Link Programming Support
SmartSense™
Integrated Capacitors
Removable 30mm Cooling Fan
Integrated 4mm Bullet Connectors
12 AWG Power Wires
Waterproof Switch
Audible Alerts

CASTLE CREATIONS MAMBA X

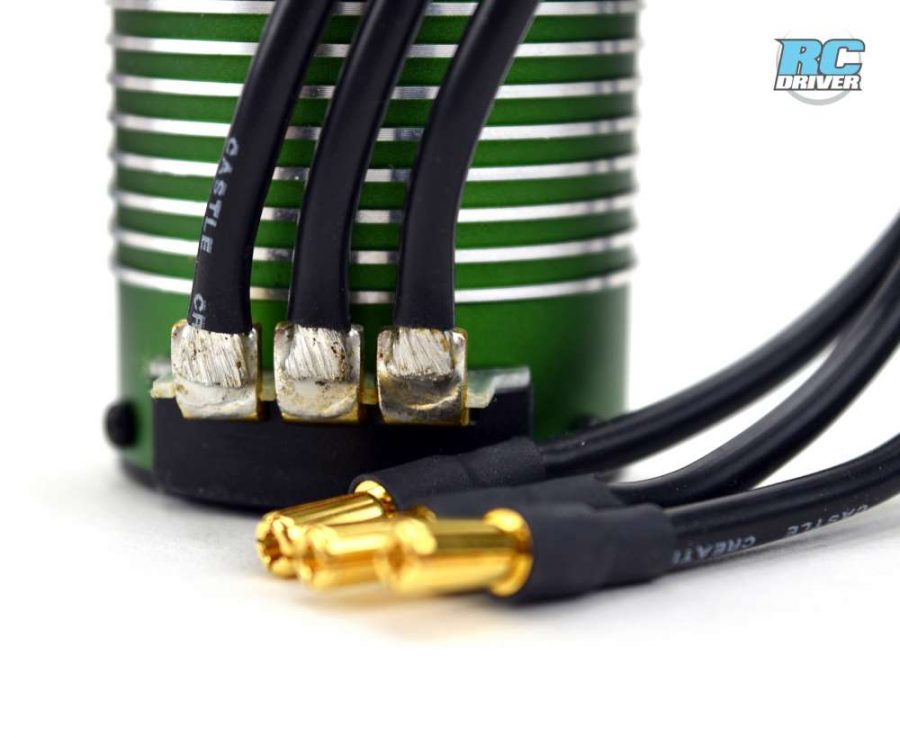

Motor Features:
4-POLE 12-SLOT Rebuildable Design
QUIETSENSE™ Technology
ROAR Standard Sensor Port and Labeled Connections
High-Performance 0.2 mm Steel Lamination Stacked Stator
High-Strength Kevlar Wrap
High-Strength, 180° C Grade, Neodymium Sintered Magnets
Oversized, Low-Resistance, Gold-Plated Solder Tabs
Oversized NMB Bearings
M3 and M4 @ 25mm Mounting Hole
4mm male Castle Bullet Connectors
210mm length Sensor Wire
Optional cooling fan coming soon
Silicone coated sensor board

CASTLE CREATIONS MAMBA X
