There are few silhouettes in the automotive world as instantly recognizable as the Land Rover Defender. It is the exemplary go-anywhere vehicle, a machine that built a reputation on grit, utility, and an uncompromising boxy aesthetic. When the Tamiya 1990 Land Rover Defender 90 CC-02 was released, RC enthusiasts were given the perfect marriage of a legendary scale body and a chassis designed to tackle the rough stuff.

Whether you are a scale purist or a trail hound, this kit offers a fantastic building experience. However, like any stock Tamiya kit, there is always room to take things a step further. In this article, we’ll look at the history of the real-world legend, dive into what makes the CC-02 chassis tick, and explore a curated list of “hop-up” option parts to transform your Defender into a high-performance trail machine.

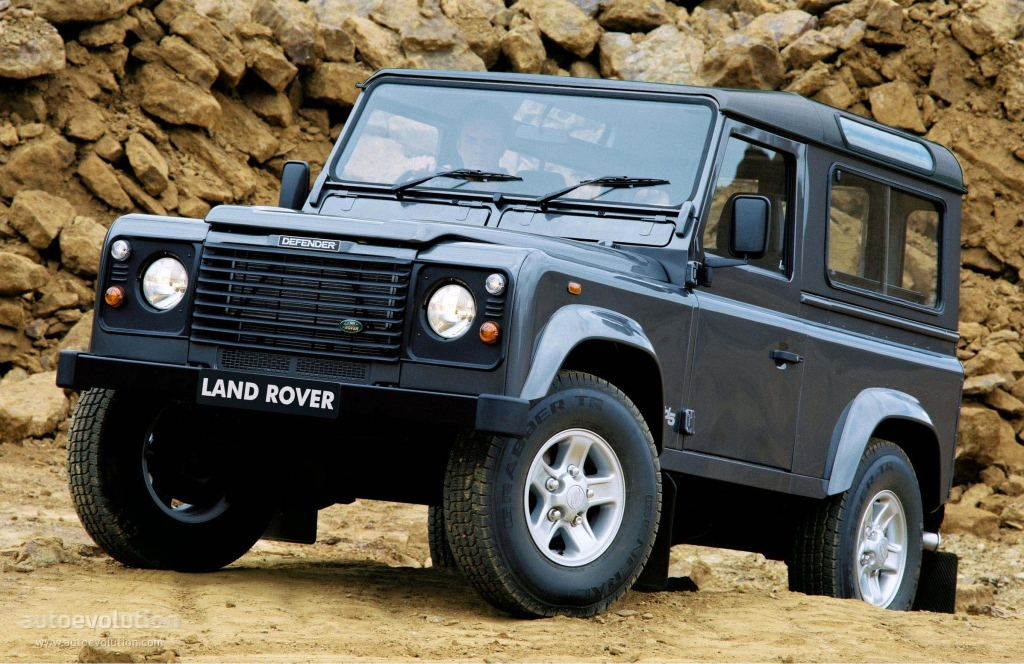

ABOUT THE REAL LAND ROVER DEFENDER 90

The 1990 Land Rover Defender 90 represents a pivotal moment in off-road history. While its roots trace back to the original 1948 Series I, the 1990 rebrand solidified the “Defender” name to distinguish it from the newer Discovery. The “90” refers to its wheelbase in inches, making it the nimble, short-wheelbase sibling to the larger 110.

Built with a rugged ladder frame and permanent four-wheel drive, the real Defender 90 became a favorite for military use, agricultural work, and global expeditions. Its ability to navigate vertical climbs and deep mud, combined with its easy to fix aluminum body panels, earned it a “one-car-for-life” reputation. It is this spirit of indestructible utility that Tamiya captures so well in 1/10-scale.

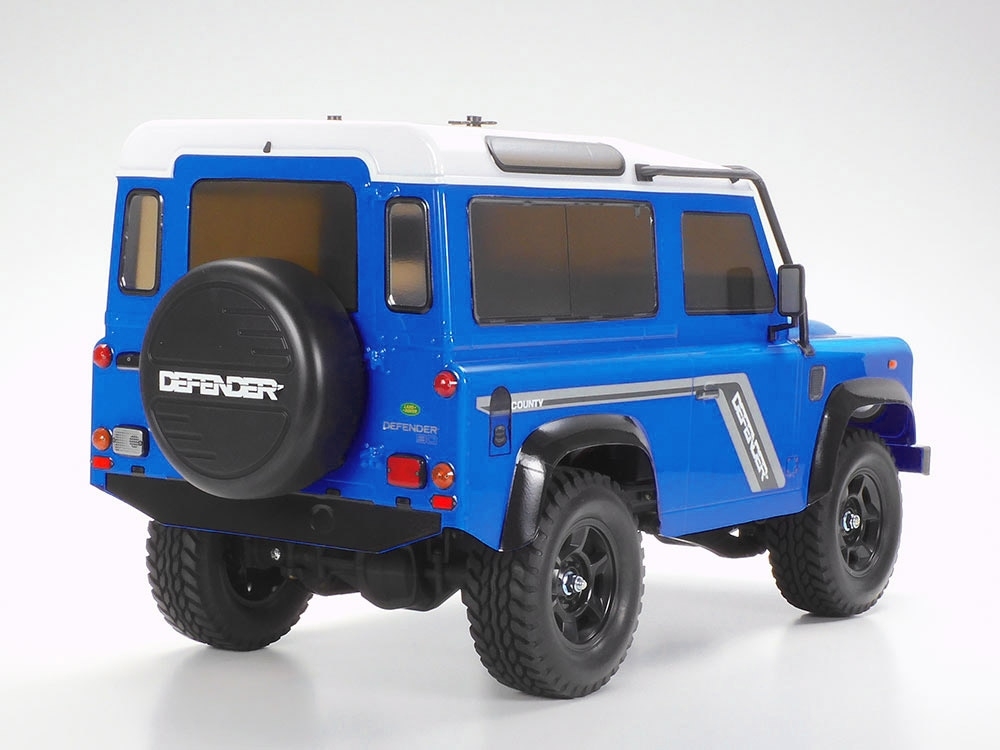

ABOUT THE TAMIYA 1990 LAND ROVER DEFENDER 90 CC-02 KIT

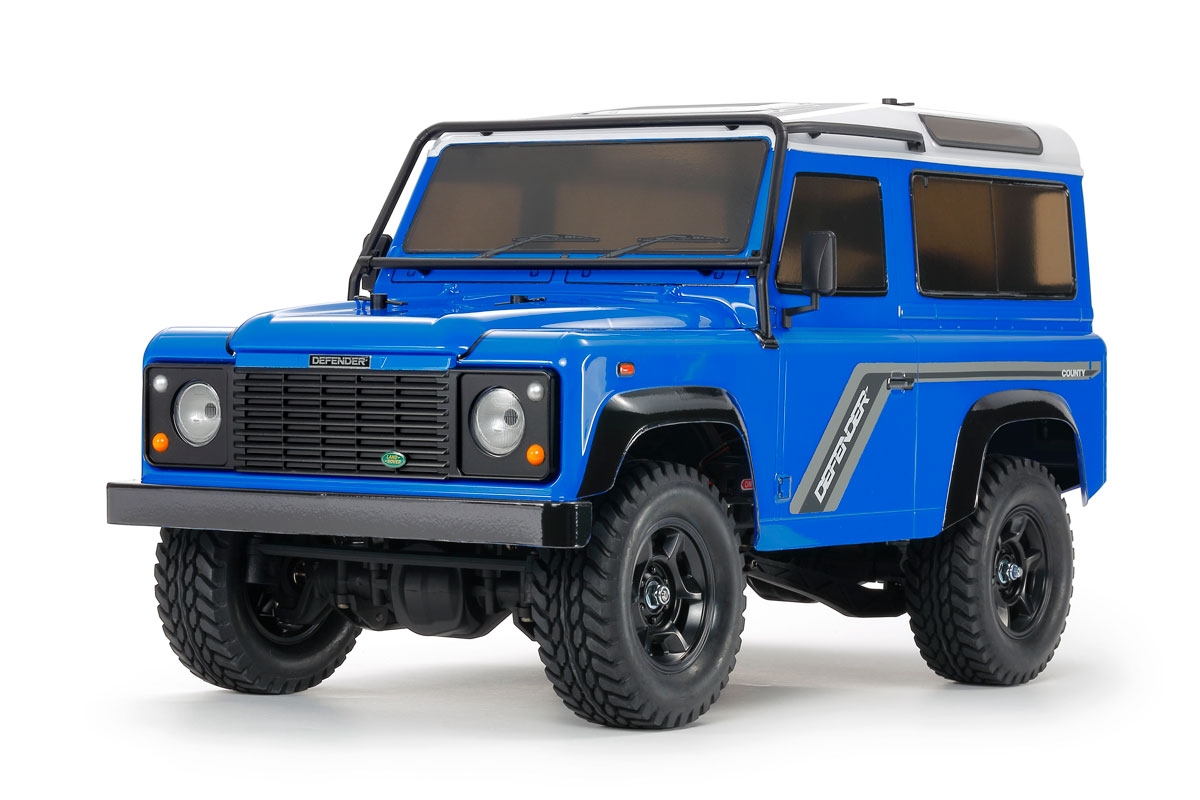

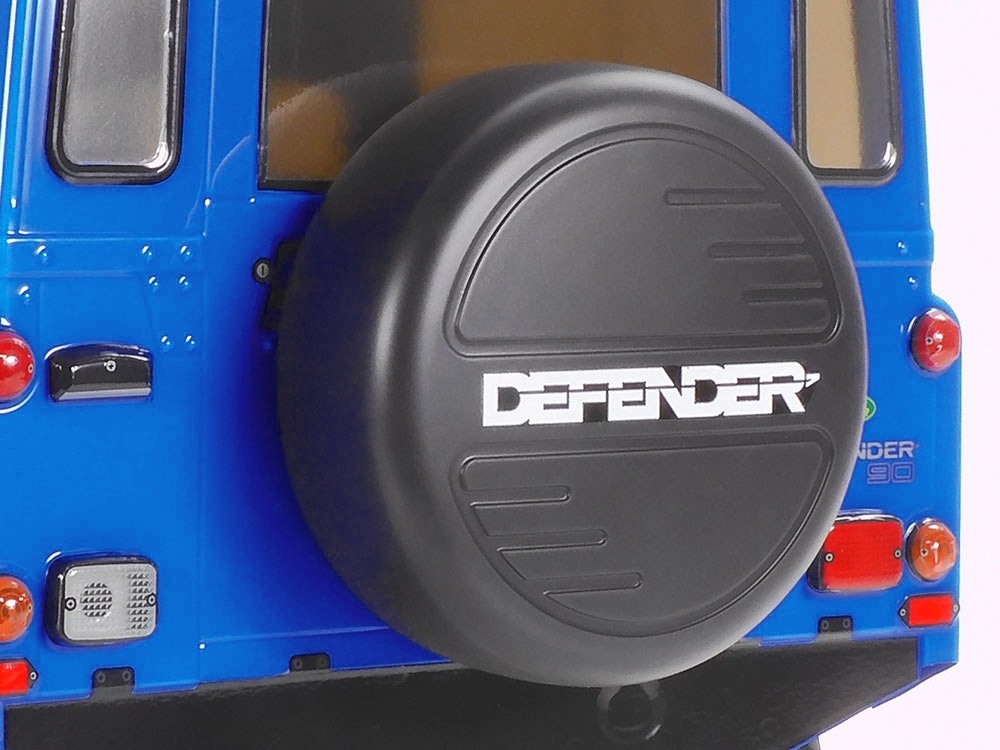

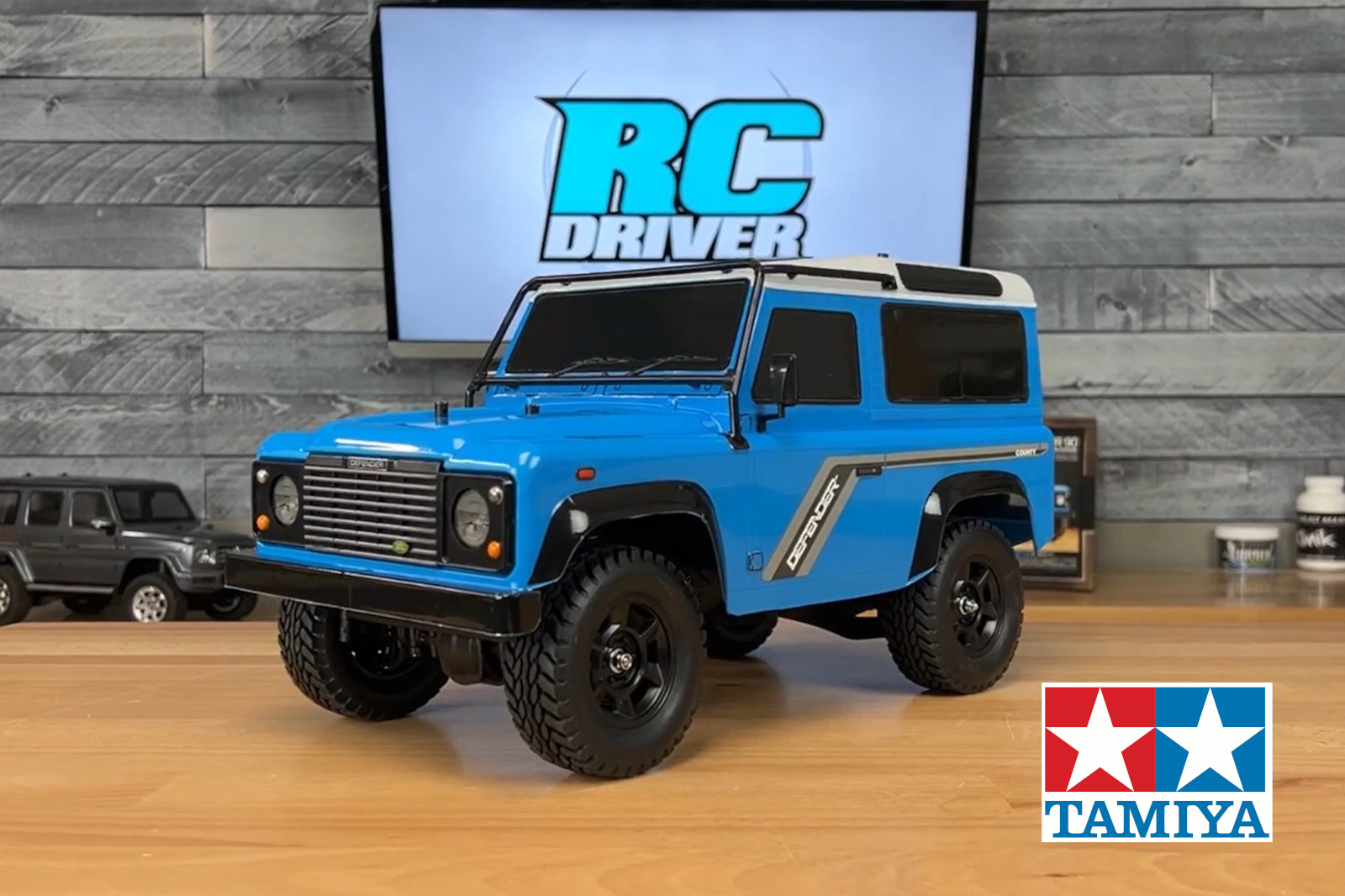

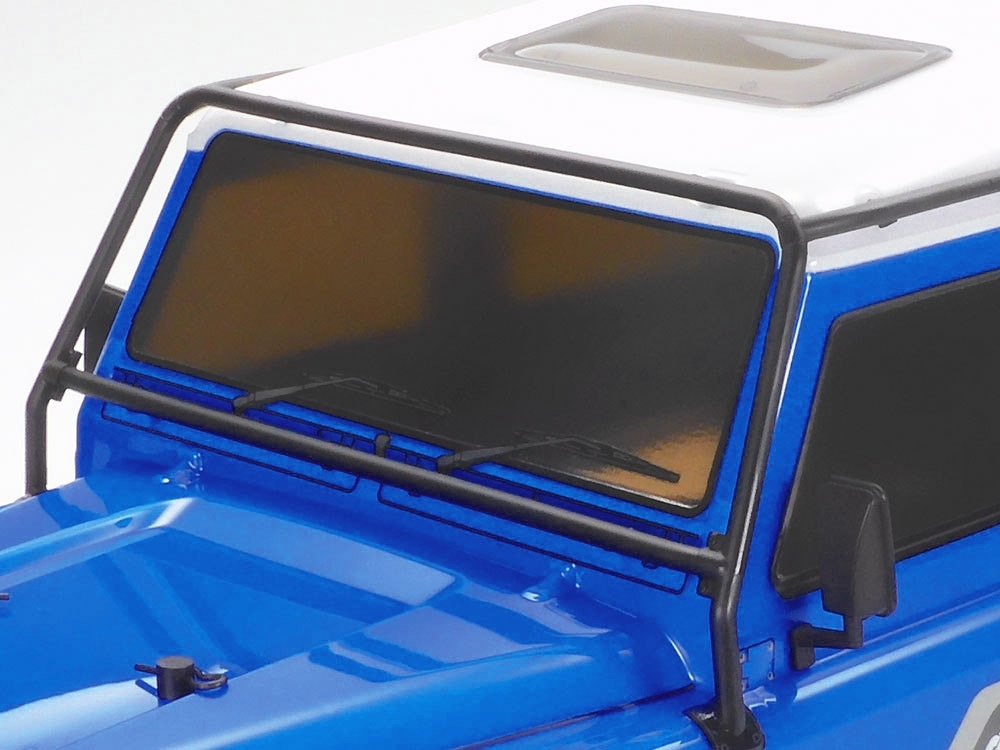

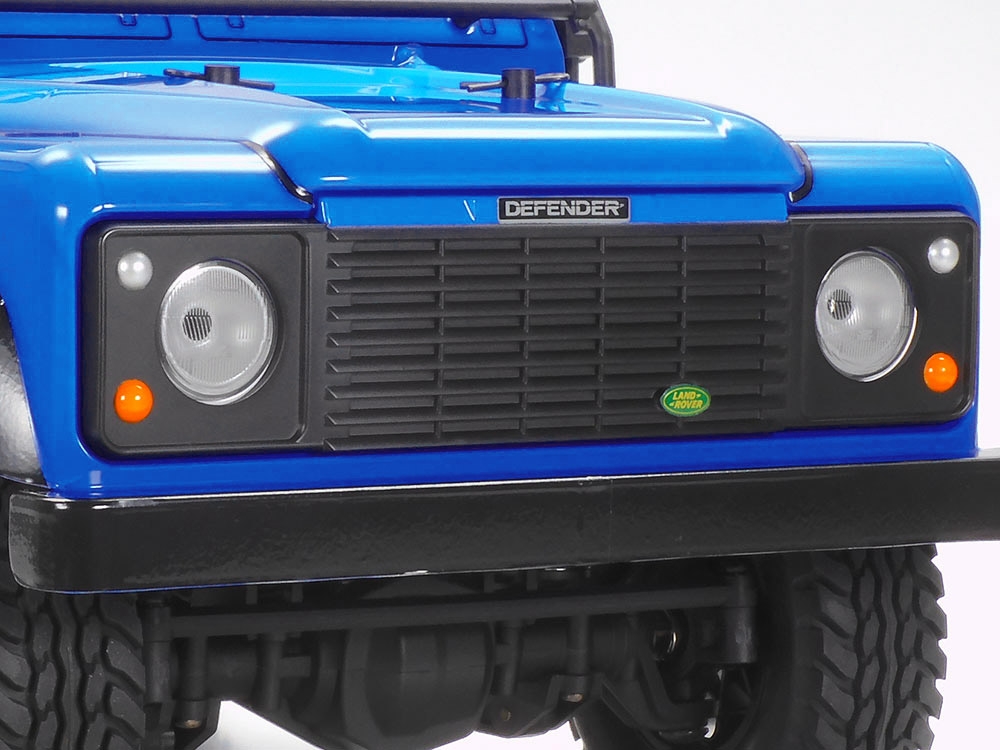

The Tamiya 1990 Land Rover Defender 90, #58700 kit pairs a stunningly detailed polycarbonate body with the off-road CC-02 (Cross Country 02) chassis. Tamiya is known for scale accuracy, and this Defender 90 is no exception. The polycarbonate shell captures the flat panels and sharp corners of the 1990 original perfectly. It includes molded plastic parts for the grille, side mirrors, and spare tire cover, adding a layer of realism that paint alone cannot achieve.

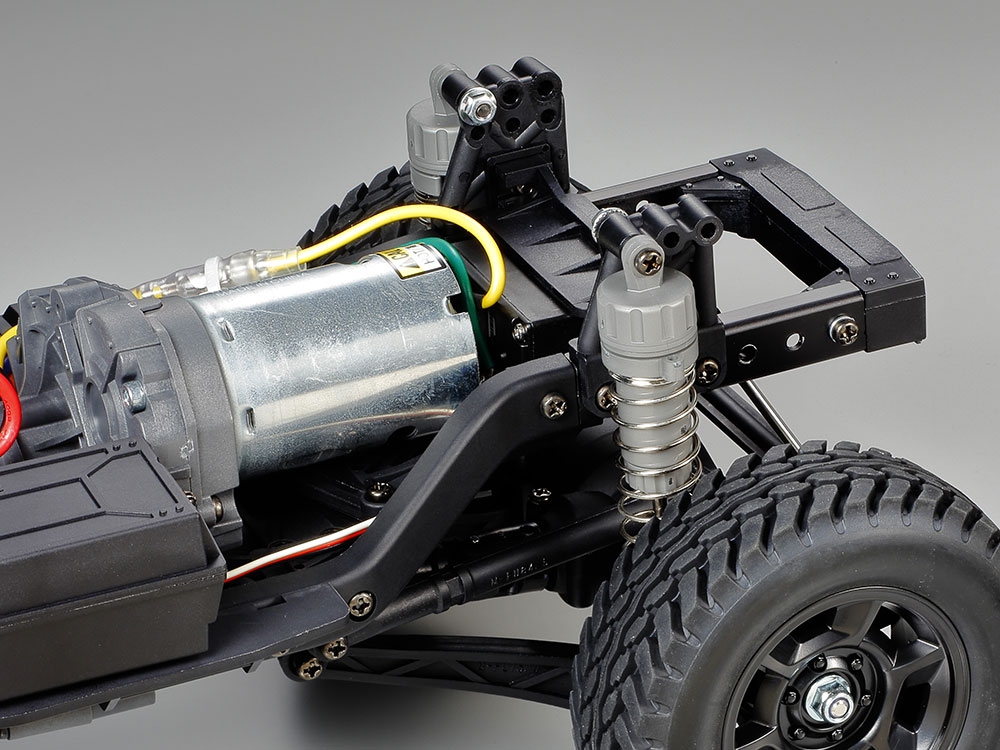

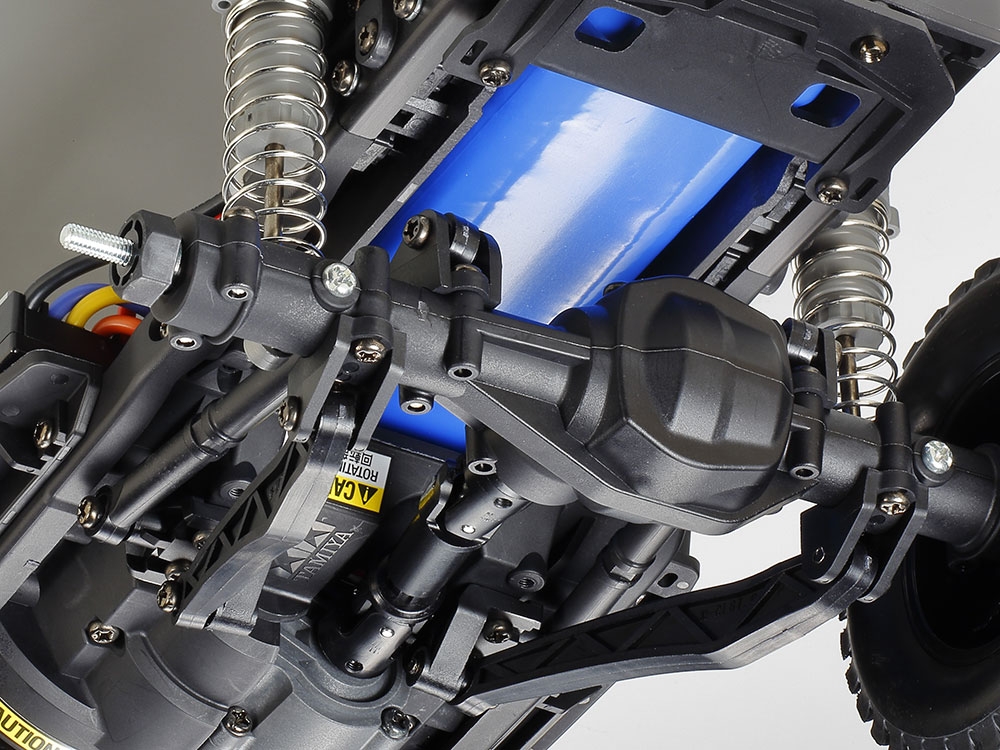

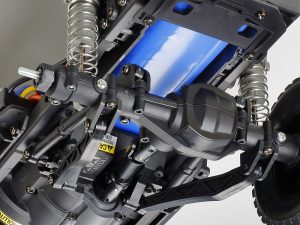

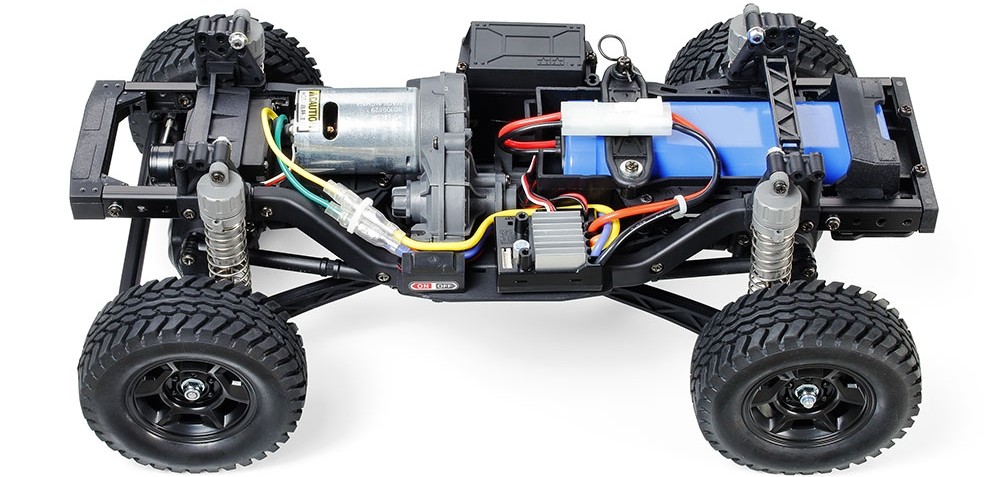

Resting under the scale Defender body is the CC-02 chassis, designed specifically for trail driving. It is a departure from the older bathtub-style CC-01. It features a slim, high-rigidity ladder frame inspired by full-size off-roaders. The motor is positioned longitudinally behind the front axle, powering a central gearbox that sends torque to the front and rear solid axles via propeller shafts. With 4-link rigid suspension and CVA oil dampers, it provides the articulation needed to crawl over rocks and roots.

TAMIYA 1990 LAND ROVER DEFENDER 90 SPECS

•



  Item #58700

• Scale: 1/10
• Chassis Type: CC-02
• Type: Build-up kit
• Length: 16.89 in. (429mm)
• Width: 7.87 in. (200mm)
• Height: 8.47 in. (215mm)
• Chassis: FRP (Fiber Reinforced Plastic) ladder style
• Drivetrain: Shaft-driven 4WD
• Differential: 3 gear, bevel gear diffs
• Bearings: Metal and plastic bushings
• Motor: 540 brushed
• Speed control: Electronic speed control
• Suspension: 4-link rigid suspension
• Shocks: CVA molded plastic, oil-filled
• Tires: Semi-pneumatic all-terrain rubber

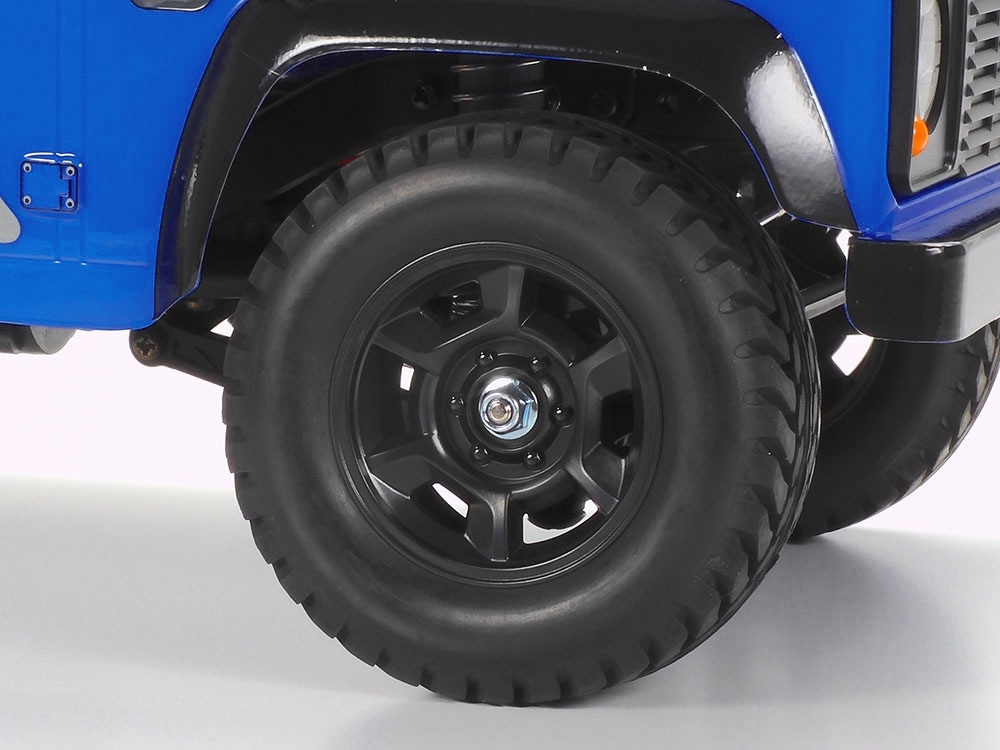

• Wheels: Black ABS resin, 6-spoke
• Body material: Polycarbonate w/ ABS accessory parts

REQUIRED TO COMPLETE

• 2-channel radio system
• Steering servo
• Battery pack
• Battery charger
• Polycarbonate & ABS Plastic Paint

TOP HOP-UP OPTIONS FOR PERFORMANCE AND DURABILITY

While the stock CC-02 is capable, Tamiya offers several precision-engineered upgrades to improve efficiency and durability. Beyond the mechanical benefits, many of these parts replace standard plastic with expertly machined metal, which naturally boosts the scale realism and style of the chassis.

FORTIFY THE GEARBOX

The heart of the CC-02 is its central gearbox. To keep everything spinning smoothly under high torque, these two upgrades are essential:

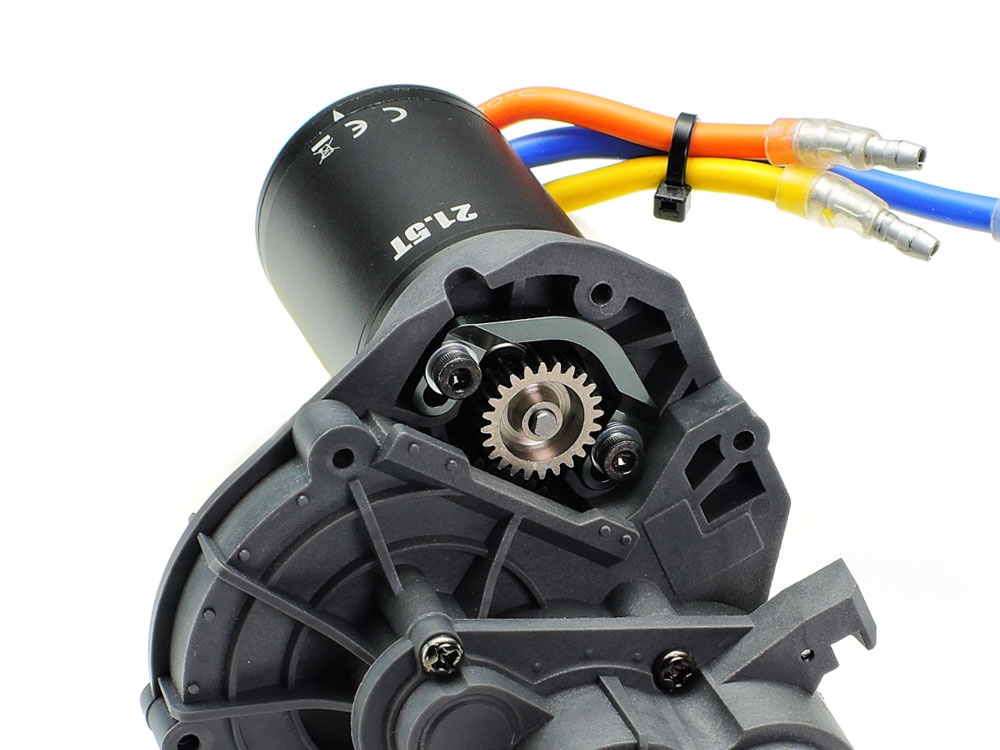

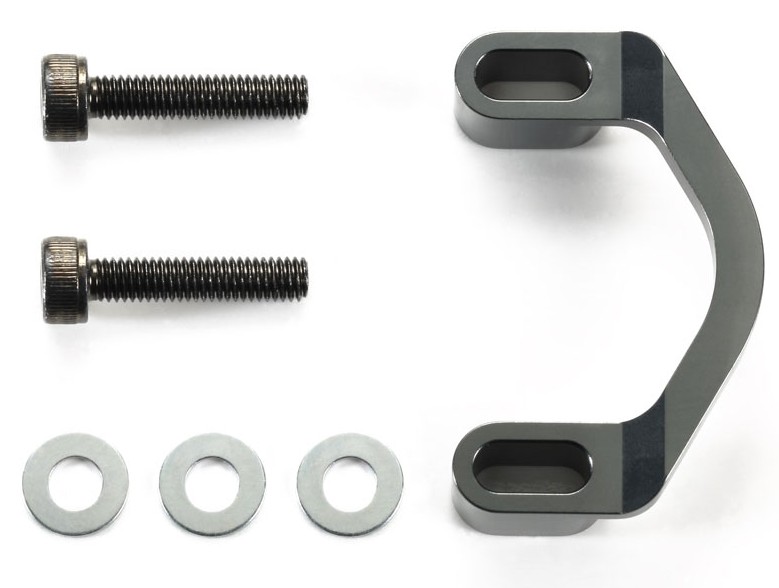

Tamiya CC-02 Motor Mount Bridge Spacer — #54971

This simple yet effective aluminum spacer increases the rigidity of the motor mount. It prevents the motor from flexing under load, which ensures consistent gear mesh and reduces wear on your pinion and spur gears.

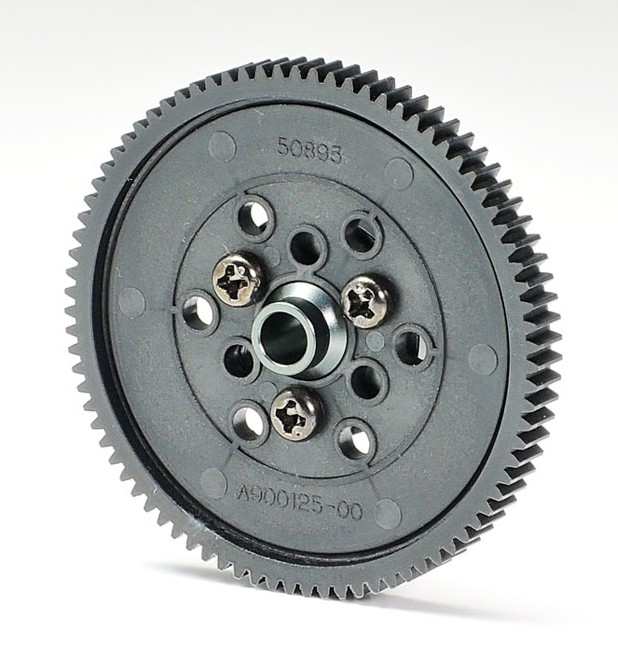

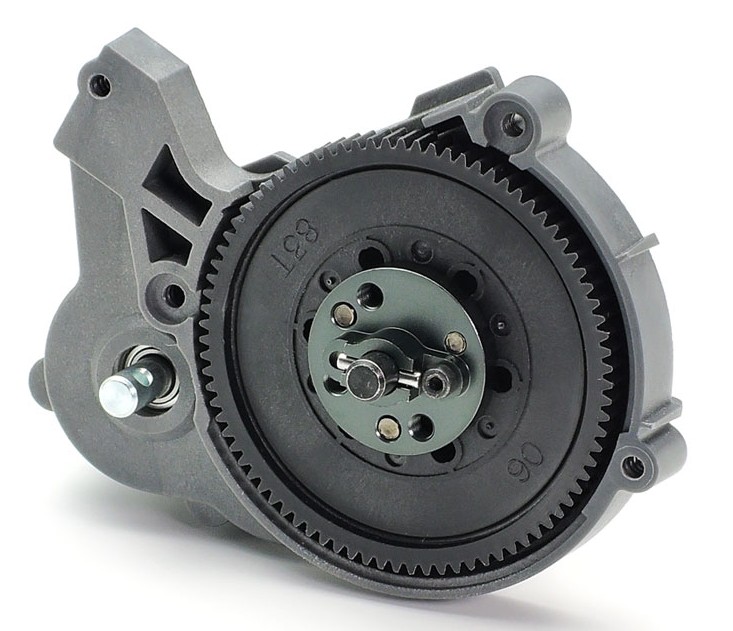

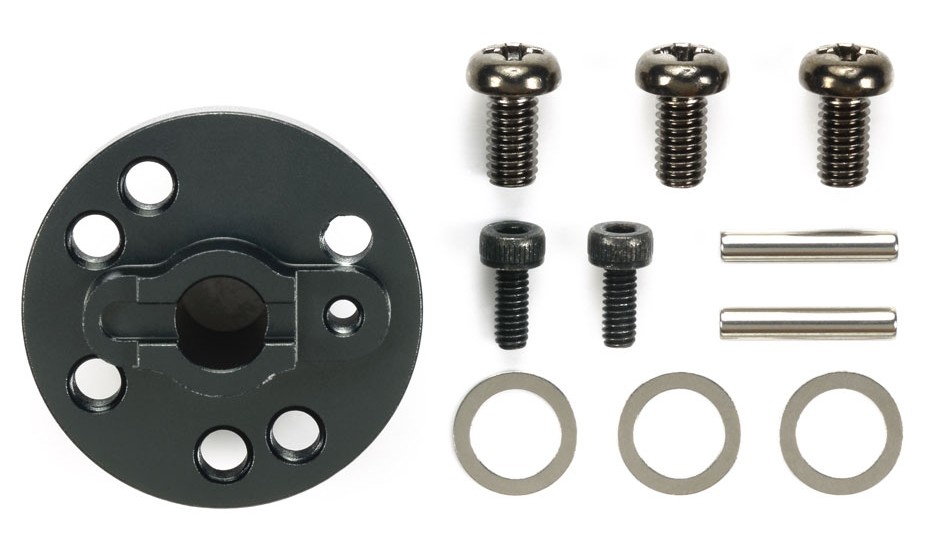

Tamiya CC-02 Aluminum Spur Gear Mount — #54970

Replacing the stock plastic mount with this aluminum version provides a much more stable foundation for the spur gear. By reducing wobble, it works in tandem with the Motor Mount Bridge Spacer to create a drivetrain that is both quieter and more efficient.

DRIVETRAIN DURABILITY BOOST

If you plan on upgrading the stock 540 brushed motor with some more powerful or tackling difficult terrain, you need to reinforce the path from the gearbox to the wheels.

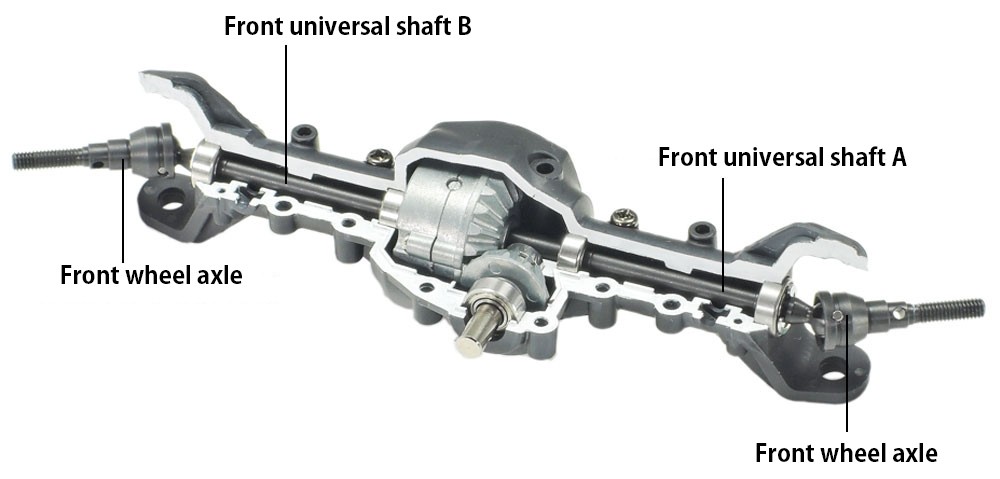

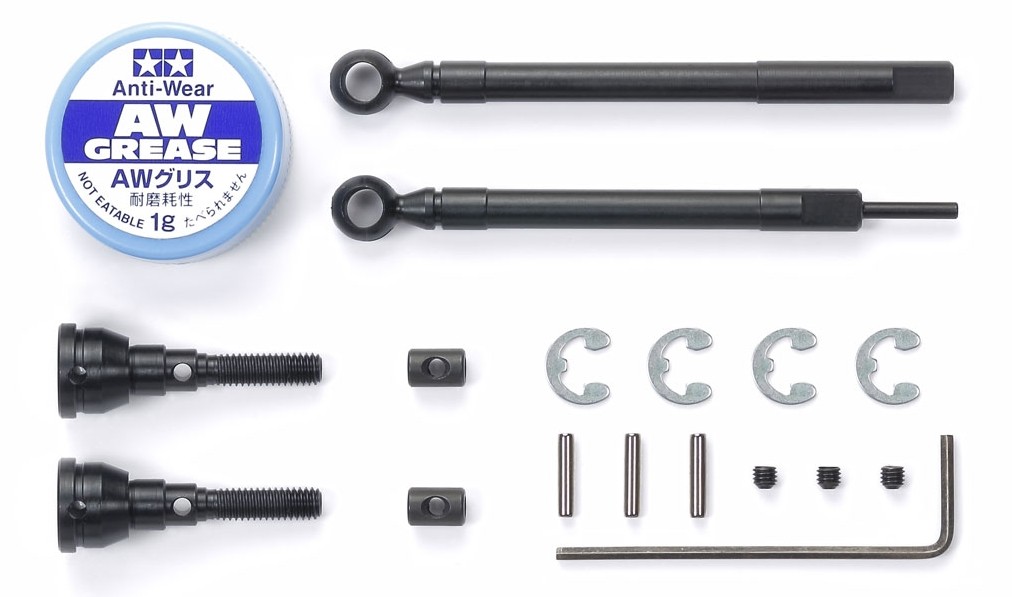

Tamiya CC-02 Front Assembly Universal Shafts — #54984

Unlike standard dogbones, these universals provide smoother power delivery, especially when the front wheels are turned at sharp angles. These shafts are constructed in carbon tool steel for superior rigidity and thus provide efficient rotation.

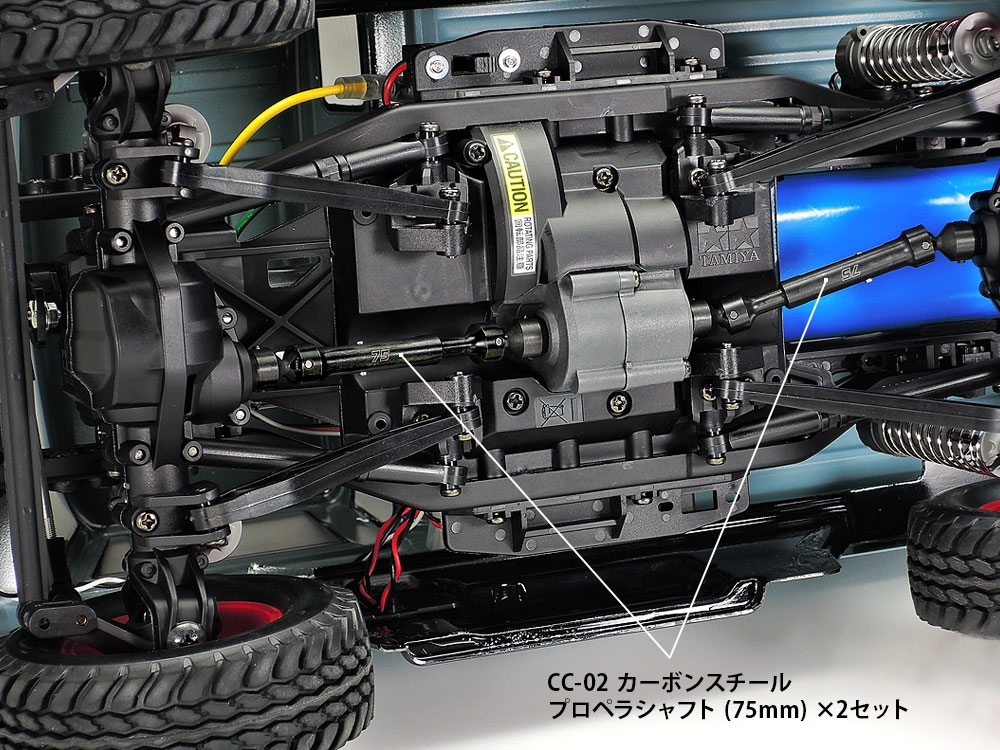

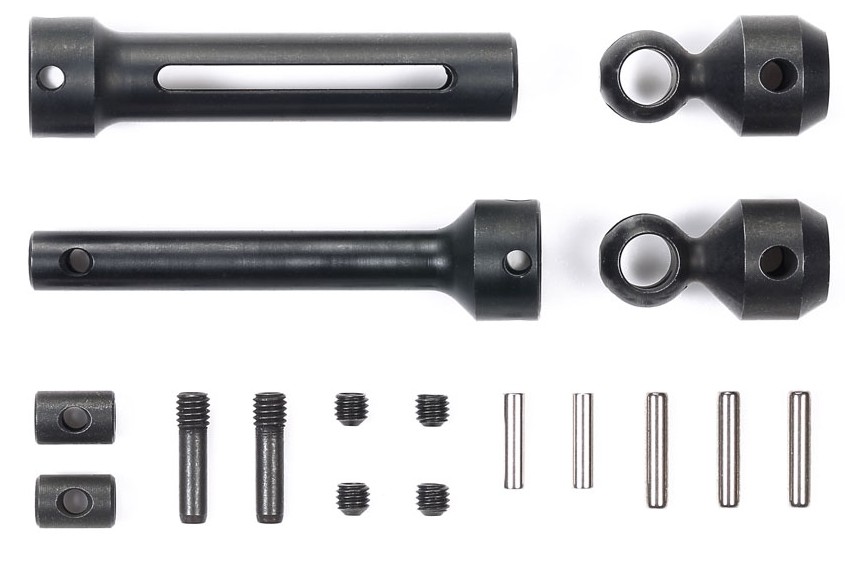

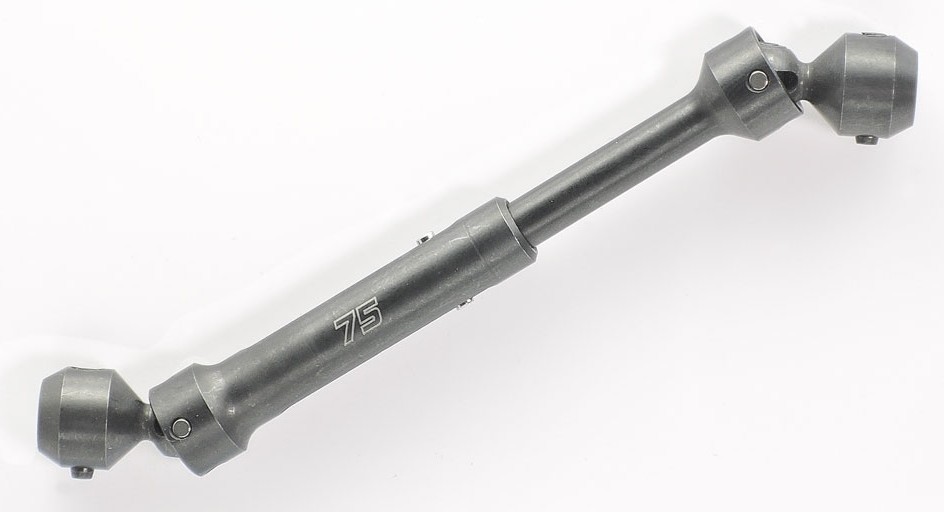

Tamiya CC-02 Carbon Steel Propeller Shaft — #54998

The center shafts take a lot of abuse. These carbon steel versions are significantly stronger than the kit-standard parts, ensuring they won’t twist or snap when the going gets tuff. Additionally, the dark, heavy-duty finish of the steel adds a, realistic look to the underside of the chassis.

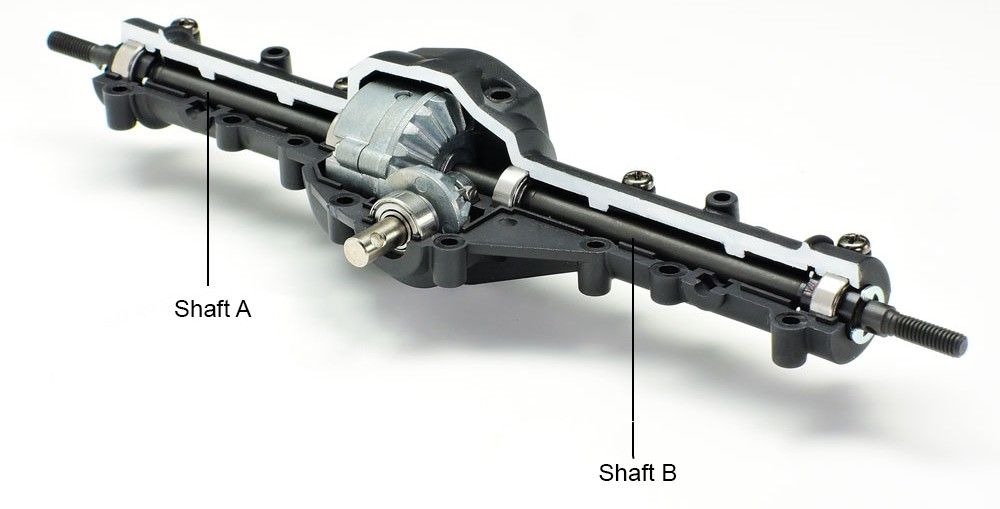

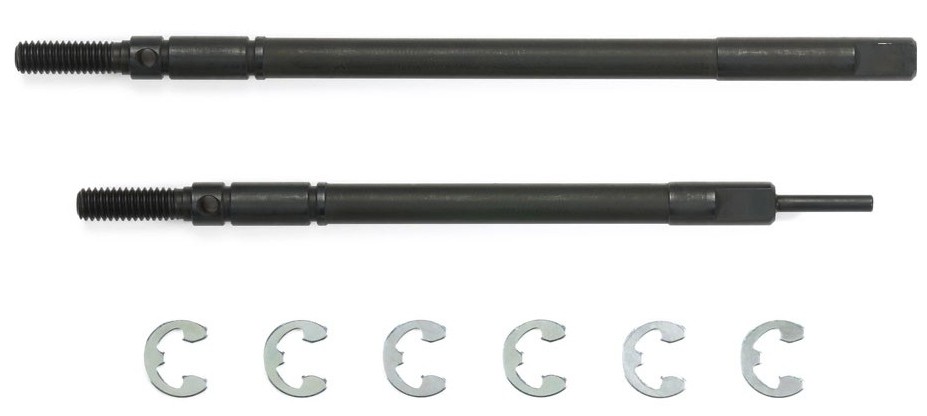

Tamiya CC-02 Reinforced Rear Drive Shafts — #54978

To match the strength of your new center and front shafts, these reinforced rear shafts ensure the back end of the truck can handle the same level of punishment as the rest of the drivetrain.

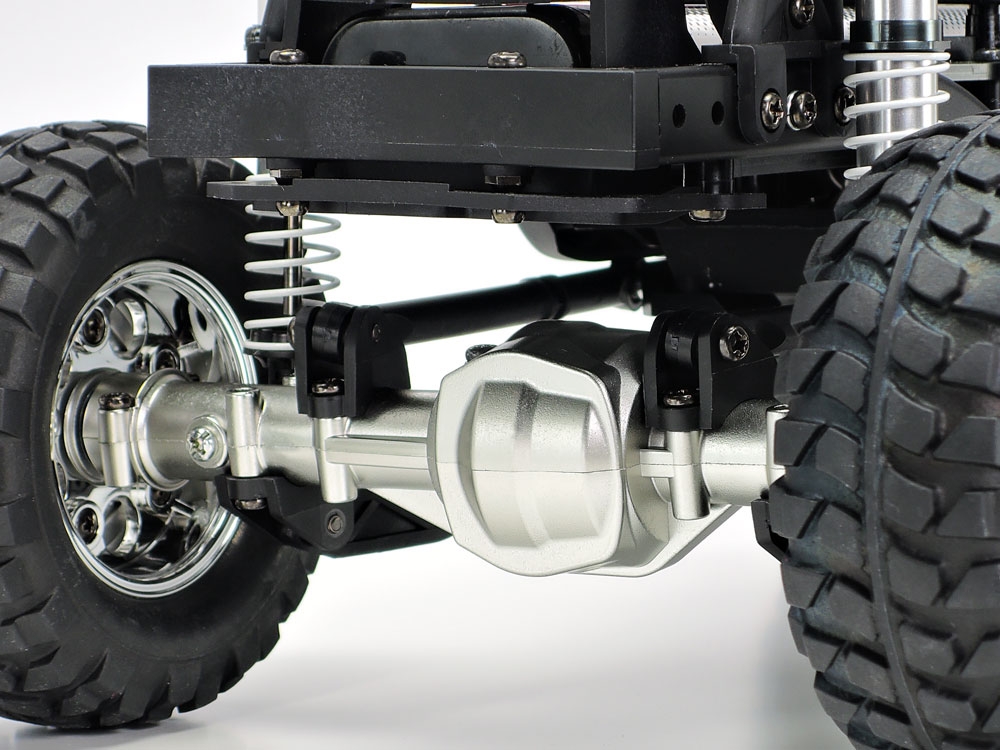

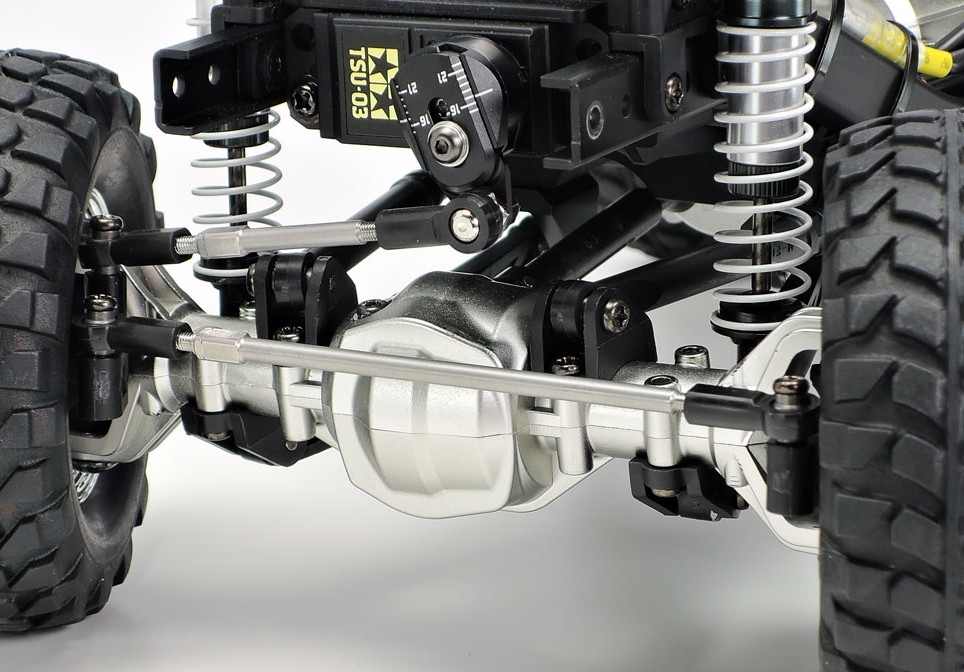

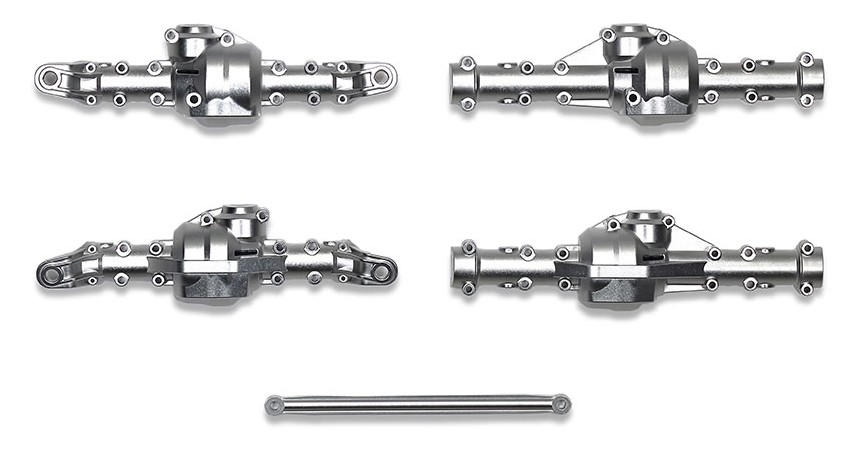

Tamiya CC-02 B Parts Axle Housing Matte Plated — #54990

A standout for both performance and style, these reinforced axle housings provide a stiffer casing for your gears. They also feature a more detailed metal plated matte finish that significantly boosts the realism of the truck when viewed from the front or rear.

SUSPENSION MODS

Enhance the looks and raise the durability of the 1990 Land Rover Defender 90 with the two following Tamiya hop-up option parts.

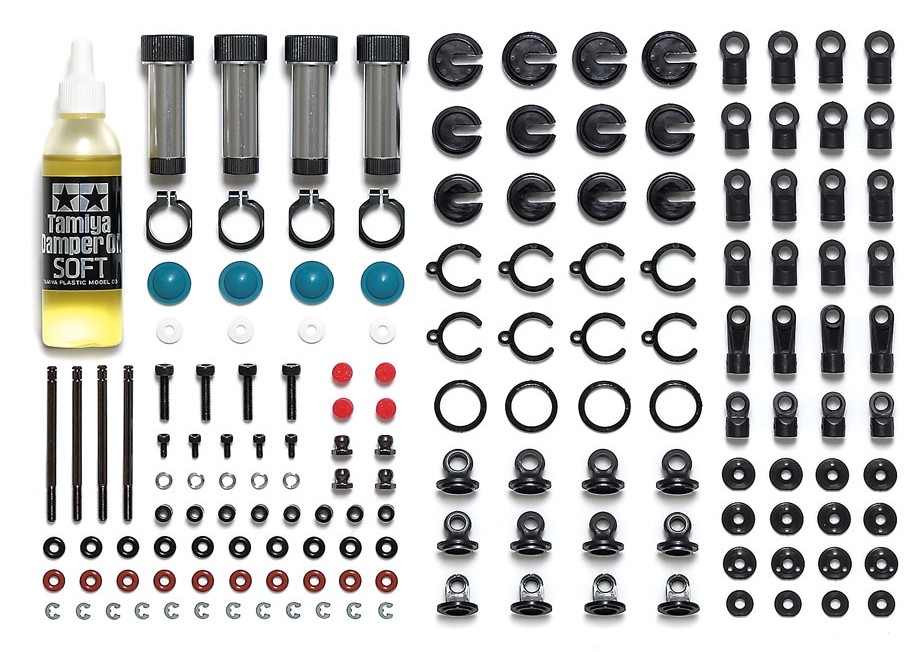

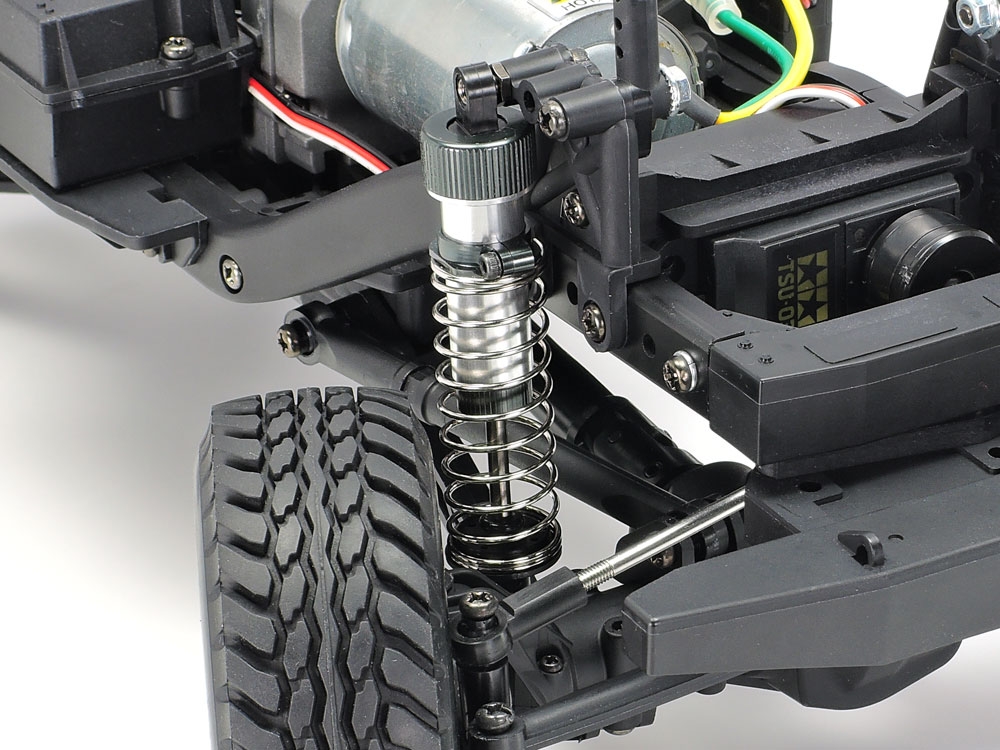

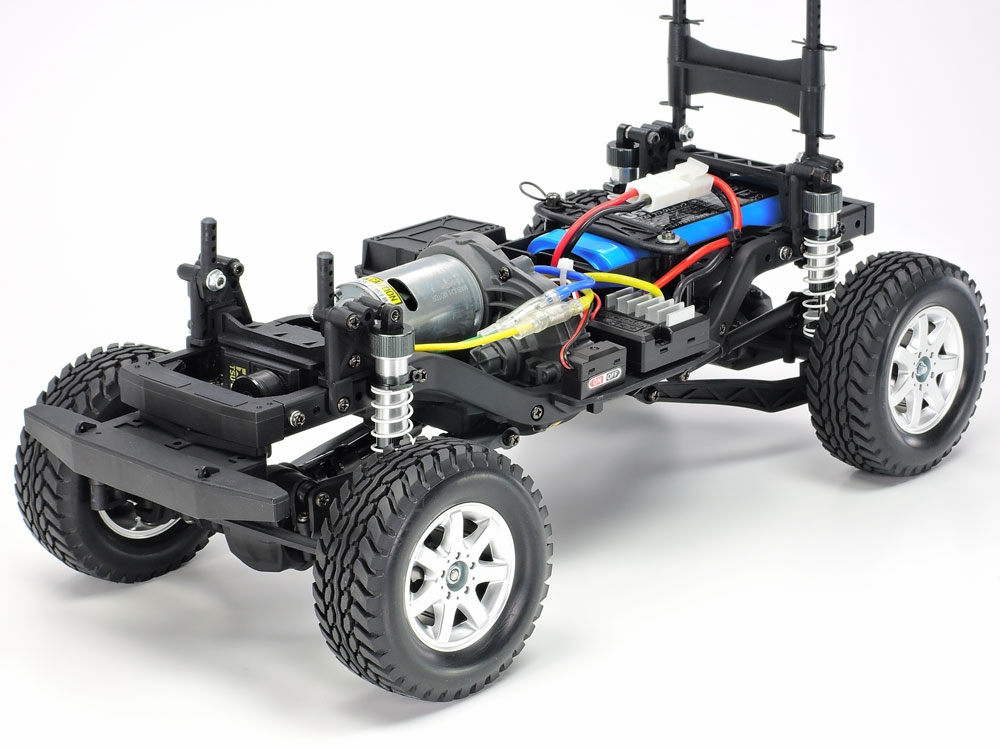

Tamiya CC-02 Aluminum Dampers — #54991

Although the Defender 90 comes stock with CVA oil-filled shocks, these high-quality aluminum oil-filled dampers are narrower and create a more realistic look. All of the components needed to build and install the shocks are included except for the springs.

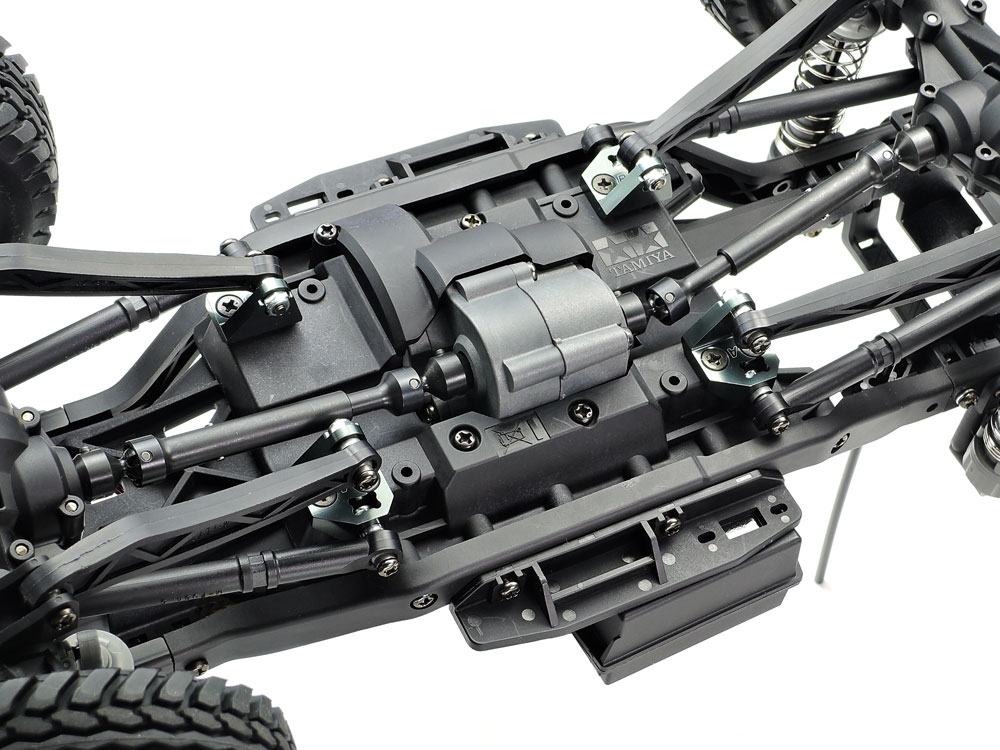

Tamiya CC-02 Aluminum Arm Pivots — #54944

These pivots replace the plastic components where the suspension arms meet the chassis. They provide a much more secure, slop-free connection for improved durability. Each pivot is beautifully CNC machined out of aluminum and then anodized in a sharp-looking gun metal color. Two set are required to outfit the CC-02 chassis.

REINFORCE THE CHASSIS

A rigid chassis is the key to predictable handling. These aluminum additions eliminate unwanted flex while simultaneously dressing up the CC-02 ladder chassis.

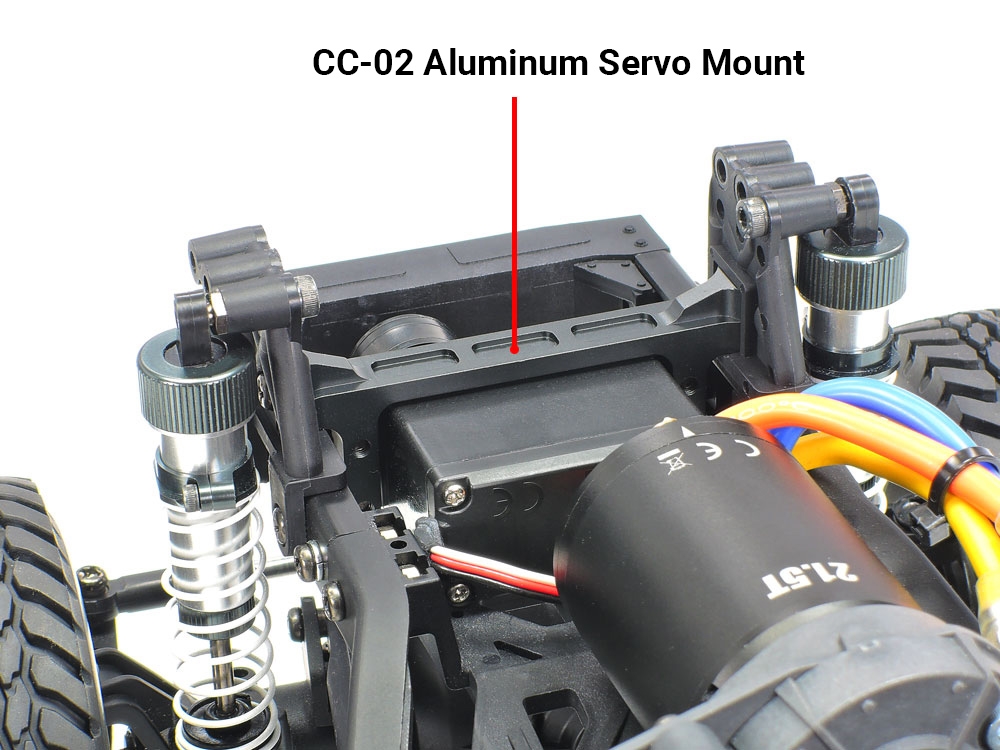

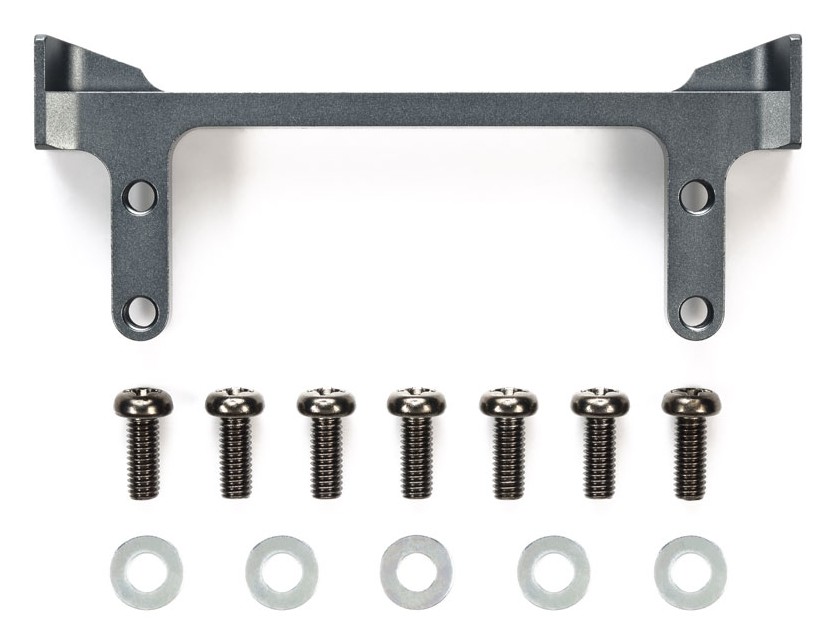

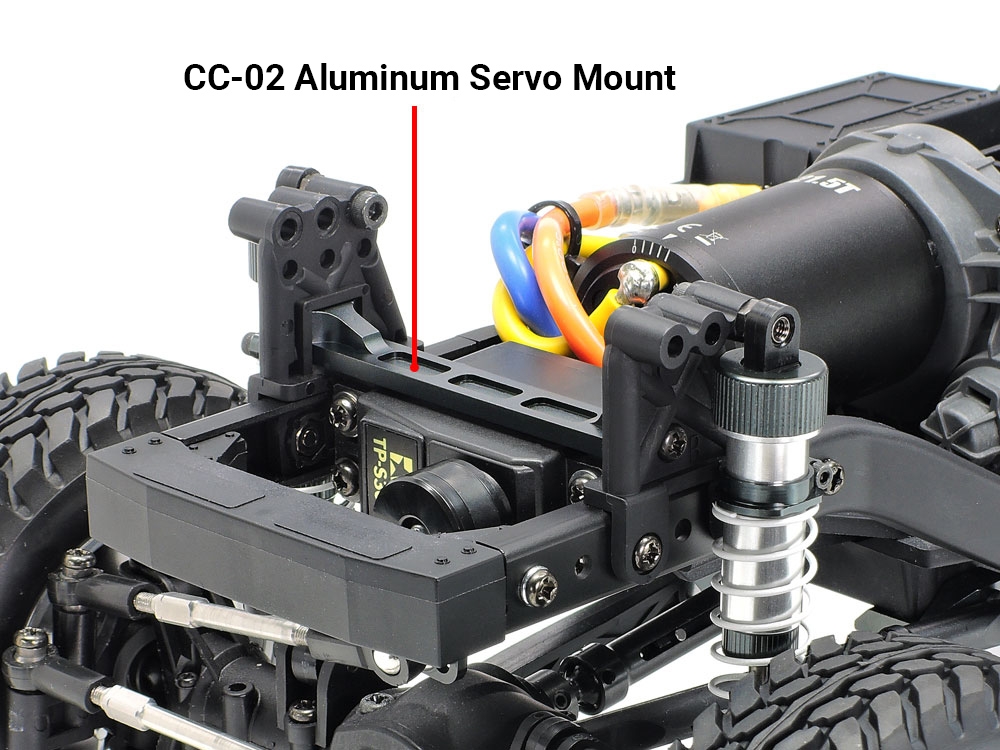

Tamiya CC-02 Aluminum Servo Mount — #22002

Steering precision is often lost through plastic flex. This rigid mount ensures that every ounce of torque from your steering servo goes directly into moving the tires, rather than twisting the mount. It also cleans up the look of the front end, replacing the bulkier stock plastic mount with a sleek, anodized aluminum component.

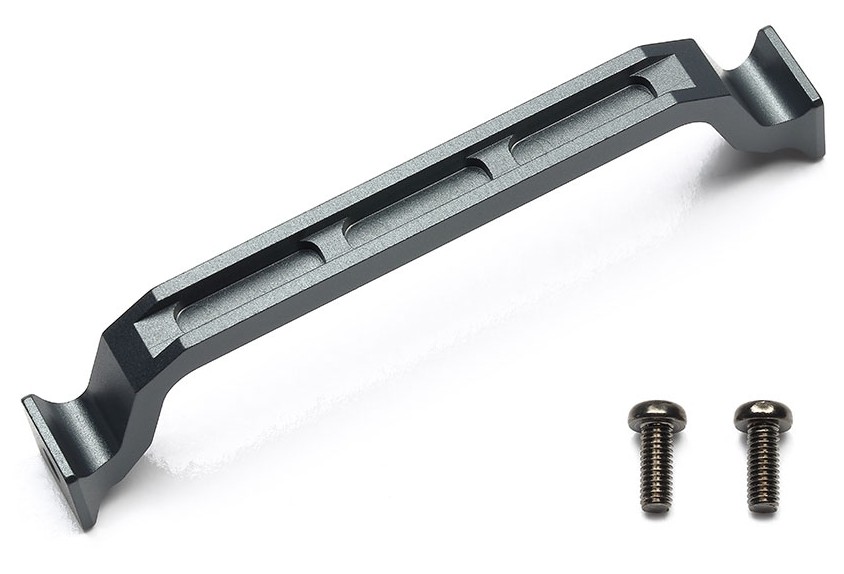

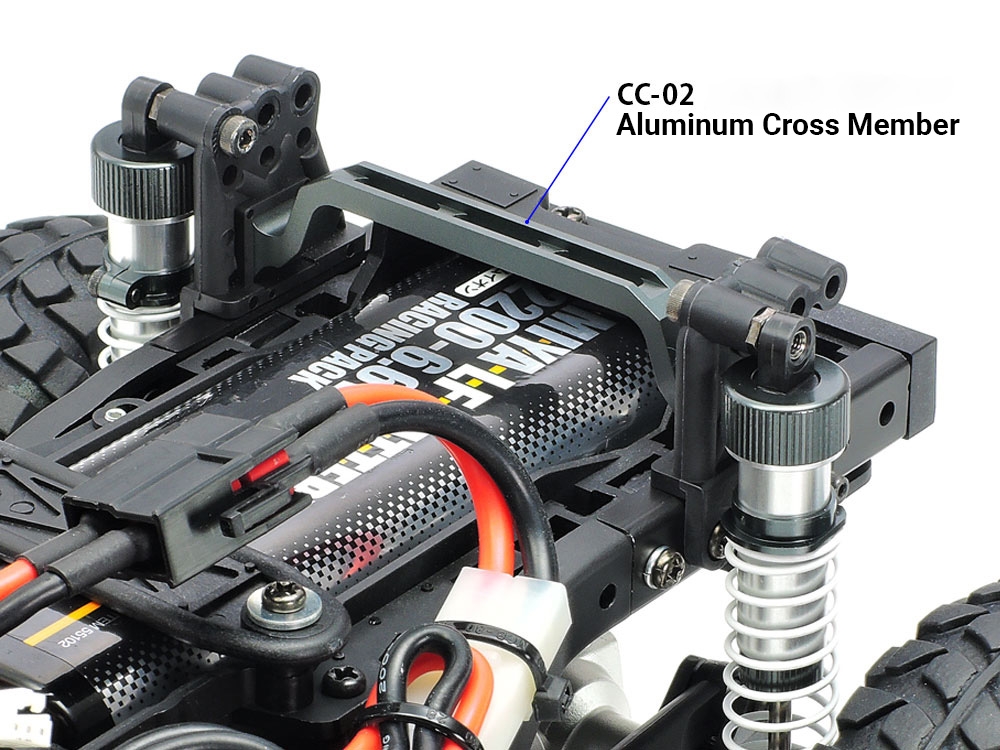

Tamiya CC-02 Aluminum Rear Member — #22041

This replaces the rear-most cross member of the ladder frame. It ties the two chassis rails together firmly, providing a solid backbone that complements the Aluminum Servo Mount at the front of the truck.

FINAL THOUGHTS

The Tamiya 1990 Land Rover Defender 90 CC-02 is a brilliant tribute to an off-road icon. In its stock form, it is a fun, capable build that looks incredible on the trail. However, by strategically adding Tamiya hop-up option parts—starting with gearbox fortification and moving through drivetrain and suspension refinements—you can transform this kit into a rugged, precision-engineered RC adventurer. Whether you add one part at a time or go for a full “pro” build, the CC-02 platform provides a rewarding journey for every RC enthusiast.
