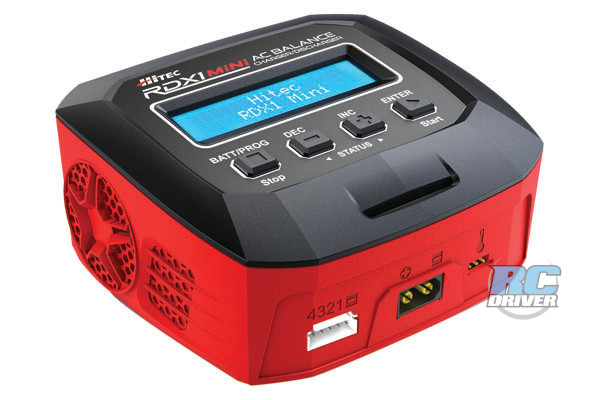

Hitec RDX1 Mini charger

Small things do come in small packages just like this Hitec RDX1 Mini charger. Expanding on the popularity and superior performance of the RDX1 charger line, Hitec is proud to introduce the AC input, micro processor RDX1 Mini. Hitec’s sleekly-designed, compact AC charger packs 65 watts of power into a fraction of the size of most chargers to meet your battery management requirements. It is compatible with a full range of the most popular battery types, including the new generation LiHV. With 6 amps of maximum charging current and 2 amps of discharging current, the RDX1 Mini is the next best way to stay charged with Hitec!

Hitec RDX1 Mini charger

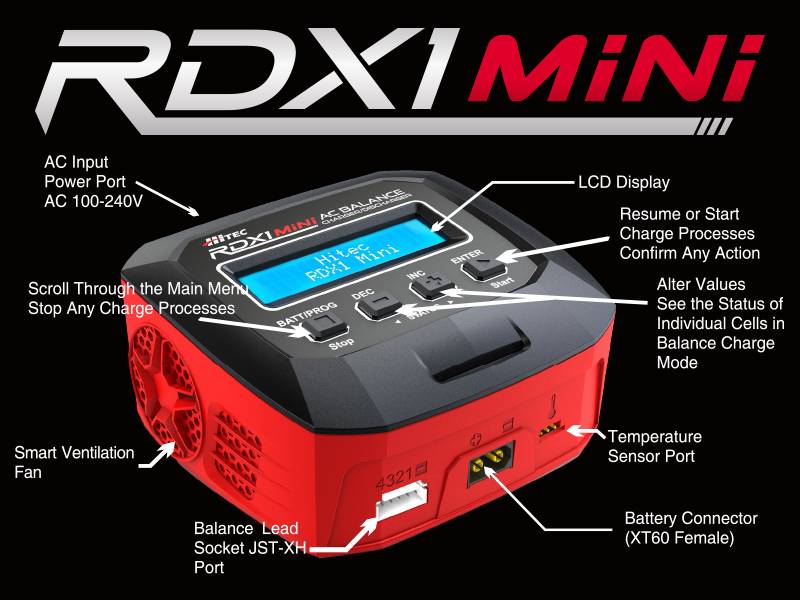

User-Friendly LCD Interface
Stores 10 Different Battery Memory Charge/Discharge Profiles
Terminal Voltage Control
Built-in Balance Connector (JST, XT)
Cell Balancing While Discharging
Balance, Standard, Fast and Storage Modes for All Lithium Battery Chemistries
Re-Peak Charge Mode and Delta-Peak Sensitivity For NiMH/NiCd Batteries
Optional Temperature Sensor for NiCd/NiMH Charging
Built-in XT60 Connector
Smart Ventilation Fan


Hitec RDX1 Mini charger

Charging Specifications:

  • AC Input: 100-240 Volts AC
  • Charge Power: 65 Watts
  • Charge Current Range: 0.1 – 6.0 Amps
  • Discharge Power: 10 Watts
  • Discharge Current Range: 0.1 – 2.0 Amps
  • Current Drain for LiPo Balancing: 200mA per Cell
  • NiCd/NiMH Battery Cell Count: 6 – 8 Cells
  • LiPo/LiHV/LiFe/Lilon Cell Count: 2 – 4 Cells
  • Pb Battery Voltage: 6 – 12 Volts
  • Dimensions: 4.61 x 4.17 x 2.17 in. (117 x 106 x 55mm)
  • Weight: .69 lbs. (315g)

The Set Contains:

  • RDX1 Mini Charger
  • Power Cord
  • 2 Pin T-Type Charging Cable

For more information, visit: HITEC
