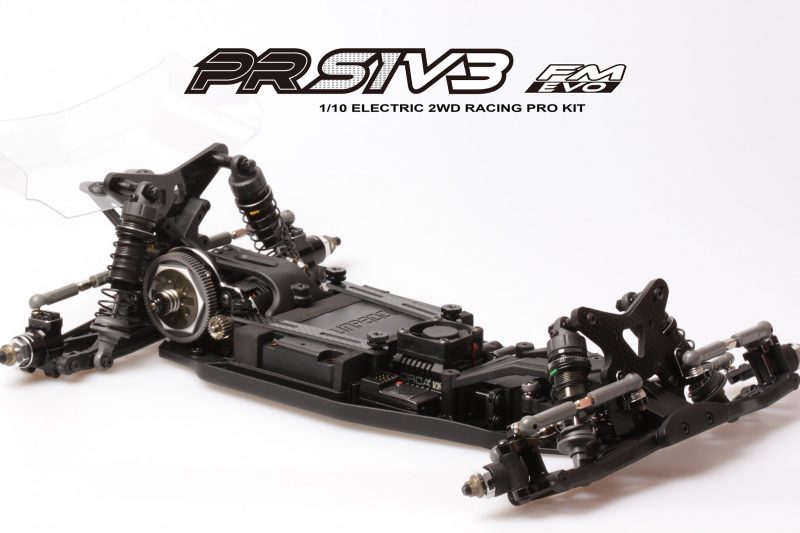

PRS1V3 Type-R(FM) EVO 1/10 Electric 2WD Buggy PRO Kit

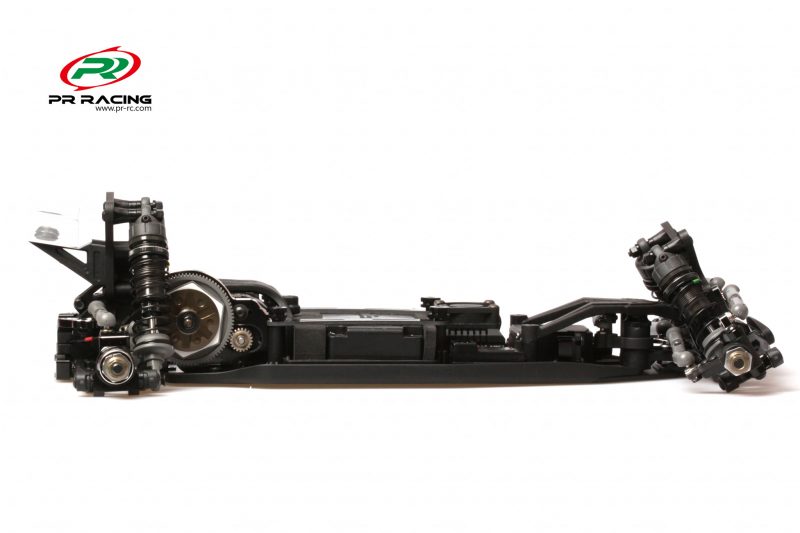

The PRS1V3 Type-R(FM) EVO 1/10 Electric 2WD Buggy PRO Kit is ready for top tier off road action! The S1 V3 platform continues to evolve with a whole host of improvements to create the V3R Evo. The main focus has been to make the car smoother and easier to drive on track, and this has been achieved with a revised 2.5mm thick -5mm length 7075 aluminum chassis .

In addition new insert type hangers have been introduced, and in conjunction with the chassis design allow for much lower rear roll center, keeping the car much flatter on track with smoother rotation. New Ackerman geometry, and new CNC rear hubs with longer link positions also improve on track driveability.

A new motor mount has been produced to lower the motor 2mm into a recess in the chassis, and makes a particular difference on today’s high grip tracks. In addition to all the geometry and mechanical changes, the V3R Evo has been treated to a new body, designed to look sleek and offer more steering with it’s much larger forward mounted cabin.



2019 V3R Evo – Updates From the Type-R:

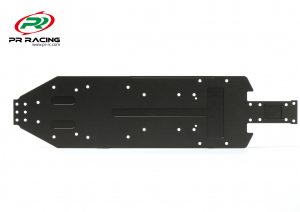

• New 7075 2.5mm Thick -5mm Length Chassis

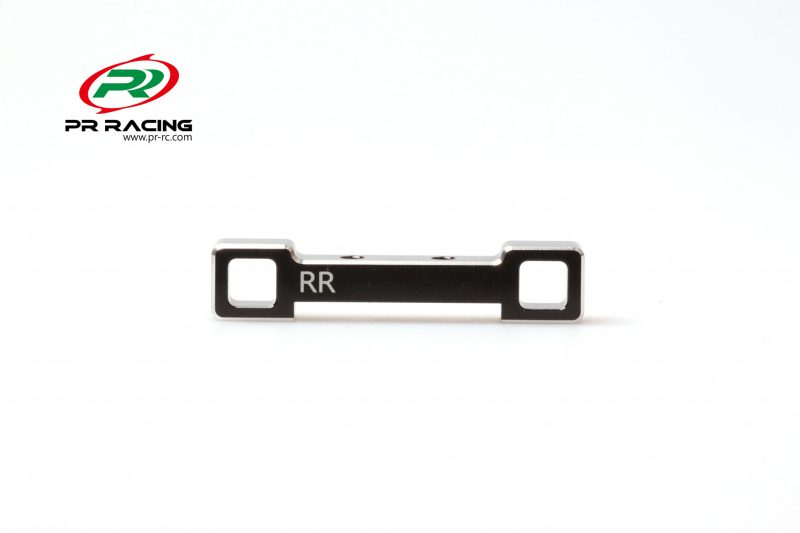

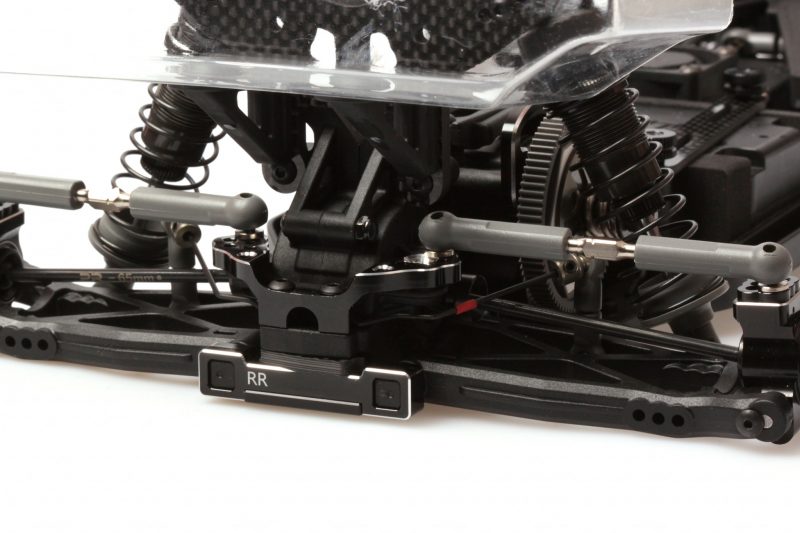

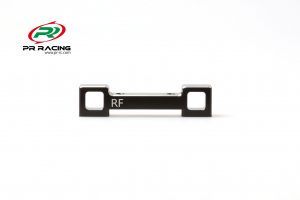

• New RR and RF Hangers with Pills

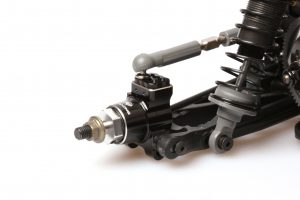

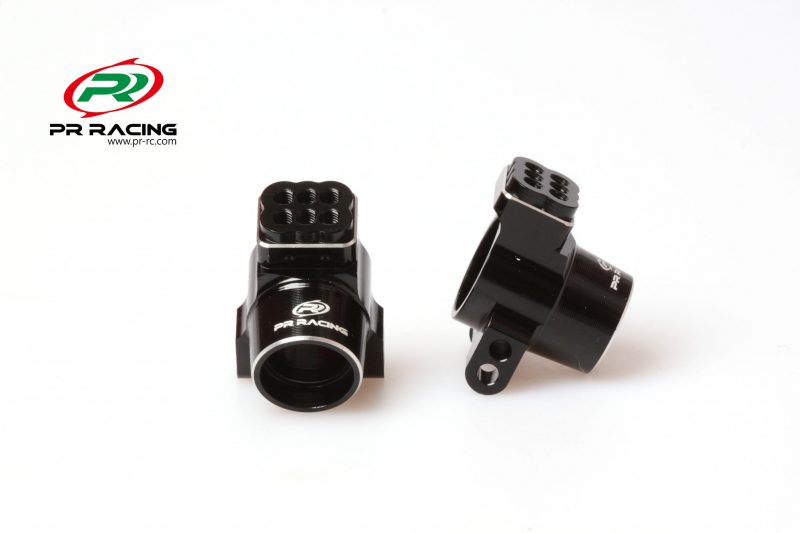

• New CNC Aluminum Rear hubs

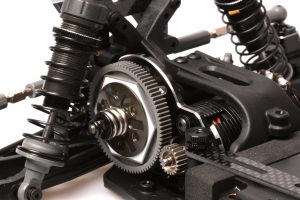

• New Low Mount (-2mm) Motor Plate with Spur Protector

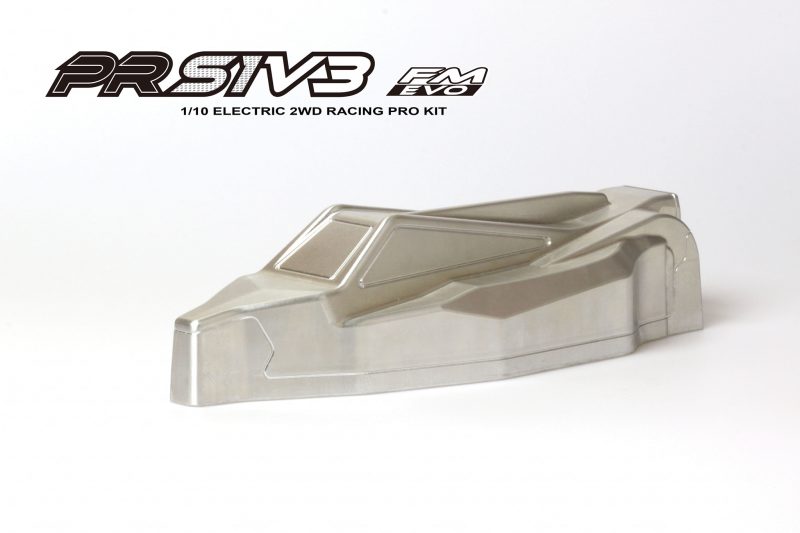

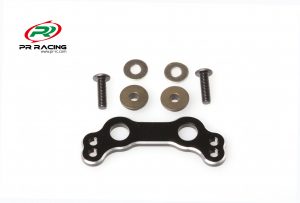

• New Ackerman Plate • High Tensile Turnbuckles – Ultra Strong • New Sleek Body
• New Grey Rod Ends and Shock Absorber Plastics

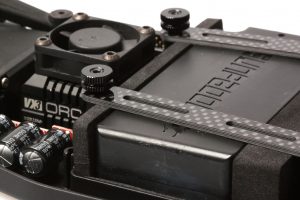

• New Foam Battery Spacers • New ZZ Ball Bearings

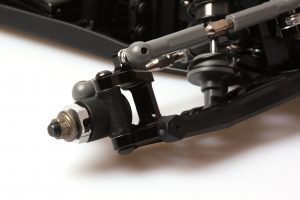

• Steel front Axles
• Aluminum +5mm, 3 Degree Front Kick Up Block

In addition to all the updates the car is still packed with lots of items normally considered to be option parts:
• CNC Alloy Servo Mounts
• 4 Degree Alloy Caster Blocks
• Front Camber Plates

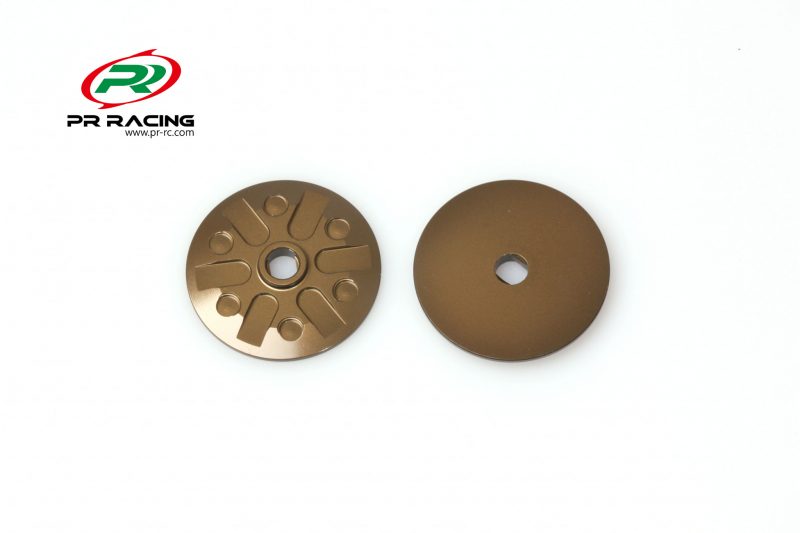

• Vented Slipper Plates
• Sway Bar Set
• 34 Tooth Alloy Idler Gear

Standard Features:

• 12.8mm big bore oil fill in shock
• 3 gears deploy in gear case
• Metal gear differential
• Dual pad slipper mounting
• Complete sealed gear bearing
• 12mm Hex fit wheels
• Metric socket screw (Hex Screws)

Specification:
• Length: 411mm
• Width: 250mm
• Height: 145mm
• Wheelbase: 280mm
• Front track: 248mm
• Rear track: 248mm
• Weight:1480-1510 g

Items required to complete:
• Metric 1.5mm, 2.0mm hex tools
• Metric 5.5mm, 7.0mm 8.0mm Nut Driver
• 2 Channel Surface Radio System (Minimum)
• 1/10 ESC, Motor & Pinion Gear
• High Speed Servo
• 2S LiPo Shorty Battery & Compatible Lipo Charger
• Polycarbonate Paint for Bodies
• 1/10 Buggy Tires, inserts and CA Glue
