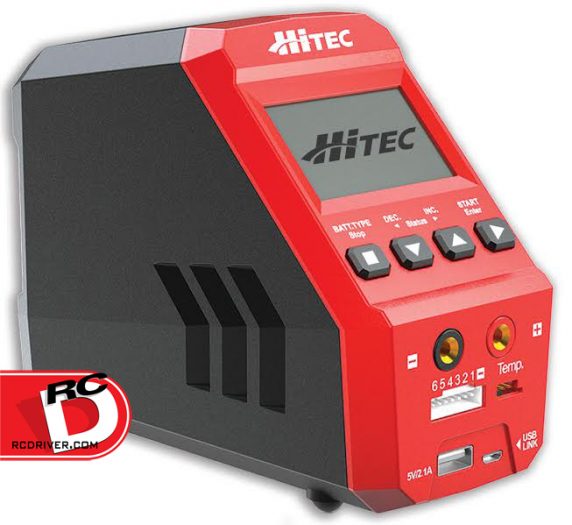

RDX1 – AC/DC Battery Charger/Discharger from Hitec

Hitec - RDX1  AC-DC Charger-Discharger copy

The RDX1 is an AC/DC ultra-performance microprocessor-controlled battery charger/discharger with management features suitable for all popular chemistries. Its sleek tower design allows easy front-loading plug-in convenience of balancing and temperature sensor ports, a USB link and USB 5VDC 2.1 amps and 4mm battery sockets. Deluxe features include a 3.2-inch easy-to-read LCD screen and Charge Master software which allows the unparalleled ability to operate the RDX1 through the computer. This compact, 60-watt wonder brings integrated balancing, convenience and ease to all your charging operations.\


Optimized Operating Software
10 Battery Memory
Internal Lithium Battery Balancer
Multiple Lithium Battery Charge Modes
Works with Hitec’s Charge Master Software
LiPo Battery Meter
Slim In-line Design Saves Valuable Space
Charging Specifications:

AC Input Voltage: 100-240V
DC Input: 11-18V
Charge Power: 60W
Charge Current Range: 0.1 – 6.0A
Max. Discharge Power: 5W
Discharge Current Range: 0.1 – 2.0A
Balancing Port Current Drain: 200MA/Cell
NiCd/NiMH Battery Cell Count: 1-15 Cells
LiPo/LiHV/LiFe/LiIon Cell Count: 1 – 6 Cells
Pb Battery Voltage: 2 – 20V
Net Weight: 470g
Dimensions: 159 x 72.5 x 123mm

Click here for more info –
