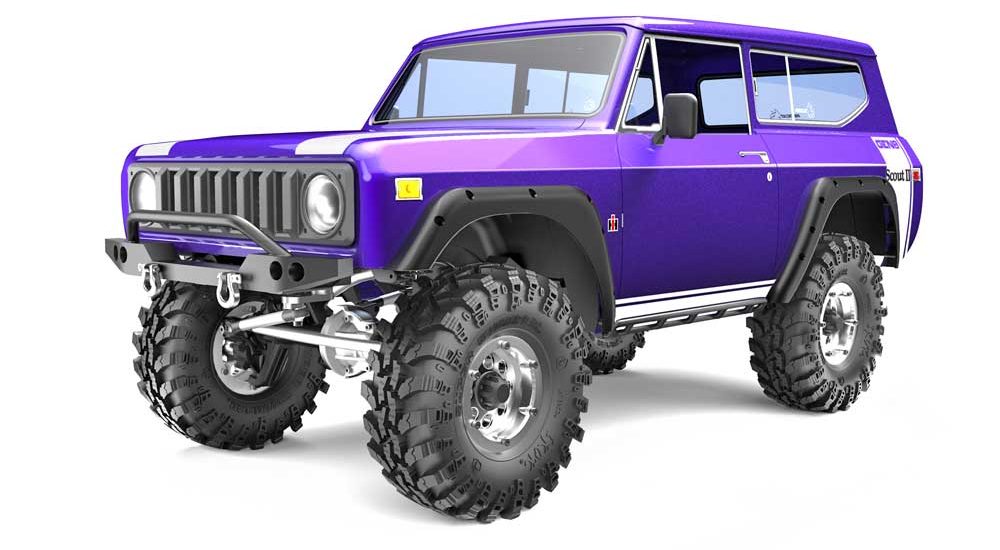

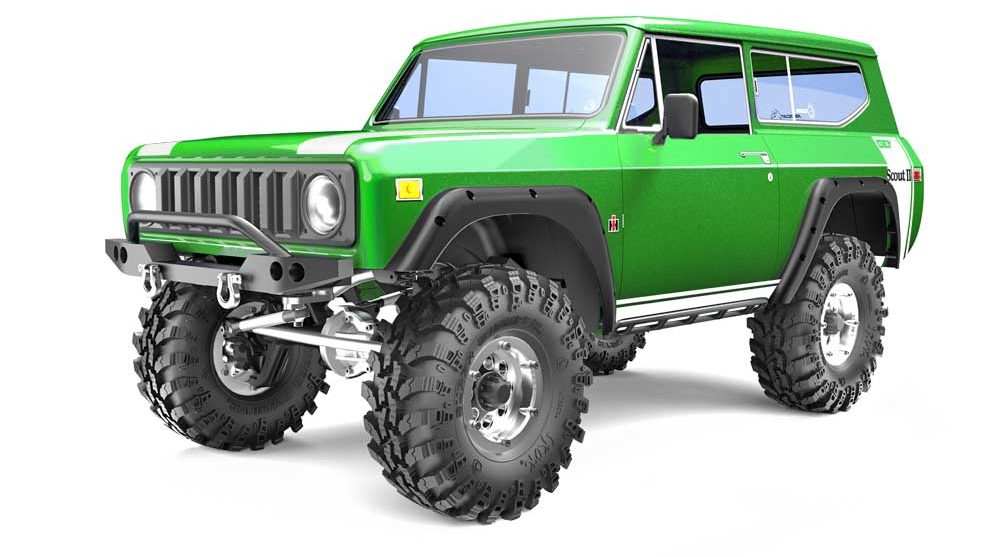

Redcat Gen8 V2 International Scout II RTR crawler

If you have been waiting to buy a Redcat crawler, your efforts are now being rewarded. The popular Redcat Gen8 ready-to-run crawler has been upgraded, and is being released as the Redcat Gen8 V2 International Scout II RTR crawler.

Redcat Gen8 V2 International Scout II RTR crawler

The Gen8 V2 upgrades include heavy duty axles, heavy duty portal gears, newly designed heavy duty axle housings, a flat skid plate, 25kg metal gear servo and two new body colors with clear windows.

The Gen8 V2 International Scout II professional rock crawler includes C-channel frame rails, low center of gravity battery tray, centrally mounted divorced transfer case, lockable slipper clutch, portal axles with metal gear covers, MOD-1 gears, machined aluminum spools, front CVAs, 32 rubber-sealed ball bearings, threaded aluminum shocks, 47-degree steering blocks with proper Ackerman, Panhard bar, LED-ready bumpers, winch-ready front bumper, and frame mounted floor pans.

The Gen8 V2 features a highly detailed fully licensed International Scout II body, hard plastic grill, plastic folding mirrors, molded inner and outer fenders, shackle mount front bumper, receiver hitch ready rear bumper, and plastic rock sliders. The Gen8 V2’s body and bumpers are ready to have LED lights installed.

True to scale, licensed Interco IROK Super Swamper tires are mounted to functional beadlock wheels. Each wheel uses inner and outer beadlock rings for maximum strength and tire holding capability. This makes it easy to change out the foam tire inserts to suit each course and driving style.

Redcat Gen8 V2 International Scout II RTR crawlerPortal axles provide more ground clearance without needing bigger tires. On the GEN8 V2, much of the gear reduction happens inside the portal axles, which means less chassis torque twist than traditional axle shaft driven rock crawlers. The portal axles provide 54.5mm of ground clearance and include metal gear covers, metal wheel hexes, and CNC machined spools.

The Gen8 V2 uses an innovative dual design slipper clutch, which allows the driver to set the slipper clutch, or completely lock it out. The GEN8 V2 accepts a wide range of pinion gears from 9T all the way up to 23T and includes a 32P spur gear. This allows a gearing ratio of 28.12 to 71.85. A sealed pinion and spur keeps the gears safe from rocks and debris. Heavy duty Mod 1 gears can be found in the transmission, transfer case, and portal axles. The Redcat Racing GEN8 features a front mounted motor and a divorced transfer case for competition inspired weight distribution.

VIDEO

SPECIFICATIONS

Gen8-V2: Fully Assembled
Motor/ESC: 550 Brushed Motor & LIPO Ready Crawler ESC
Steering Servo: 25KG Metal Gear Waterproof Servo
Radio:2.4GHz Radio System
Chassis: 1.5mm Thick Steel C-Channel Frame Rails
Drive System: 4-Wheel-Drive, Front Mounted Motor
Transmission: Single Speed with Lockable Slipper Clutch
Transfer Case: Divorced, Centrally Mounted
Length: 571mm Stock
Wheelbase: 324mm Stock (312-336mm Adjustable)
Ground clearance: 80mm stock
Suspension: 4-Link Rear and 3-Link Front with Panhard Bar
Shocks: 95mm Adjustable Coilover Threaded Aluminum Body
Axles: Portal Axles with CNC aluminum spools, 6mm Solid Rear Axle Shafts and CVA Front Axle
Wheels: 1.9in with Beadlocks
Tires: Fully Licensed Irok Super Swamper tires

NEEDED TO COMPLETE

  • Battery and Charger
  • AA Batteries for Transmitter

For more information, visit: REDCAT
