More D-Series Servos from Hitec

More D-Series Servos and More from Hitec

Hitec is excited to announce the addition of five hobby servos to our advanced, popular D-Series group. The programmable, digital D89MW, D145SW, D485HW, D646WP and D777MG offer incredible performance and precision in five distinct sizes all with 32-bit high resolution, ultra-response technology and wide voltage operation. The mighty micro-sized D89MW delivers solid power with a coreless motor. The slim wing D145SW has heavy-duty, steel gears, providing instant torque and holding power for slim aircraft and glider wings. Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs. IP-67 rated with D-Series enhanced technology, the D646WP is the perfect answer to its digital predecessor the HS-5646WP. Our new low profile D777MG servos has evolved directly from our popular metal gear HS-7775MG and HS-8775MG. Look to Hitec’s D-Series when choosing your perfect servo!

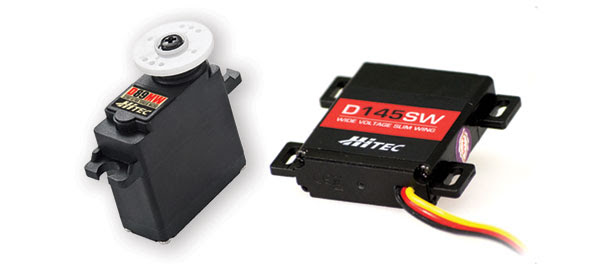

D-Series

D-Series Premium Servos – New
D89MW – Stock# 36089 – ESP: $62.99 | D145SW – Stock# 36145 – ESP: $59.99

Performance Specifications D89MW D145SW
Operating Voltage Range (Volts DC) 4.8V ~ 7.4V 4.8V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.11 0.21 ~ 0.14
Maximum Torque Range (oz. / in.) 74 ~ 118 54 ~ 83
Maximum Torque Range (kg. / cm.) 5.3 ~ 8.5 3.9 ~ 6.0
Physical Specifications D89MW D145SW
Dimensions (Inches / Millimeters) 1.14 x 0.51 x 1.18 /
29.0 x 13.0 x 30.0
1.18 x 0.39 x 1.45 /
30.0 x 10.0 x 37.0
Weight (Ounces / Grams) 0.88 / 25.0 0.84 / 24.0
Circuit Type 32-bit
Programmable Digital
32-bit
Programmable Digital
Bearing Type Dual Ball Bearing Dual Ball Bearing

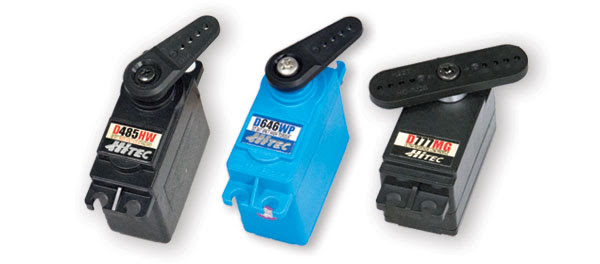

3-D-Series

D-Series Premium Servos – Replacement
D485HW – Stock# 36485 – ESP: $16.99 | D646WP – Stock# 36646 – ESP: $54.99
D777MG – Stock# 36777 – ESP: $74.99

Performance Specifications D485HW D646WP D777MG
Operating Voltage Range (Volts DC) 4.8V ~ 7.4V 4.8V ~ 7.4V 4.8V ~ 6.0V
Speed (Second @ 60°) 0.20 ~ 0.15 0.28 ~ 0.17 0.09 ~ 0.07
Maximum Torque Range (oz. / in.) 67 ~ 103 115 ~ 180 72 ~ 90
Maximum Torque Range (kg. / cm.) 4.8 ~ 7.4 8.3 ~ 12.9 5.2 ~ 6.5
Physical Specifications D485HW D646WP D777MG
Dimensions (Inches / Millimeters) 1.57 x 0.78 x 1.49 /
29.0 x 13.0 x 30.0
1.65 x 0.83 x 1.57 /
40.6 X 19.8 X 37.8
1.59 x 0.82 x 1.01 /
40.4 x 21.0 x 25.4
Weight (Ounces / Grams) 1.59 / 45.0 2.10 / 57.0 1.80 / 45.0
Circuit Type 32-bit
Programmable Digital
32-bit
Programmable Digital
32-bit
Programmable Digital
Bearing Type Top Ball Bearing Dual Ball Bearing Dual Ball Bearing
