Futaba 4PX Radio System – Get the details here!!

FPT4PX__4

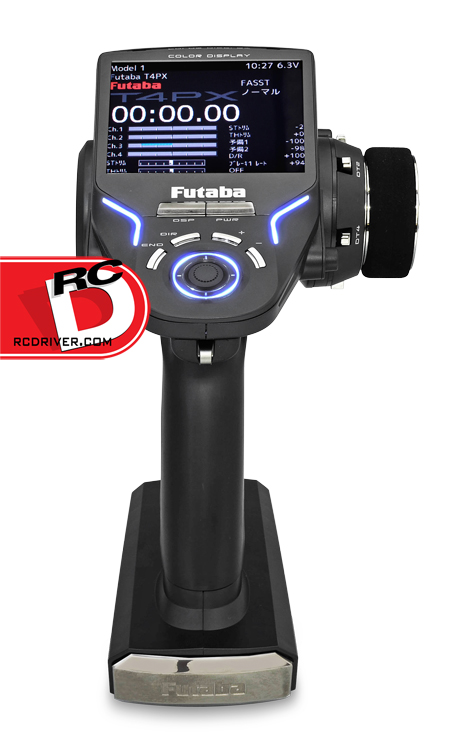

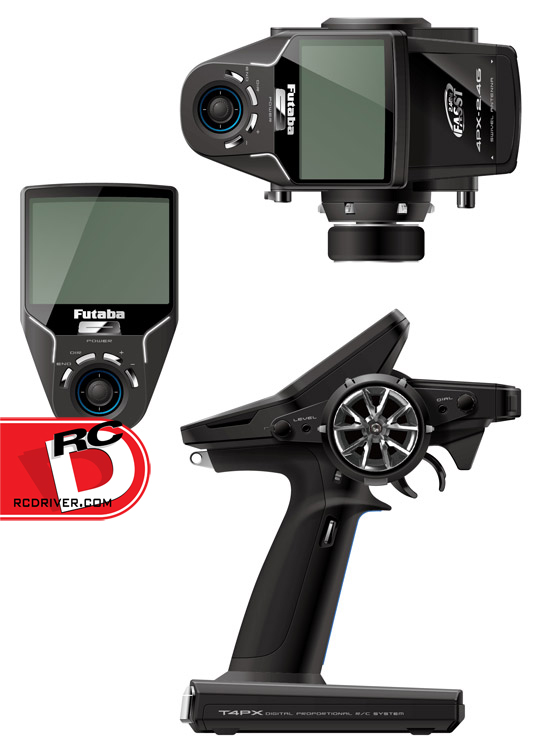

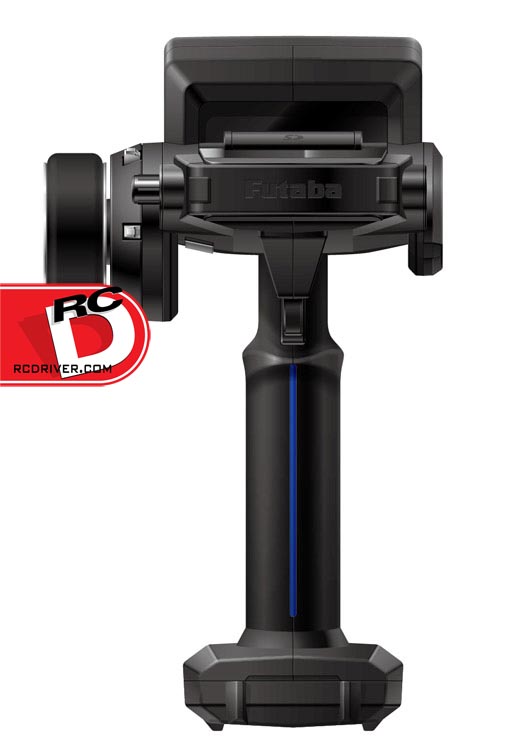

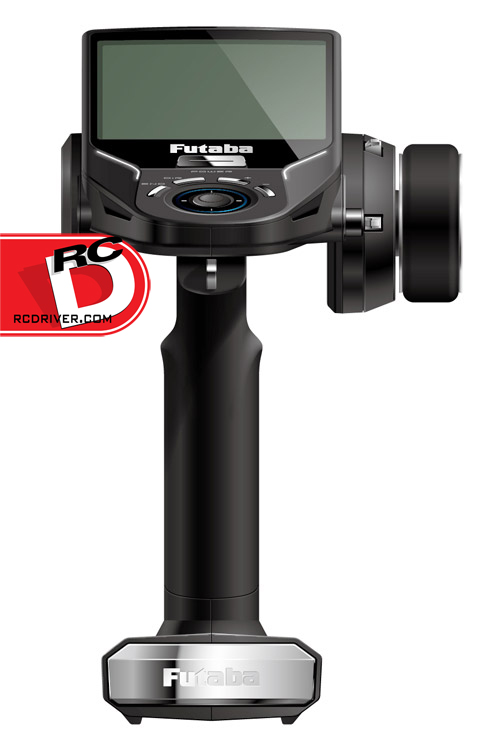

The 4PX from Futaba is their next generation of top-of-the-line radio system. Packed with features, it is lightning fast with the response of T-FHSS system in 4PX is optimized and is 30 percent faster than 4PKSR, can be used with 4PX: R304SB, R304SB-E, R614FS, R614FF-E, R2104GF, R204GF-E and R203GF receivers, is 15 percent lighter than its predecessor and is equipped with telemetry voice output. The telemetry features can be used without delay in the response and much more.

  • The design of the 4PX is completely changed from the 4PK series
  • Low steering position contributes to low center of gravity
  • The weight is 15g lighter than 4PKSR
  • An aluminum frame is inserted in the body to strengthen the structure
  • All-in-one transmitter antenna (the angle can be changed)
  • Transmitter weight: 555 g without batteries, 562 g with alkaline
  • The response of T-FHSS system in 4PX is optimized and 30% faster than 4PKSR
  • Telemetry features can be used without delay in the response.
  • 2.4GHz system – T-FHSS, S-FHSS & FASST-C2
  • Following receivers can be used with 4PX: R304SB, R304SB-E, R614FS, R614FF-E, R2104GF, R204GF-E & R203GF
  • Good-quality QVGA 3.5 inch TFT color LCD brings perfect visibility under sunshine
  • Sensor slot function (telemetry channel) is equipped
  • Up to 31 sensors can be utilized
  • Equipped with telemetry voice output
  • Mixing function: 5 program mixing, 4 WS mixing & dual ESC mixing
  • 40 model memory
  • Left-handed supported
  • APA Handle extension supported
  • 25mm extension adapter is equipped
  • Push-type button power switch
  • Auto-power off function
  • Vibration motor
  • Earphone jack
  • New high-durability stick potentiometers
  • Communication port (for setting ESC, servos, sensors)
  • microSD card slot (SDHC)
  • Updateable software
  • High-point detectable throttle trigger
  • More crisp feeling at high-point on the detectable throttle trigger, a driver-recognized a high-point by touch
  • Throttle trigger is movable with a 7mm range (same as 4PKSR, 4PLS)
  • Throttle trigger shape is optimized as well as stiffness is increased
  • Combination steering rubber
  • Steering angles can be selected from 32 degrees and 43 degrees and are selectable on each side (same as 4PKSR)
  • A driver can find the best directivity by the all-in-one antenna
  • A switch that can be touched by a driver’s body is equipped on the bottom of the transmitter edge
  • A LED which shows telemetry “Disabled” is equipped (this function is intended for a race which prohibits the telemetry function)
  • Two different types of throttle triggers are included (can be easily changed by a screw)
  • Two different size of grips (option)
  • Carbon handle grip (option)

Drive on over to www.futaba-rc.com for more info.
