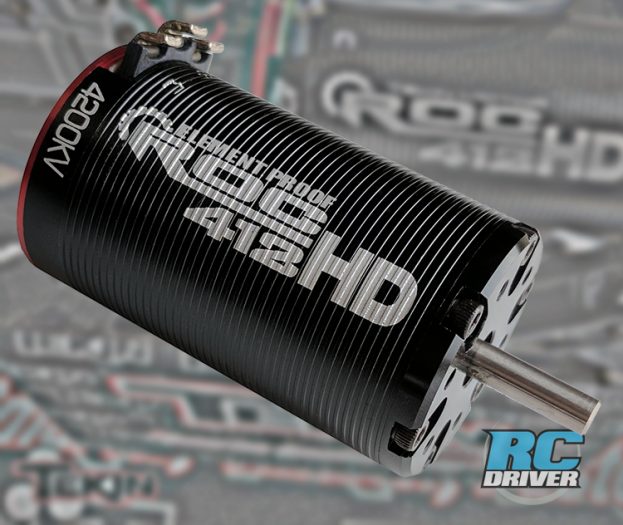

Power For The Trail – Tekin Element Proof ROC412 HD Brushless Motor

We are certainly Tekin fans at RC Driver and we are excited to see their latest brushless motor offering specifically designed for the demands of the trail, rock racer and crawling crowd that doesn’t hold back when they drive. The new motor is the Tekin Element Proof ROC412 HD and it offers protection from the elements to give you the power to take on the trails or track without fear of water, mud or snow! Designed for heavier trail or rock racing rigs, the ROC412 HD delivers more torque and more power on demand. The HD lineup offers the same trusted kV ratings so you can maintain desired speed and input voltage but the longer design offers more grunt when you need it. Using a 4-pole 12-slot motor design based off the award-winning T8 Series motors, the ROC412 HD harnesses the benefits of brushless efficiency and extreme amounts of torque to stay out on the trail longer with more power on tap. Couple the ROC412 HD with an RX4 Speed Control for the smoothest crawling system available! Crawling, Rock Racing precision, protection from the Elements and raw power are at your disposal!

Tekin Element Proof ROC412 HD


Input Voltage: 2S – ALL
3S – 3100kV / 2300kV / 1800kV
4S – 2300kV / 1800kV / 1200kV / 500kV
Weight: 221g / 7.8oz
Shaft Dimensions: 5mm x 15.3mm / .196″ x .60″
Motor Diameter: 36mm / 1.41″
Motor Length: 62.5mm / 2.5″
Bearing Dimensions: Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm ALL
Rebuildable: Yes


Tekin Element Proof ROC412 HD FEATURES

Element Proof design tackles Water, Mud and Snow*
18.5mm Rotor provides more Torque and Braking Power
5mm High-Strength Pinion Shaft
​ 550 Length Can provides improved heat dissipation
​ 4 Pole 12 Slot Crawler Motor Design
​ CNC Machined 6061 T6 Billet Aluminum Heatsink Can
​ Crawler, Rock Race and Trail Rig Specific
​ Neodymium Sintered Magnets
​ Rebuildable Design
​ High Purity Copper Windings Maximizes Efficiency
​ Precision Engineered for Maximum Energy Conversion
​ Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems
​ High RPM ABEC5 Oversized Bearings

* Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged. Included dielectric grease must be used on the sensor and fan port connections to protect them from shorting.

** The ROC412 HD is not intended for operation while submerged in liquid.
