Xpress Arrow AT1 1/10-scale Competition Touring Car Kit

The latest from the crew at Xpress is the all new Xpress Arrow AT1 1/10-scale competition touring car kit. The Arrow series is a competition grade shaft driven 1/10-scale touring car line and the first release is the AT1 shown here.

Xpress Arrow AT1 1/10-scale Competition Touring Car Kit

OVERVIEW

A new series of shaft driven 1/10 touring cars, the Arrow series takes the best from the Execute series of touring cars and incorporates it in a shaft driven system. Sporting floating gearboxes to include more chassis flex. Specially designed motor mount makes adjusting gear mesh a breeze. Also bringing various modern designs that enables this touring car to be competitive straight from the box.

Xpress Arrow AT1 1/10-scale Competition Touring Car Kit
A view of the rear of the car, you will be able to see the integrated fan mount which bolts onto the motor mount.
Xpress Arrow AT1 1/10-scale Competition Touring Car Kit
View of the bottom of the car. To eliminate torque steer, the drivetrain is isolated from the chassis plate so that it can flex on it’s own accord.
Xpress Arrow AT1 1/10-scale Competition Touring Car Kit
A view of the drive train assembly which you can remove from the chassis completely. Near the spur gear section is a piece of aluminum mounting.
Xpress Arrow AT1 1/10-scale Competition Touring Car Kit

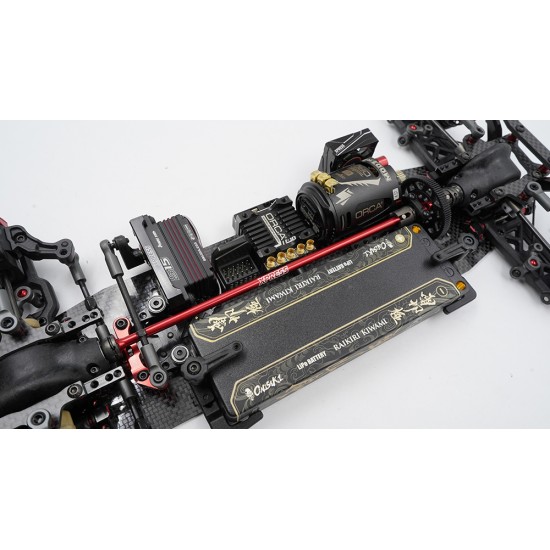

Removing the topdeck you will be able to see details of the chassis and the universal axle mounts that were chose to provide smoothest power delivery through the shaft. Included is the quick change insert steering bridge to quickly change ackermann settings.

VIDEO

FEATURES

  • 4WD Shaft Drive Floating Gear Box System
  • Sealed Transmission Gear Box
  • Front Spool & Rear Gear Differential Unit
  • Front & Rear Aluminum Propeller Shaft
  • Low CG Roll Bar Design
  • Low CG Front & Rear Aluminum Shock Tower
  • Low Profile Long Travel Aluminum Short Shocks
  • Aluminum Insert Adjusted Ackermann Steering Bridge
  • Front Spring Steel Double Joint Universal Shaft
  • Full Low Friction Drive Gears
  • Full Aluminum Suspension Mount
  • 2.25mm Graphite Main Chassis
  • 2.0mm Graphite Top Deck
  • Full Turnbuckle Linkage
  • Full Ball Bearing Set
  • Vertical & Horizontal Rear Body Post Included

For more information, visit: XPRESS
