Team Associated Factory Team T4.2 Build – Electronics

The Build – Part 6
The next step involves installing the electronic gear. As mentioned before in the build Table of Contents, we’ll be using a Team Associated XP DS131 steering servo, LRP Flow brushless ESC, Reedy Sonic 17.5 brushless motor and a Reedy WolfPack LiPo battery. Vintage car with current technology…a winning combo!

Build Notes:
No real tricks involved with this step other than making sure you solder the wires onto the motor in the correct sequence; A wire to A tab on the motor, B wire to B tab, etc.

Team Associated Factory Team T4.2 Build - Step 102
Team Associated Factory Team T4.2 Build – Step 102
First we’ll install the XP DS1313 servo. AE has included different servo horns for a variety of servos, so make sure you choose the one that is designed for your servo. Fit the ballend to the servo horn as shown, then install the blue expansion ring. Finally, attach the servo horn assembly to your servo, making sure the servo horn is just slightly off 90 degrees (see manual). You’ll be using the screw that came with your servo to secure the horn.

Team Associated Factory Team T4.2 Build - Step 103
Team Associated Factory Team T4.2 Build – Step 103

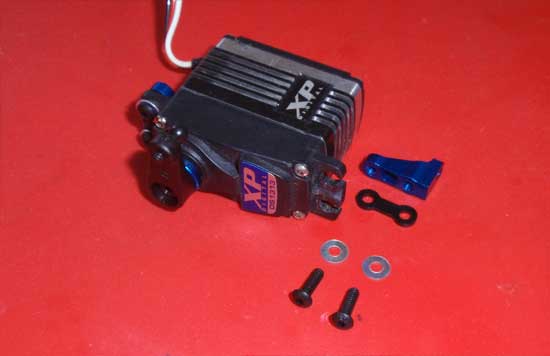

Attach the servo mounts to the servo as shown, but do not tighten the screws yet. You can use the Servo Chart on page 17 of the manual to figure out which spacers to use.

Team Associated Factory Team T4.2 Build - Step 104
Team Associated Factory Team T4.2 Build – Step 104

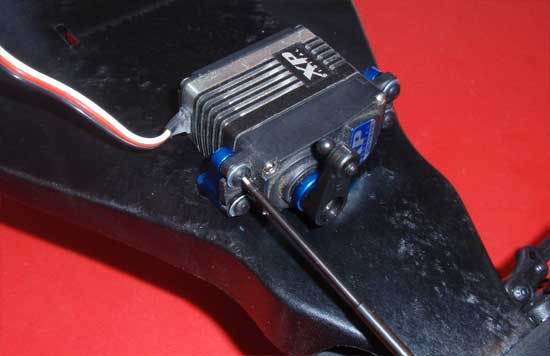

If you tightened down the servo mounts in step 103, the holes for mounting to the chassis may not line up when you install the servo assembly into the chassis. If you loosen them up and re-install, you’ll see that you won’t be able to tighten them once it’s in the chassis. The fix? Simply mount the servo to the BOTTOM of the chassis first! Line up the holes in the chassis, insert the 4-40×3/8 screws from the other side and snug down. Now tighten the servo mount screws. Remove the 2 screws attaching the assembly to the chassis, flip the servo to the inside of the chassis and secure with the 2 4-40 screws again. The holes will line up perfectly!

Team Associated Factory Team T4.2 Build - Step 105
Team Associated Factory Team T4.2 Build – Step 105

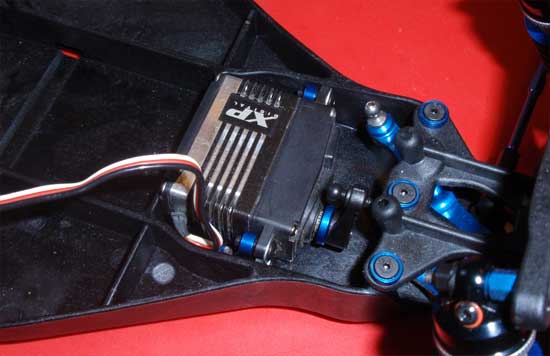

See, a perfect fit without driving you crazy trying to tighten up the servo mount screws.

Team Associated Factory Team T4.2 Build - Step 106
Team Associated Factory Team T4.2 Build – Step 106

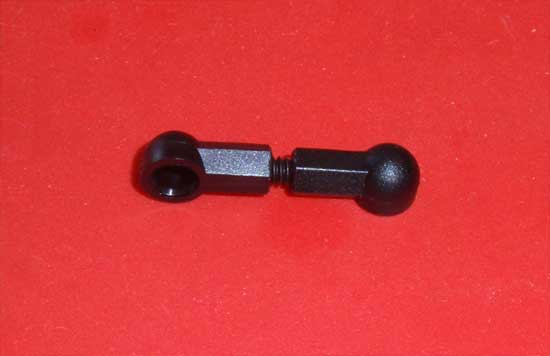

Build the servo link assembly per the instructions…

Team Associated Factory Team T4.2 Build - Step 107
Team Associated Factory Team T4.2 Build – Step 107

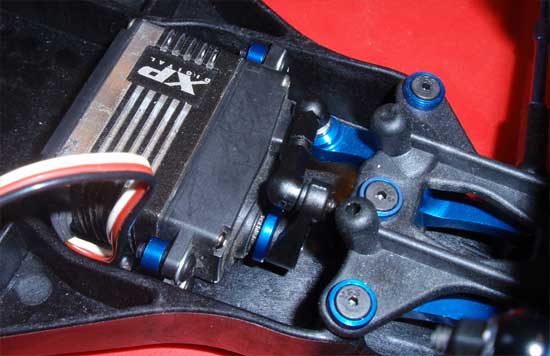

…and pop into place between the servo horn and the steering system.

Team Associated Factory Team T4.2 Build - Step 108
Team Associated Factory Team T4.2 Build – Step 108

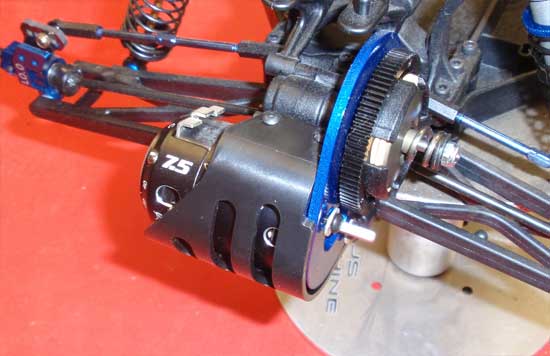

Slide your motor into place at attach to the motor mount using the M3 screws. Don’t forget the washers. Do not tighten all the way down yet.

Team Associated Factory Team T4.2 Build - Step 109
Team Associated Factory Team T4.2 Build – Step 109

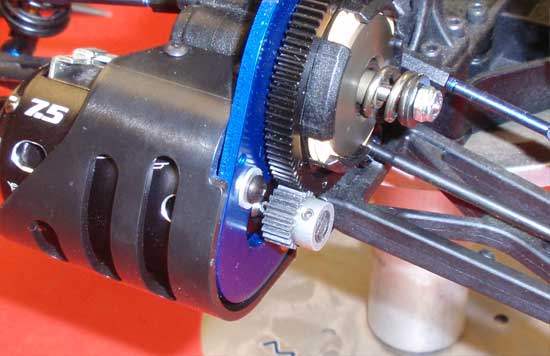

Slide your pinion on the motor shaft and align it with the spur gear. Make sure there is complete tooth contact, then tighten down the pinion’s setscrew to secure. You’ll also want to set the gear mesh at this point. Page 18 in the manual has good instructions on how to do this.

Team Associated Factory Team T4.2 Build - Step 110
Team Associated Factory Team T4.2 Build – Step 110

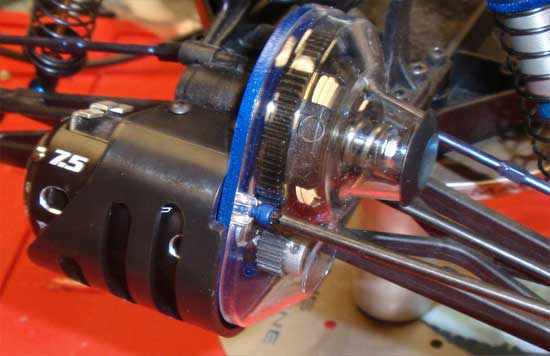

Attach the gear cover to the motor mount as shown and pop the dust cover button into place. I lost the 2 4-40 screws used in this step but thankfully have some blue, Factory Team ones to replace them.

Team Associated Factory Team T4.2 Build - Step 111
Team Associated Factory Team T4.2 Build – Step 111

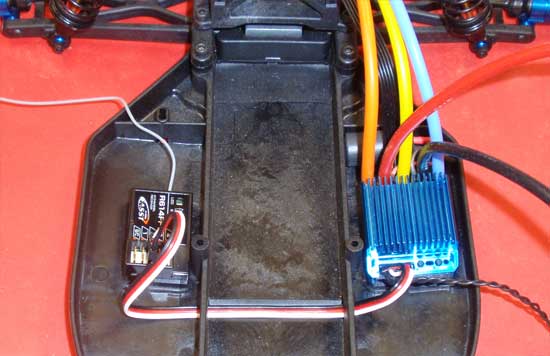

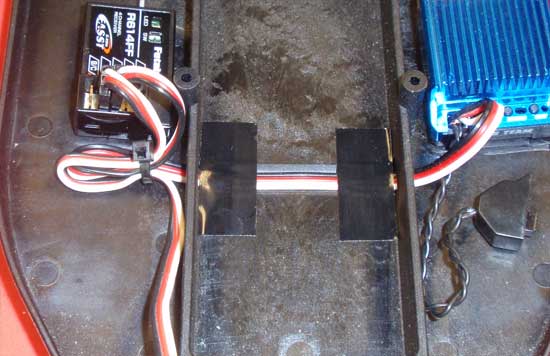

Tape your receiver and ESC into place as shown, slightly behind the channel running across the middle of the chassis. Try and get them as close to the center as possible for better weight distribution. Feed the ESC power lead through the slits in the chassis, resting it in the channel. Plug it in to the receiver.

Team Associated Factory Team T4.2 Build - Step 112
Team Associated Factory Team T4.2 Build – Step 112
This ESC power lead will move around a bit, so I usually tape it into place to secure it. This is also a good time to plug the servo lead into the receiver and mount the ESC switch.

Team Associated Factory Team T4.2 Build - Step 113
Team Associated Factory Team T4.2 Build – Step 113

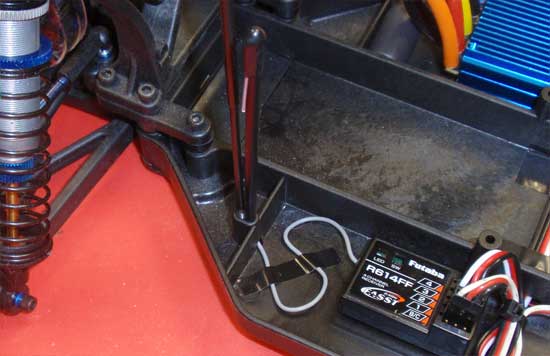

Run the receiver antenna down through the chassis and back up through the hole. Feed it into the antenna tube and press the antenna tube into the chassis. Secure with the 5-40 setscrew. I use a little tape to keep the receiver wire from flopping around as well. Just be sure not to crimp the wire.

Team Associated Factory Team T4.2 Build - Step 114
Team Associated Factory Team T4.2 Build – Step 114

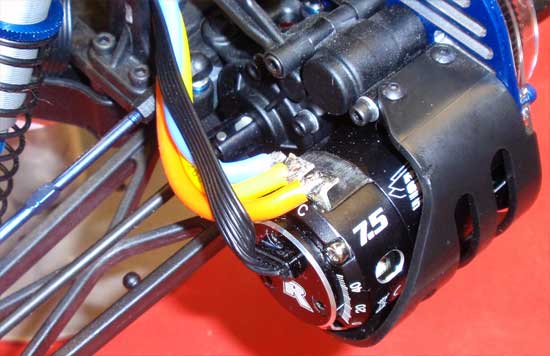

Feed the motor wires to the motor (through the shock tower) and solder into place. Remember, A wire to the A tab, B wire to the B tab and C wire to the C tab. Feed the sensor wire through as well and press into the motor.

Team Associated Factory Team T4.2 Build - Step 115
Team Associated Factory Team T4.2 Build – Step 115

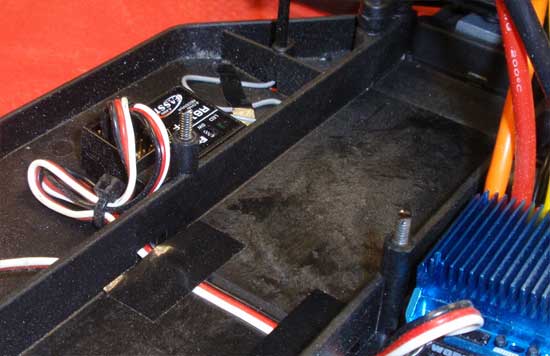

Screw the 4-40 setscrews into the battery mount holes as shown.

Team Associated Factory Team T4.2 Build - Step 116
Team Associated Factory Team T4.2 Build – Step 116

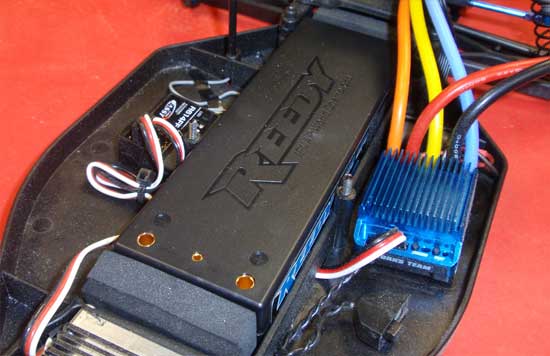

Place the battery into the truck. Team Associated has supplied 4 foam pads (2 thick, 2 thin) so you can space the battery forward or back for better weight distribution. Since I’m not 100% sure how I want them to be yet, I placed them per the manual; 1 thick/1 thin up front, 1 thick/1 thin in the rear.

Team Associated Factory Team T4.2 Build - Step 117
Team Associated Factory Team T4.2 Build – Step 117

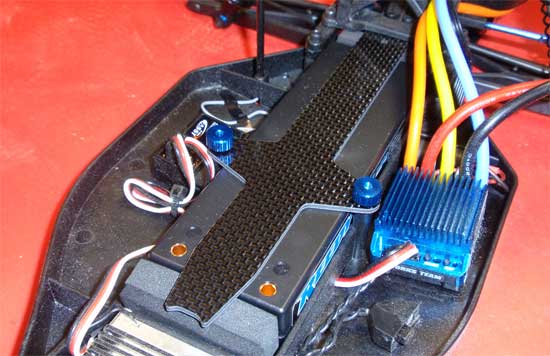

Slide the rear of the carbon fiber battery strap underneath the rear tower and drop into place (the holes in the strap should fit over the 4-40 setscrews). Secure the strap with the 2 Factory Team blue thumbscrews.

Part 7 – Attaching the body, wheels and tires.
